The 3:1 Z-Drag: How a Basic Pulley System Multiplies Human Force During Crevasse Rescue

On the upper slopes of a glacier, when a snow bridge collapses and the climbing rope suddenly goes taut, the remaining team members face an immediate physics problem. They must halt the fall of a 200-pound partner into a vertical ice slot, secure the load, and then haul that weight back to the surface using only their own body mass and a handful of aluminum hardware.[1]

The universal solution to this problem is the Z-drag, a mechanical advantage system that folds the climbing rope into a 'Z' shape to multiply human pulling force. While the technique is taught in every introductory mountaineering course, its execution under the stress of a live crevasse fall requires precise sequencing and an understanding of how friction degrades theoretical physics.[1][5]

The system relies on a concept known as a 3:1 mechanical advantage. In a frictionless vacuum, pulling one meter of rope through a 3:1 system lifts the load by one-third of a meter, but requires only one-third of the effort. For a single rescuer trying to extract a partner who is suspended in free space, this multiplication of force is the only way to overcome gravity.[3]

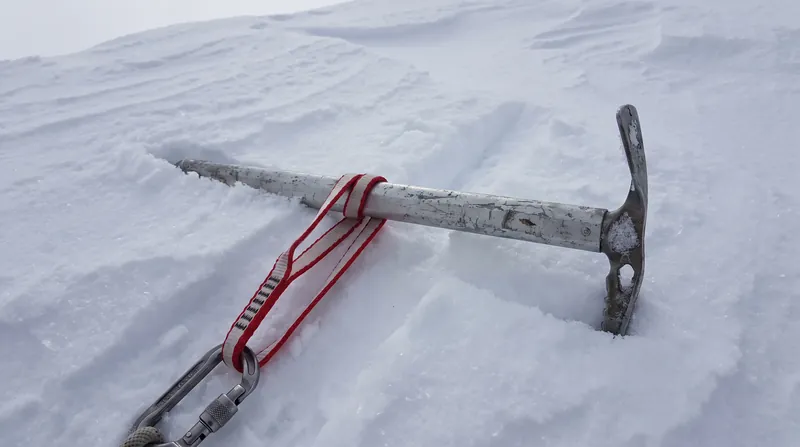

Setting up the Z-drag begins with the anchor. Once the fall is arrested, the surface climber must build a bombproof anchor—typically a T-trench utilizing an ice axe buried horizontally in the snow, or a series of ice screws if the surface is bare glacial ice. The load of the fallen climber is then transferred from the rescuer's harness directly to this anchor using a friction hitch, usually a Prusik cord.[1][2]

This initial Prusik serves as the progress-capture device. It grips the main climbing rope tightly when weighted, holding the fallen climber in place, but can be slid forward manually when the rope is unweighted. With the load secured, the rescuer is free to construct the hauling mechanism.[2][5]

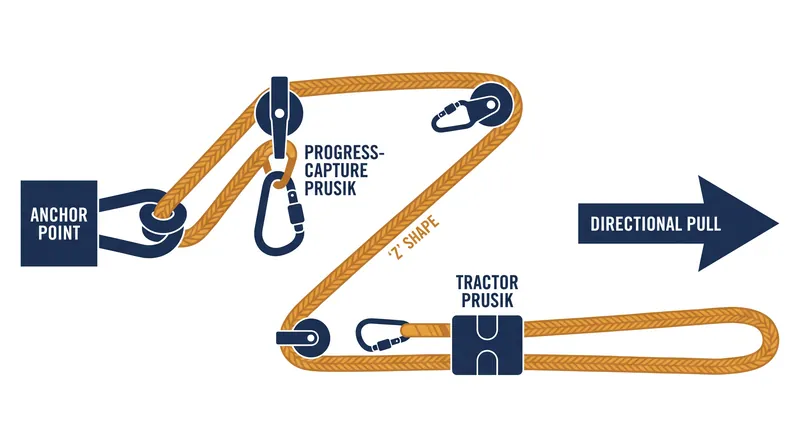

The rescuer attaches a second friction hitch—the tractor Prusik—to the rope extending down into the crevasse. A carabiner or pulley is clipped to this tractor Prusik. The loose end of the climbing rope is then brought up from the anchor, passed through this carabiner, and redirected back toward the anchor, forming the characteristic 'Z' shape.[5]

When the rescuer pulls on the final strand of rope, the tractor Prusik grips the main line and hauls it upward. As the rope moves, the progress-capture Prusik at the anchor slides along, holding the new position. If the rescuer needs to rest, they simply release the rope; the progress-capture hitch bites down, and the system resets.[2][3]

However, the theoretical 3:1 advantage rarely translates perfectly to the field. According to the 2023 Alpinesavvy guide on modern crevasse rescue techniques, friction is the primary enemy of the hauling system. Every time the rope turns sharply through a standard aluminum carabiner, energy is lost to heat and drag.[2]

"A theoretical 3:1 system often yields closer to a 2:1 mechanical advantage in the field due to friction at the pulleys," notes the Rope Rescue Training manual. If the rope has cut deeply into the snowy lip of the crevasse, the friction increases exponentially, sometimes making it impossible for a single rescuer to haul the load without adding further mechanical advantage or padding the lip with an ice axe shaft or backpack.[3]

To combat this friction, modern alpinists increasingly carry specialized micro-pulleys. Devices like the Petzl Micro Traxion combine a highly efficient ball-bearing pulley with a toothed cam that replaces the traditional Prusik cord. These devices can increase the hauling efficiency from roughly 60 percent with standard carabiners to over 90 percent.[2]

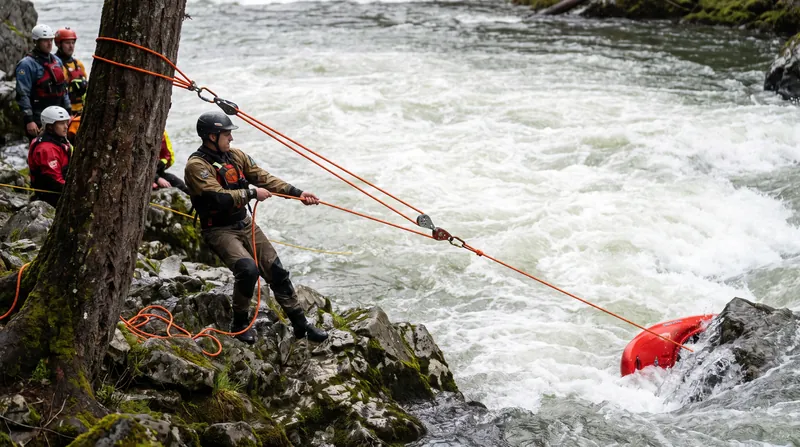

The utility of the Z-drag extends far beyond alpine environments. The exact same mechanical principles are utilized in swiftwater rescue to dislodge pinned kayaks or rafts. A Whitewater Rescue guide emphasizes that river guides must learn to set up a Z-drag system in under 60 seconds, as the dynamic force of moving water creates loads that far exceed a static human body.[4]

In the whitewater context, the anchors are typically stout trees or boulders rather than buried ice axes, and the ropes are static rather than dynamic, but the 'Z' configuration remains identical. The cross-disciplinary reliance on this specific system underscores its elegance: it requires minimal specialized gear and can be constructed from the standard equipment already on a rescuer's harness.[4][6]

Despite its ubiquity, the Z-drag is not a panacea. In a 2016 backcountry essentials video, EpicTV highlighted that the system requires a significant amount of available rope. Because the rope is folded back on itself twice, hauling a climber up 10 meters requires pulling 30 meters of rope through the system.[5]

If the crevasse fall consumes too much of the rope's length, the rescuer may not have enough slack to construct the 'Z'. In these scenarios, teams must pivot to alternative techniques, such as the drop-loop system, which provides a 2:1 advantage but requires less available rope, or they must rely on the fallen climber to ascend the rope themselves using friction hitches.[1][2]

The transition from theory to practice is where most rescues falter. Practicing the Z-drag in a warm park is vastly different from executing it in a whiteout at 4,000 meters, wearing thick gloves, with a partner suspended below. The Global Summit Guide on advanced glacier safety stresses that muscle memory is the only reliable tool when adrenaline spikes and cognitive function drops.[1]

For this reason, mountain guides drill the Z-drag sequence relentlessly. The goal is not just to understand the physics, but to eliminate the hesitation that occurs when transferring the load from the harness to the anchor—the most critical and dangerous moment in the entire sequence.[1][6]

As equipment continues to evolve, becoming lighter and more efficient, the fundamental geometry of the Z-drag remains unchanged. It stands as a testament to the enduring value of simple machines, proving that a basic understanding of physics can be the difference between a self-rescue and a recovery operation.[2][6]
