Rehashing Hot Keys Triggers Cascading Failures: Why Meta Routes Memcache Outages to Gutter Pools

When a web server requests a piece of data from a distributed cache and receives no response, the client library faces a split-second decision that determines whether the entire data center stays online. This step—the client-side timeout and subsequent retry routing—is the exact moment a localized hardware failure either remains contained or escalates into a catastrophic outage.[3]

In most distributed systems, the default behavior at this step is consistent rehashing. The client simply assumes the unresponsive server is dead, recalculates the hash of the requested key, and forwards the traffic to the next healthy machine in the ring.[1]

Meta’s infrastructure engineers discovered that at a massive scale, this standard rehashing approach is fundamentally dangerous. Instead of gracefully degrading, the system weaponizes its own redundancy.[1][3]

The outcome is determined here because caching workloads are rarely uniform. If the client routes the retry to a surviving node that is already operating near capacity, the sudden influx of traffic can push that second machine offline, triggering a domino effect.[1]

To break this cycle, Meta intercepts the retry at the client level and routes it to a completely isolated set of idle machines known as a Gutter pool. By refusing to rehash, the architecture sacrifices theoretical efficiency for absolute containment.[1][2]

The Danger of Consistent Rehashing

The vulnerability of standard rehashing stems from the existence of hot keys—individual pieces of data that draw a disproportionate amount of read traffic. In a social network, a viral post or a celebrity profile can generate millions of requests per second.[3]

According to Meta's seminal 2013 NSDI paper on scaling Memcache, a single hot key can account for up to 20 percent of a server's total request volume. This extreme skew means that traffic is never evenly distributed across the cluster.[1]

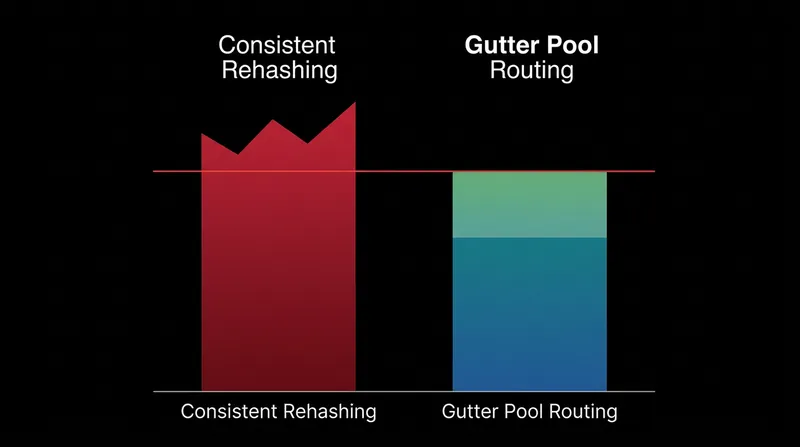

When a Memcache server holding a hot key experiences a hardware fault or a network partition, it drops offline. Under a traditional consistent hashing model, the client library immediately shifts that 20 percent traffic spike to the next available server.[1][3]

That surviving server is suddenly forced to handle its own baseline load plus the massive influx from the hot key. Because the hardware is already provisioned tightly to maximize efficiency, this sudden surge overloads the CPU or saturates the network interface.[3]

The second server then becomes unresponsive, prompting the client to rehash the traffic again. The hot key, along with the accumulated traffic of two failed nodes, moves to a third machine, crushing it instantly.[1][3]

Isolating the Blast Radius

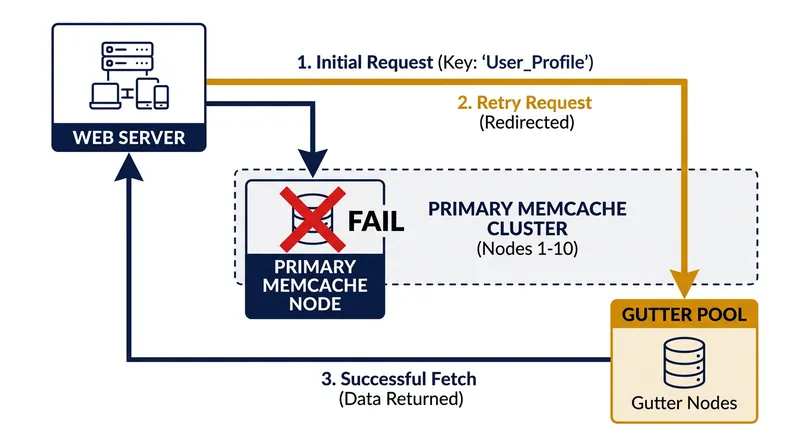

To prevent this domino effect, Meta engineered a mechanism that completely abandons the concept of redistributing failed traffic among healthy nodes. When a client receives no response, it does not rehash the key.[1]

Instead, the client routes the request to a dedicated cluster of backup machines called the Gutter pool. These servers sit entirely outside the primary hash ring and do nothing during normal operations.[1][2]

Gutter machines account for approximately one percent of the total Memcache servers within a given cluster. They act as a sacrificial buffer, absorbing the massive traffic spikes generated by hot keys when primary nodes fail.[1]

"The server that becomes responsible for this hot key might also become overloaded," the Meta engineering team noted in their architectural breakdown. "By shunting load to idle servers we limit that risk."[1]

If the request to the Gutter pool results in a cache miss—which is guaranteed on the first attempt, since Gutter machines are normally empty—the client queries the backend database directly.[1][3]

Managing Stale Data and TTLs

Once the client retrieves the missing data from the database, it inserts the key-value pair into the Gutter machine. Subsequent requests for that hot key are then served directly from the Gutter pool, shielding the database from the thundering herd.[1]

However, introducing a secondary caching layer creates a severe consistency problem. In the primary Memcache cluster, when a user updates their profile, the application explicitly deletes the old cached value to ensure subsequent reads fetch the fresh data.[3]

Delivering these invalidation messages to the Gutter pool would require complex distributed coordination, adding overhead to a system that is already operating under failure conditions. Meta opted to bypass invalidation entirely for Gutter machines.[1]

Instead, entries placed in the Gutter pool are assigned a very short Time-To-Live (TTL). They expire automatically after a brief window, forcing the client to re-fetch the data from the database if the primary server is still offline.[1][2]

This design trades strict data consistency for system survival. Users might see slightly stale data for a few seconds during an outage, but the backend databases are protected from the crushing load that would otherwise take the entire site offline.[1][3]

The Economics of Idle Hardware

Dedicating one percent of a massive server fleet to sit idle is an expensive proposition. In traditional enterprise IT, leaving hardware unutilized is often viewed as a failure of capacity planning or a waste of capital expenditure.[3]

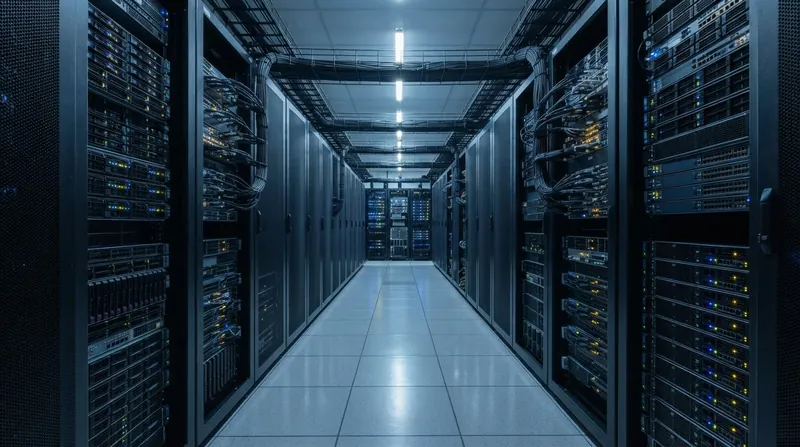

But at Meta's scale, where a single page load can trigger hundreds of individual Memcache requests, the economics shift dramatically. A single Memcache server might process 500,000 requests per second, making the cost of a cascading failure far outweigh the price of maintaining a small, idle buffer pool.[1]

Automated remediation systems can detect a failed node and provision a replacement, but this process typically takes several minutes. In a system handling billions of requests per second, a few minutes is an eternity.[1][3]

The Gutter pool bridges this critical gap. It absorbs the immediate shock of the failure, providing the automated systems enough time to safely replace the dead node without exposing the backend databases to raw traffic.[1]

In practice, Meta reported that this architecture reduces the rate of client-visible failures by 99 percent. When a server fails entirely, hit rates in the Gutter pool exceed 35 percent within four minutes, effectively neutralizing the threat of a traffic surge.[1]

Rethinking Distributed Redundancy

The Gutter architecture challenges a core assumption of modern distributed systems: that redundancy should always be active and load-balanced. Sometimes, the safest place to put emergency traffic is on hardware that is doing absolutely nothing else.[3]

While cloud providers heavily market auto-scaling and dynamic rehashing as the ultimate solutions to hardware failure, these mechanisms often lack the context to distinguish between a routine node loss and a viral traffic spike.[3]

Meta's approach acknowledges that the system cannot always predict which key will become hot, or when a node will fail. By isolating the retry mechanism, the architecture ensures that the unpredictability of user behavior cannot weaponize the infrastructure against itself.[1][3]
