Optical Soundhead Resolution at 90 Feet per Minute: Why Cinema Standardized on 24 Frames per Second

The studio accountant looks at a reel of 35mm film and sees a ticking meter of silver nitrate costs, arguing 16 frames per second satisfies the human eye. The Western Electric sound engineer looks at that same strip and sees a physical storage medium, arguing that speed turns the human voice into unintelligible garble.[2]

This is the fundamental disagreement that birthed modern cinema. In the late 1920s, the transition to synchronized sound forced a collision between the visual economy of the silent era and the physical demands of acoustic engineering.[4]

Neither side was entirely wrong. The eye can indeed perceive fluid motion at 16 frames per second, which is why silent films were routinely cranked at that speed. But optical audio requires physical space to store high-frequency waves, and slow-moving film simply ran out of room.[1][2]

The result was a compromise that dictated the look of every movie made for the next century. We do not watch films at 24 frames per second because it is the perfect visual rate, but because it was the slowest speed an optical soundhead could read in 1926.[4]

The Mechanics of Painted Sound

To understand the bottleneck, you have to look at the edge of a vintage 35mm film print. Running alongside the pictures is a jagged, continuous waveform printed directly onto the celluloid.[3]

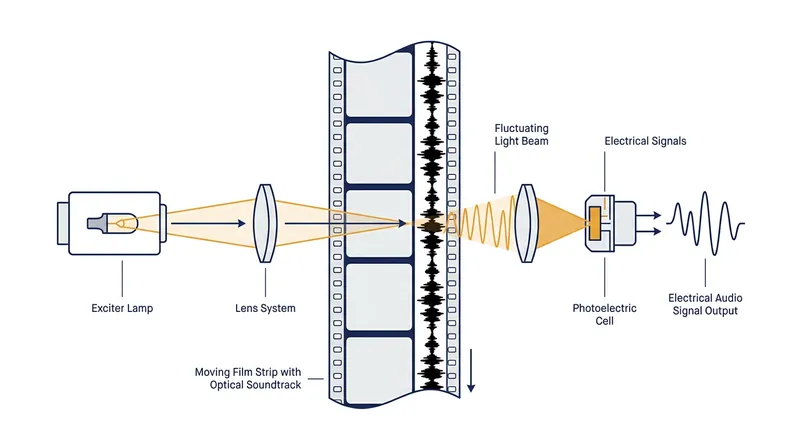

This is the optical soundtrack. As the film runs through the projector, a focused beam of light shines through this track and hits a photoelectric cell. The varying width of the printed wave modulates the light, which the cell translates back into electrical audio signals.[1][3]

The system is brilliantly simple, but it is bound by the relentless physics of speed and space. High-frequency sounds—the crisp snap of a snare drum or the sharp sibilance of an 's'—require the wave to oscillate thousands of times per second.[1]

If the film moves too slowly, those thousands of oscillations are crammed into a tiny physical area. The printed waves become so tightly packed that the projector's light beam cannot distinguish one peak from the next, smearing the high notes into a dull hum.[1]

The 90-Foot Threshold

In the mid-1920s, Western Electric engineers determined that intelligible, natural-sounding dialogue required a frequency response up to at least 7,000 Hertz. To reproduce that frequency, the optical slit in the projector had to be narrower than the physical wavelength printed on the film.[1]

The best optical slits they could reliably manufacture at the time were about one-thousandth of an inch wide. This manufacturing limitation became the hard mathematical floor for the entire motion picture industry.

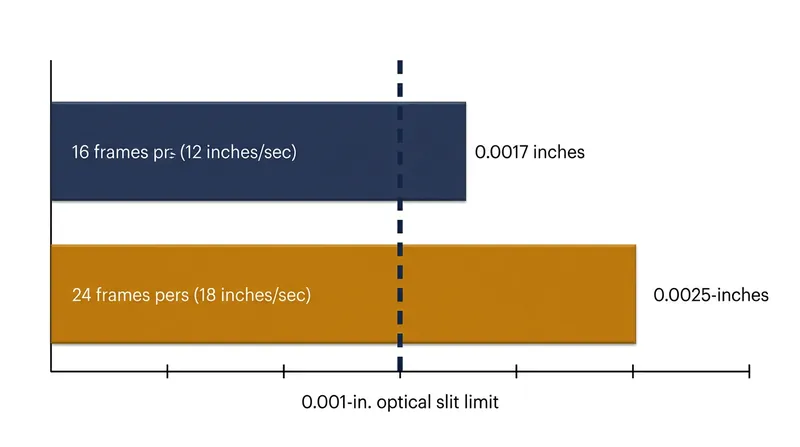

At the silent-era standard of 16 frames per second, 35mm film travels at 12 inches per second. At that speed, a 7,000 Hertz audio wave occupies just 0.0017 inches of physical film space, leaving almost no margin for error for a 0.001-inch optical slit.[4]

The engineers needed the film to move faster to stretch those waves out. They calculated that pushing the film speed to 90 feet per minute—or 18 inches per second—would expand that 7,000 Hertz wavelength to a comfortable 0.0025 inches.[4]

The Cost of a Frame

That 90-foot-per-minute speed translates exactly to 24 frames per second, given that each 35mm frame is four perforations, or 0.75 inches, tall. It was a massive leap from the silent era, and the studios hated it.[2]

Increasing the frame rate from 16 to 24 meant a 50 percent increase in film stock consumption. Every minute of screen time suddenly required 90 feet of expensive silver nitrate instead of 60 feet, inflating production and distribution budgets overnight.[2][3]

Warner Bros. and other early adopters fought to keep the speed as low as possible. "The ear is far more critical of distortion than the eye is of flicker," noted Western Electric engineer Stanley Watkins in a 1927 memo, explaining why the audio team refused to yield.

When test screenings proved that audiences would not tolerate the muffled, underwater quality of slow-speed optical audio, the accountants finally capitulated to the engineers. By 1929, the 24-frame-per-second standard was universally adopted across Hollywood.[2]

The Accidental Aesthetic

Nearly a century later, the physical limitations of 1920s optical slits have been entirely erased by digital technology. Modern cinema cameras and projectors can easily handle 48, 60, or even 120 frames per second with flawless, uncompressed audio.[2]

Yet, the industry remains stubbornly anchored to 24 frames per second. When directors have attempted to release films at higher, smoother frame rates, audiences have largely rejected them, complaining that the hyper-realistic motion looks like a cheap television broadcast.[2][4]

We have been conditioned to associate the slight motion blur and rhythmic judder of 24 frames per second with cinematic prestige. The visual artifacts born of a desperate audio compromise have become the defining texture of the medium itself.[4]

The visual language of modern cinema was not chosen by visionary directors seeking the perfect aesthetic representation of reality. It was dictated by a group of telephone engineers trying to make a recorded voice sound slightly less terrible.[4]

The Global Synchronization

The standardization also forced a global synchronization of projection equipment. Before optical sound, projectionists routinely varied their hand-cranking speed to match the mood of the scene, running action sequences faster and romantic scenes slower.[3]

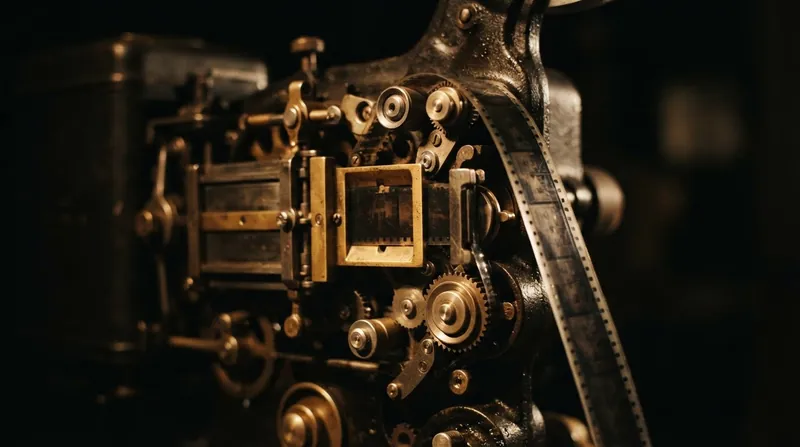

Sound synchronization demanded absolute, unwavering mechanical precision. A motorized projector locked at exactly 24 frames per second became mandatory in every theater from New York to Tokyo, permanently stripping the projectionist of their creative role in pacing the film.[2]

Today, even as we watch digital streams on smartphones with variable refresh rates, the 24-frame cadence persists. It is a digital ghost of a mechanical necessity, a permanent monument to the exact speed required to pull a high-frequency sound wave past a tiny slit of light.[2][4]
