Node-Splitting Decouples Direct and Indirect Evidence Loops to Detect Inconsistency When Network Meta-Analyses Breach the Transitivity Assumption

Proponents of network meta-analysis view it as the ultimate evidence synthesis tool, capable of ranking dozens of treatments by mathematically bridging trials that never actually compared them. Skeptics argue that this mathematical bridging frequently launders fundamentally incompatible patient populations into a single, highly precise, but entirely false number.

The tension between these two views centers on a concept called transitivity. This is the clinical assumption that the trials feeding the network are similar enough that they could have theoretically been arms of one massive study. If they are not, the math still runs, but it produces a hallucination.

When transitivity is breached, the network model does not simply fail to compile. It quietly produces a biased ranking. To catch this, statisticians rely on a diagnostic mathematical technique called node-splitting, which forces the network to prove its own internal logic by decoupling its evidence loops.

The Architecture of Indirect Evidence

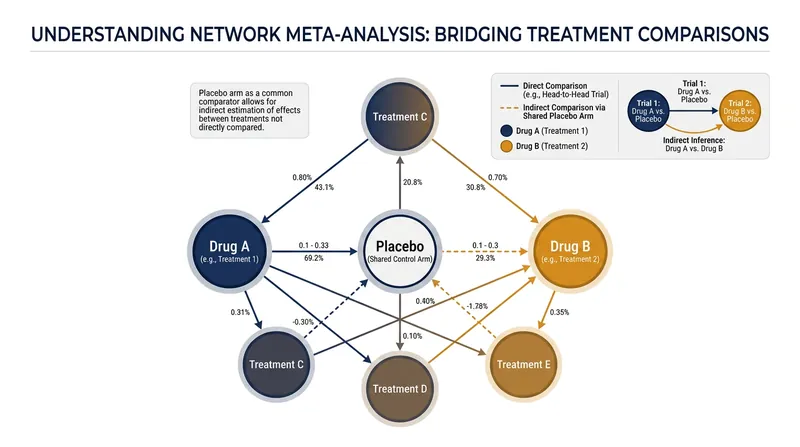

To understand why node-splitting is necessary, one must first understand how a network meta-analysis constructs indirect evidence. When a new drug is tested against a placebo, and an older drug is tested against a placebo, a clinician naturally wants to know which of the active treatments is superior.

If no trial has ever compared the two drugs directly, standard pairwise meta-analysis cannot help. Network meta-analysis solves this by using the shared placebo arm as a mathematical bridge. It calculates an indirect relative effect, allowing researchers to compare three or more treatments simultaneously across a connected web.

This calculation rests entirely on the transitivity assumption. It requires that the patients in the first set of trials and the patients in the second set of trials were fundamentally similar in disease severity, age, and baseline risk. If they differ systematically, the indirect estimate is hopelessly confounded.

"The validity of a network meta-analysis depends on the distribution of effect modifiers across comparisons," notes a 2026 methodological review. If one set of trials enrolled severe cases and the other enrolled mild ones, the resulting indirect comparison is built on a false equivalence between distinct populations.[5]

Because transitivity is a clinical concept, it cannot be tested directly with an equation. Researchers must instead look for its statistical footprint, which is known as consistency. Consistency demands that when direct and indirect evidence both exist for a specific comparison, the two estimates must mathematically agree.

Isolating the Contradiction

In a robust network, a comparison often has both types of evidence. There might be two trials directly comparing the new drug to the older drug, alongside a web of indirect evidence routed through placebos and other standard-of-care treatments. This creates a closed loop of evidence.

If the direct trials show the new drug is vastly superior, but the indirect mathematical loop suggests the older drug is better, the network has a consistency problem. This contradiction indicates that at least one set of trials in the loop is systematically different from the others.

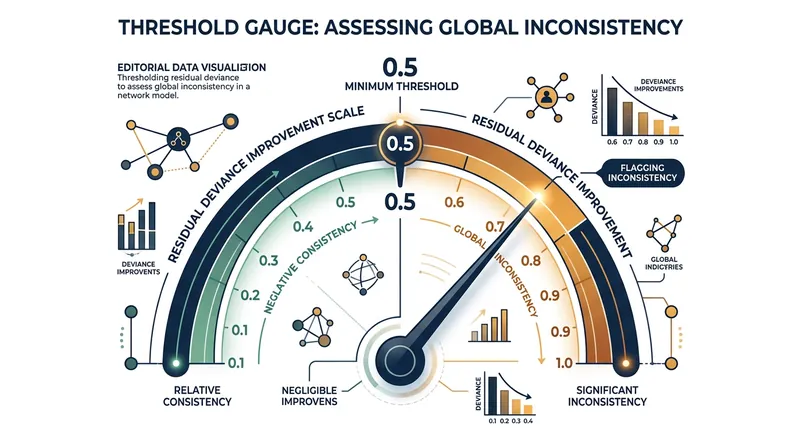

Historically, researchers used global inconsistency tests, such as the design-by-treatment interaction model. These global tests evaluate the overall fit of the network and flag if something is wrong somewhere. However, they cannot localize the exact source of the mathematical tension within a complex web of trials.

This is where node-splitting becomes the critical diagnostic tool. Introduced in 2010 by statistician Sofia Dias and colleagues, node-splitting systematically dismantles the network one comparison at a time. This allows researchers to isolate the exact location of the transitivity breach rather than discarding the entire model.[1]

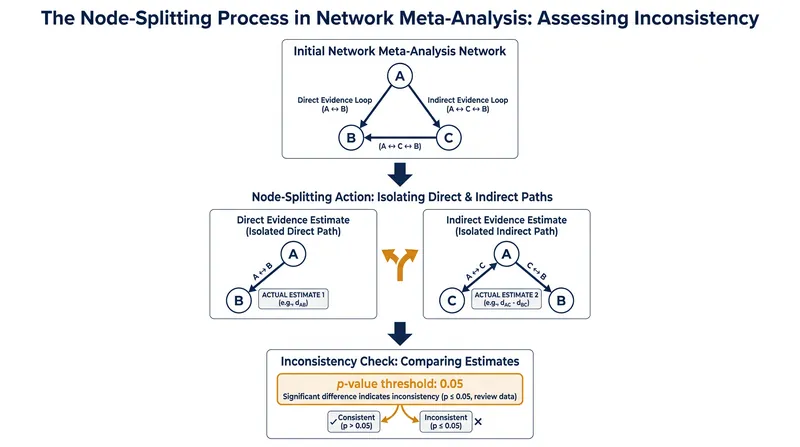

The algorithm selects a specific "node"—a single treatment comparison—and mathematically severs the direct evidence from the indirect evidence. It then calculates a separate effect size for each loop and runs a statistical test to see if the two distinct estimates significantly diverge from one another.

The Mechanics of the Split

During a node-split, the direct evidence is temporarily treated as an independent pairwise meta-analysis. Simultaneously, the rest of the network is recalculated as if those direct trials did not exist, generating a purely indirect estimate built entirely from the surrounding web of connected evidence.

The two resulting distributions are then compared, typically using a Bayesian p-value or a frequentist Z-test. A statistically significant difference—usually defined as a p-value below the standard 0.05 threshold—flags that the direct and indirect loops are telling fundamentally incompatible stories about the same clinical comparison.[3]

"Node-splitting separates the direct and indirect estimates for each comparison and compares them," explains a 2026 Cochrane-aligned methodological guide. This localization allows researchers to investigate the specific trials causing the clash. They can then decide whether to exclude the confounded trials or split the network entirely.[6]

If a node-split reveals inconsistency, the next step is not mathematical, but clinical. Researchers must return to the original trial publications to hunt for unevenly distributed effect modifiers. They look for different dosing schedules, varying definitions of the clinical endpoint, or distinct patient demographics across the trials.

Often, this investigation reveals that a specific treatment node was defined too broadly. Lumping different doses or distinct drugs from the same class into a single node to force the network to connect is a common cause of localized inconsistency that node-splitting reliably exposes.

The Multiple Testing Penalty

Despite its diagnostic precision, node-splitting is not a flawless solution. The primary skeptical critique of the method is that it suffers severely from the multiple testing problem when applied to large, complex networks. Testing every closed loop inflates the risk of finding false positives.

In a network evaluating twenty different interventions, there may be dozens of closed loops where direct and indirect evidence intersect. Running a separate node-split on every single one of these comparisons virtually guarantees that some will flag as inconsistent purely by chance, complicating the analysis.

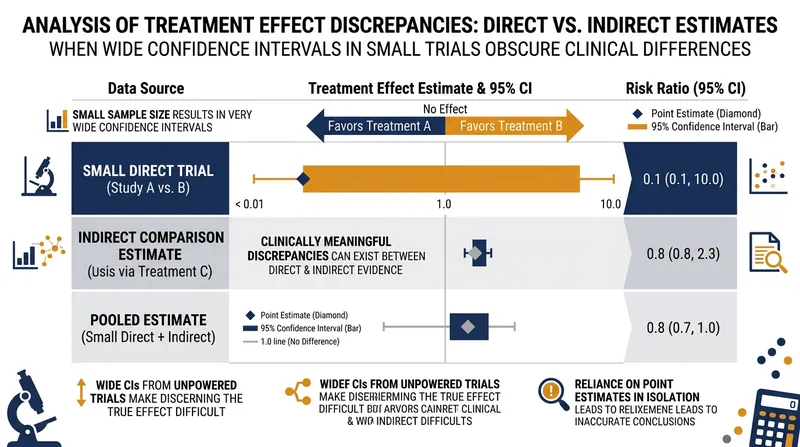

Furthermore, the statistical power of a node-split depends heavily on the volume of data in both the direct and indirect loops. When direct evidence consists of only one small trial, the confidence intervals become so wide that even massive clinical discrepancies fail to reach statistical significance.

This creates a dangerous false sense of security. A non-significant p-value in a node-split does not prove that the network is consistent. Often, it merely proves that the network is underpowered to detect its own flaws, leaving transitivity breaches hidden within the wide margins of error.

Consequently, methodological guidelines like the 2015 PRISMA-NMA extension require researchers to report more than just the p-values. They must present the actual side-by-side effect sizes and confidence intervals for the direct and indirect loops, allowing readers to visually inspect the data for clinically meaningful divergence.[2]

Automation and the Illusion of Rigor

A decade ago, conducting a node-splitting analysis required writing custom Bayesian code in specialized software. This technical barrier meant that only dedicated statisticians typically ran network meta-analyses. Because they built the models manually, they inherently understood the fragility of the assumptions holding the network together.

Today, automated generation tools have reduced node-splitting to a single checkbox in standard statistical software. While this democratization has fueled an explosion in published network meta-analyses, it has also decoupled the mathematical execution from the rigorous clinical reasoning required to interpret the results.[4]

It is now common to see published papers where node-splitting was executed by the software, flagged a significant inconsistency, and was subsequently ignored. Authors eager to publish a definitive ranking of treatments often brush past a p-value of 0.03, treating it as a minor statistical anomaly.

"Results from a network meta-analysis with untested or detected and unresolved inconsistency should be interpreted with extreme caution," warns a recent evidence-synthesis framework. A model that disagrees with itself cannot yield reliable clinical guidance, no matter how sophisticated the underlying Bayesian algorithms might appear.[7]

Ultimately, node-splitting is a mathematical alarm system for a clinical problem. It can decouple the evidence loops and point to the exact location of a transitivity breach, but it cannot fix the underlying reality that some trials simply do not belong in the same network.
