Nanomaterial Contact Lenses Grant Human Eyes the Ability to See Infrared Light

Over half of the sunlight that reaches Earth consists of infrared radiation, yet the human eye is entirely blind to this massive wealth of optical information. Human photoreceptors are biologically constrained to process only the narrow band of the electromagnetic spectrum between 400 and 700 nanometers, a sliver of radiation we know as visible light. Because our opsin proteins lack the thermodynamic properties required to detect longer wavelengths, we navigate the world oblivious to the thermal signatures and infrared light bouncing off our surroundings every second of the day.[3]

For decades, overcoming this strict biological limit required the use of bulky, battery-powered night-vision goggles. These traditional devices work through an active electronic process, capturing invisible photons, converting them into a cascade of electrons via an image-intensifier tube, and projecting them onto a luminescent screen that glows in monochromatic green. Now, an international team of neuroscientists and materials scientists has engineered a radically different, power-free alternative: a soft contact lens embedded with specialized nanomaterials that translates near-infrared light directly into the visible spectrum, resting invisibly on the surface of the eye.[1][4]

The breakthrough research, recently published in the journal Cell, details the creation of what the team calls "upconversion contact lenses" (UCLs). Developed collaboratively by scientists from the University of Science and Technology of China (USTC), Fudan University, and the University of Massachusetts Medical School, the devices grant wearers the unprecedented ability to perceive infrared wavelengths simultaneously with normal vision. Because the lenses require no external hardware or power source, they create a seamless, non-invasive augmented reality that overlays the invisible spectrum directly onto the wearer's natural field of view.[2][5]

The core mechanism driving this optical leap relies on gold-based upconversion nanoparticles, specifically a compound of sodium gadolinium fluoride enriched with the rare-earth elements ytterbium and erbium (Au/NaGdF4: Yb3+, Er3+). These highly engineered particles measure approximately 45 nanometers in diameter—thousands of times smaller than a grain of sand. To make the technology wearable, the research team successfully integrated these nanoparticles into flexible, biocompatible polymeric materials that are virtually identical to the hydrogels used in standard, commercially available soft contact lenses.[5][6]

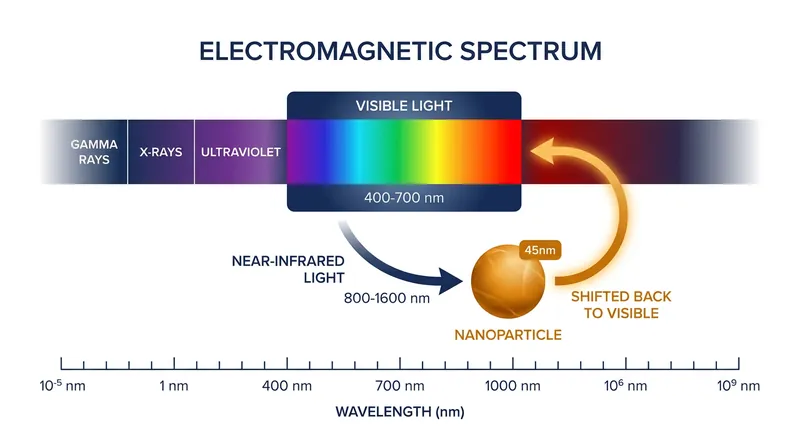

The fundamental physics at play within these lenses is a quantum process known as "anti-Stokes shifting." The embedded nanoparticles act as microscopic optical transducers. When they are struck by near-infrared light—which carries lower energy and longer wavelengths, typically between 800 and 1,600 nanometers—the particles absorb two or more of these low-energy photons. They then combine the energy of those absorbed photons to emit a single, higher-energy photon in the visible spectrum. This upconversion process effectively translates the invisible light into a frequency that human photoreceptors can naturally process.[2]

Crucially, the integration of these nanoparticles does not obstruct the wearer's normal sight. The polymeric material and the nanoparticles themselves are highly transparent to standard optical wavelengths. As a result, wearers do not have to choose between seeing in infrared and seeing normally; they can view the natural world exactly as they always have, while infrared sources appear as glowing, visible overlays within the same field of vision. This simultaneous dual-spectrum perception represents a major advantage over traditional goggles, which completely block natural sight.[2]

In laboratory trials, human subjects wearing the upconversion lenses were placed in completely dark rooms and exposed to flashing infrared signals that resembled Morse code. The subjects could successfully detect the invisible light patterns and accurately identify the direction the signals were coming from. Surprisingly, the researchers discovered during these trials that the subjects' infrared perception was actually enhanced when they closed their eyes, a counterintuitive finding that highlights the unique properties of near-infrared radiation.[4][6]

This closed-eye phenomenon occurs because near-infrared light possesses a remarkable ability to penetrate human biological tissue, including the skin and muscle of the eyelid, much more effectively than visible light. When a wearer closes their eyes, the eyelid acts as a natural filter, blocking out all ambient visible light interference while allowing the infrared signals to pass through to the contact lens. The nanoparticles then convert the infrared light into visible flashes directly against the closed eyelid, resulting in a clearer, high-contrast signal.[1][6]

Moving beyond the monochromatic green imagery associated with traditional night vision, the research team engineered specialized color-coding nanoparticles to create trichromatic versions of the lenses. By meticulously tweaking the chemical composition and the specific rare-earth elements used in the nanoparticles, the scientists successfully mapped different invisible wavelengths to distinct, recognizable visible colors. This advancement allows the lenses to convey complex spectral information rather than just a single, flat layer of illumination.[1][6]

In this trichromatic system, the nanoparticles are tuned so that infrared light at a wavelength of 980 nanometers is converted into blue light, 808 nanometers is translated into green light, and 1,532 nanometers emerges as red light. This allows the wearer to instantly distinguish between different types of infrared sources based on the color they perceive. Such rich spatial and spectral awareness provides a massive tactical and analytical advantage over traditional night-vision systems, which flatten all infrared data into a single shade.[3][6]

Beyond tactical and military applications, the researchers propose that this wavelength-shifting technology could be adapted to pioneer entirely new treatments for color blindness. By modifying the nanoparticles to absorb one specific visible wavelength and emit it as another, the lenses could theoretically shift hues that a color-blind individual cannot naturally perceive into a spectrum they can easily distinguish. This would offer a highly personalized, passive, and non-invasive visual prosthetic for millions of people with genetic color vision deficiencies.[2][5]

The technology also holds immediate promise for security, search-and-rescue, and anti-counterfeiting operations. First responders equipped with the lenses could navigate through dense smoke or fog—which infrared light penetrates more easily than visible light—by following covert infrared beacons. Similarly, security personnel could read invisible anti-counterfeiting marks on documents or communicate via covert infrared lasers that remain entirely undetectable to anyone not wearing the specialized upconversion lenses.[1][6]

While the laboratory results are definitive and groundbreaking, the current iteration of the technology faces significant real-world limitations that must be addressed before widespread deployment. The existing rare-earth nanoparticles require relatively intense infrared sources, such as targeted LED emitters or dedicated infrared lasers, to absorb enough photons to trigger the upconversion process. They are not yet capable of functioning in purely passive, low-light environments without an active illumination source.[5]

Because of this sensitivity threshold, the lenses cannot currently capture the faint, ambient thermal radiation emitted by living bodies or cooling vehicle engines—the primary targets for military and search-and-rescue night vision operations. The research team is actively working on next-generation formulations to drastically increase the photosensitivity of the ytterbium and erbium particles, hoping to eventually allow the lenses to function using only the ambient infrared light naturally present in the night sky.[5][6]

A second major engineering hurdle involves visual clarity and spatial resolution. Because the infrared light is converted into visible light directly at the surface of the contact lens, the newly generated visible photons scatter slightly as they travel through the eye's aqueous humor and lens before finally striking the retina. This scattering effect produces a somewhat blurry image, preventing the wearer from perceiving the sharp, fine details necessary for complex tasks.[1]

To address this resolution issue while the contact lens formulation is being refined, the researchers are concurrently developing a wearable glasses-based system utilizing the exact same upconversion nanomaterials. By moving the conversion process slightly further away from the cornea, the glasses aim to achieve higher spatial resolution and sharper images, serving as an intermediate step toward the ultimate goal of a perfect, high-definition contact lens.[1]

Despite these current hurdles, the successful demonstration of power-free, wearable upconversion represents a profound paradigm shift in optical engineering and human augmentation. By moving the complex process of wavelength conversion out of bulky, fragile electronics and into passive nanomaterials resting directly on the eye, science has taken a definitive, tangible step toward seamlessly expanding the human sensory experience beyond its evolutionary limits, opening a new frontier in bio-integrated technology.[4]
