How the Torque Converter's Stator Multiplies Engine Torque and the Planetary Gearset Shifts Ratios

Engineers who prioritize drivetrain efficiency view the fluid coupling as an inherent compromise: a system that deliberately introduces slip, generates parasitic heat, and saps kinetic energy between the crankshaft and the wheels. Conversely, transmission designers argue that this exact fluid barrier is the only mechanism capable of multiplying engine torque from a dead stop while isolating the driveline from the destructive shock of a stalling internal combustion engine. This engineering trade-off between direct mechanical linkage and fluid-driven torque multiplication defines the architecture of the modern automatic transmission.[8]

Unlike an electric motor, which generates maximum torque at zero revolutions per minute, an internal combustion engine must be spinning to produce power. Connecting a stationary vehicle directly to a spinning crankshaft would immediately stall the engine. To solve this, the torque converter sits between the engine and the planetary gearset, acting as a fluid bridge. As outlined in a 2025 technical review by Gears Magazine, this component serves as the backbone of modern automotive technology by allowing the engine to idle independently of the transmission.[1]

The mechanism relies on three primary components housed within a fluid-filled casing: the impeller, the turbine, and the stator. As defined by Wikipedia's engineering glossary, "A torque converter is a type of fluid coupling which transfers rotating power from a prime mover, like an internal combustion engine, to a rotating driven load." The impeller is bolted directly to the engine's flexplate, spinning at engine speed and flinging transmission fluid outward via centrifugal force. This high-velocity fluid strikes the blades of the turbine, which is connected to the transmission's input shaft, forcing it to turn.[2][5]

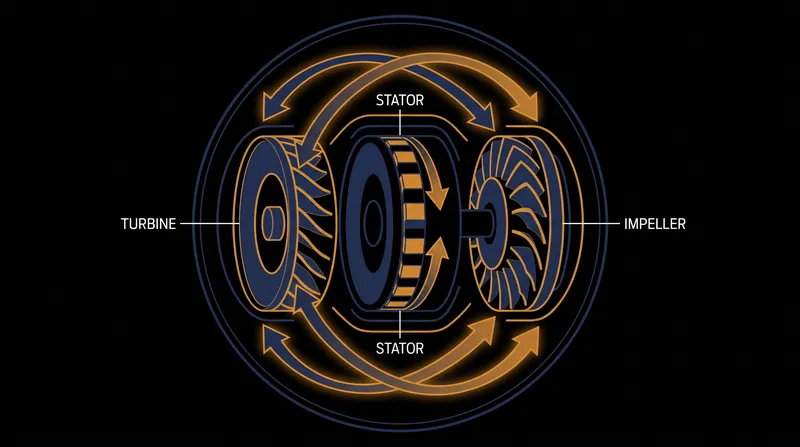

Simply transferring fluid between two fans results in a 1:1 torque ratio, which is insufficient to move a heavy vehicle from a standstill. This is where the stator intervenes. Positioned between the turbine and the impeller, the stator is mounted on a one-way clutch. According to AmTech OEM's 2015 engineering specifications, the stator's primary function is to redirect the fluid returning from the turbine so that it strikes the impeller in the direction of its rotation. Instead of fighting the engine, the returning fluid assists it, effectively multiplying the torque.[3]

At stall speed—when the engine is applying power but the turbine is stationary—this fluid redirection can multiply the engine's torque by a factor of 2.0 to 2.5. As the vehicle accelerates and the turbine's speed approaches the impeller's speed, the fluid strikes the back of the stator blades. The one-way clutch releases, allowing the stator to freewheel, and the torque multiplication drops back to a 1:1 ratio, entering the coupling phase.[1][4]

Once the fluid coupling has multiplied the initial torque and transferred it to the transmission's input shaft, the planetary gearset assumes control of the mechanical ratios. A planetary gearset consists of a central sun gear, multiple planet gears mounted on a carrier, and an outer ring gear with internal teeth. By selectively holding one of these three elements stationary while driving another, the transmission achieves different gear ratios without physically moving gears into and out of mesh.[6]

STOBER's engineering documentation details how this load distribution works in practice. Because the torque is spread across three or four planet gears simultaneously, a planetary gearset can handle significantly higher torque loads than a traditional parallel-axis gearset of the same size. This compact architecture is what allows modern automatic transmissions to package up to 10 forward speeds into a casing no larger than older four-speed units.[6]

To achieve a first-gear reduction, the transmission's hydraulic valve body applies a clutch pack or band to hold the ring gear stationary. The input shaft drives the sun gear, which forces the planet gears to walk around the inside of the stationary ring gear. This causes the planet carrier, connected to the output shaft, to rotate in the same direction as the sun gear but at a significantly reduced speed—typically a ratio of around 3.0:1.[7]

When this mechanical reduction is combined with the stator's fluid multiplication, the total torque applied to the wheels is immense. If an engine produces 200 pound-feet of torque, the stator multiplies it to roughly 400 pound-feet at the input shaft. The first-gear planetary reduction further multiplies this to approximately 1,200 pound-feet at the output shaft, providing the necessary rotational force to overcome the vehicle's static inertia.[1][6]

As vehicle speed increases, the transmission shifts to higher gears by releasing the ring gear and holding the sun gear stationary, or by locking two elements together for a direct 1:1 drive ratio. In overdrive configurations, the planet carrier is driven while the ring gear becomes the output, causing the output shaft to spin faster than the engine. This flexibility is the defining advantage of planetary architecture, as noted in industry analyses by the IQS Directory.[7]

Despite its mechanical elegance, the traditional torque converter introduces a persistent efficiency loss. Because the impeller and turbine are connected only by fluid, there is always a slight difference in their rotational speeds—a phenomenon known as slip. At highway speeds, this slip accounts for a 2% to 5% loss in kinetic energy, which manifests as heat in the transmission fluid.[2][8]

To mitigate this parasitic loss, modern torque converters incorporate a lock-up clutch. Once the vehicle reaches a steady cruising speed, a friction clutch engages inside the converter housing, mechanically linking the impeller and turbine. This creates a direct, zero-slip connection between the engine and the planetary gearset, combining the zero-RPM torque multiplication of a fluid coupling with the highway efficiency of a manual transmission.[1][4]

The integration of these two systems—the fluid dynamics of the stator and the mechanical leverage of the planetary gearset—represents a highly evolved solution to a fundamental physics problem. As the automotive industry shifts toward electric motors that require neither fluid couplings nor multi-speed gearboxes, the torque converter and planetary gearset remain the critical infrastructure that makes the internal combustion engine viable for heavy transport and passenger vehicles.[8]
