How the Double Ratchet Uses Ephemeral Diffie-Hellman Exchanges to Restore Post-Compromise Security

Every time a user taps send on a secure messaging app, the client software decides whether to inject fresh mathematical randomness into the conversation. The application generates a new ephemeral Diffie-Hellman key pair, attaching the public half to the outgoing message header. This silent, continuous exchange forms the backbone of the Double Ratchet algorithm.

Developed in 2013 by Trevor Perrin and Moxie Marlinspike, the algorithm secures billions of daily conversations on platforms like Signal and WhatsApp. While marketing materials often rely on vague terms like "military-grade encryption," the actual capability is far more specific. The protocol operates as a one-way state machine that mathematically isolates past and future messages from a present compromise.

The Double Ratchet algorithm provides perfect forward secrecy and post-compromise security by generating unique session keys for each new message, notes the protocol's formal documentation. This means that if an adversary extracts the cryptographic keys from a device today, they cannot read the messages sent yesterday. More importantly, they will eventually lose access to the messages sent tomorrow.[1]

The mechanism relies on two distinct ratcheting processes working in tandem. The first is a symmetric-key ratchet, which uses a Key Derivation Function to generate a unique 256-bit Advanced Encryption Standard key for every single message. Once a message is encrypted or decrypted, that specific key is permanently deleted.[1]

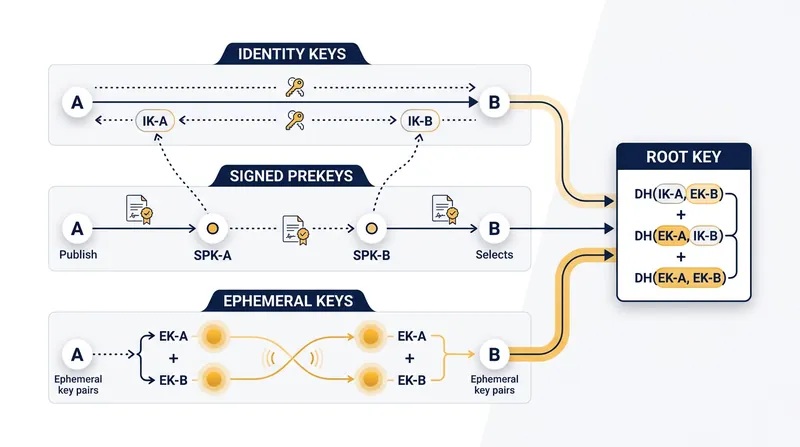

Before the ratcheting can even begin, the two clients must establish an initial shared secret. This is typically accomplished using the Extended Triple Diffie-Hellman key agreement protocol. The initial handshake combines long-term identity keys, medium-term signed prekeys, and ephemeral keys to authenticate the parties and generate the foundational root key.[1]

The Limits of Symmetric Forward Secrecy

Because Key Derivation Functions are one-way cryptographic operations, an attacker who steals the current chain key cannot reverse the math to discover previous keys. This property, known as forward secrecy, protects the historical archive of a conversation. However, the symmetric ratchet alone possesses a fatal flaw when dealing with long-lived messaging sessions.[2]

If an adversary compromises the symmetric chain key, they can simply run the exact same Key Derivation Function forward. This allows the attacker to calculate all future message keys and passively decrypt the ongoing conversation indefinitely. To prevent this permanent breach, the protocol requires a mechanism to lock the attacker back out of the session.[3]

This is where the client software exercises its ability to heal the connection. The protocol introduces a second mechanism, the asymmetric Diffie-Hellman ratchet, which operates asynchronously alongside the symmetric chain. Instead of relying solely on the initial handshake, the clients continuously exchange new public keys as the conversation progresses.[1]

Once the initial root key is established, the Double Ratchet takes over the session management. The protocol dictates that every message sent by either party must begin with a plaintext header. This header contains the sender's current Diffie-Hellman public ratchet key, alongside metadata like the previous chain length and the current message number.[1]

Injecting Fresh Entropy via Diffie-Hellman

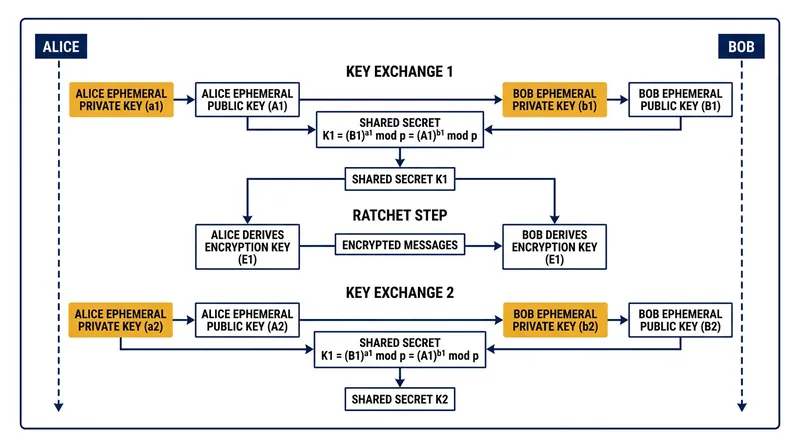

The Diffie-Hellman key exchange algorithm enables two parties to independently derive a shared secret over an insecure channel. In the Double Ratchet, these exchanges are ephemeral, meaning the keys are temporary and discarded immediately after use. When Alice sends a message, her client generates a fresh ephemeral key pair and includes the public key in the message header.[2]

When Bob receives the message, his client performs a Diffie-Hellman computation combining his current private key with Alice's new public key. This operation produces a brand new shared secret that an eavesdropper cannot calculate, because the eavesdropper lacks the corresponding private keys. This fresh mathematical entropy is the catalyst for restoring security.[1]

The ping-pong pattern of new ephemeral Diffie-Hellman keys injects additional entropy into this process, researchers noted in a formal protocol analysis. This continuous injection ensures that a compromised state is only temporary, forcing the attacker to constantly re-compromise the device if they wish to maintain access.[3]

The newly generated Diffie-Hellman shared secret is not used directly to encrypt messages. Instead, it is fed into a central cryptographic structure known as the root chain. The root chain acts as the master mixing bowl for the protocol, combining the existing session state with the fresh entropy provided by the ephemeral exchanges.[1]

The Root Chain and Post-Compromise Security

In a standard Double Ratchet session, each device maintains three distinct Key Derivation Function chains: a root chain, a sending chain, and a receiving chain. When the root chain receives a new Diffie-Hellman shared secret, it derives a new output key. This output key then becomes the new base material for the sending and receiving chains.[1]

The root chain utilizes a Key Derivation Function based on HMAC-SHA256, a cryptographic hash function that outputs 256 bits of pseudorandom data. When the root chain processes the new Diffie-Hellman secret, it outputs two distinct values: the new root key for the next step, and the new chain key.[1]

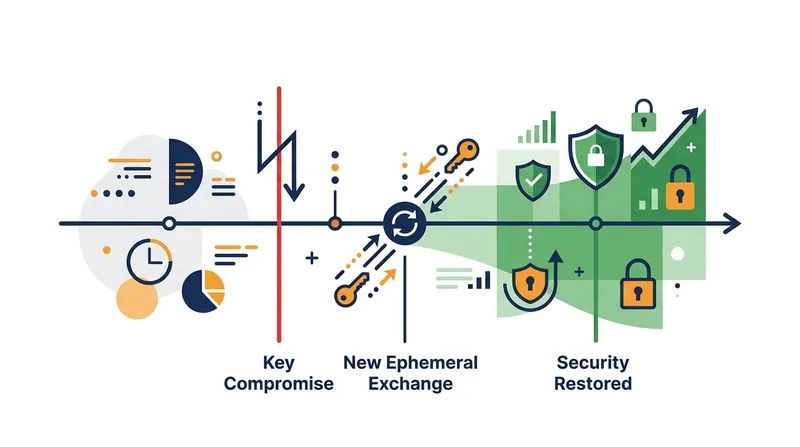

Because the attacker does not possess the new ephemeral private keys, they cannot compute the new Diffie-Hellman shared secret. Consequently, they cannot calculate the new root key, nor the subsequent sending and receiving chain keys. The moment this exchange occurs, the attacker is mathematically locked out of the conversation, achieving post-compromise security.[3]

This continuous cycle of ephemeral key generation and root chain derivation creates a mathematically verifiable boundary around any compromise. If a device is seized and its memory extracted, the attacker obtains only the current chain keys and the current root key. They cannot run the symmetric chains backward to read old messages, preserving forward secrecy.[2]

Furthermore, because the attacker lacks the ability to predict the next ephemeral private key that the legitimate user's client will generate, they cannot compute the next Diffie-Hellman shared secret. The moment the legitimate user regains control of their session and sends a new message, the client software injects that unpredictable entropy, severing the attacker's access.[1]

This self-healing capability operates entirely in the background, requiring no user intervention or manual key resets. The session recovers its security automatically as soon as the compromised party sends or receives a message containing a new ephemeral public key. The protocol effectively quarantines the breach to the specific window of time before the next ratchet turn.[3]

Asynchronous Delivery and Skipped Messages

The protocol also elegantly handles the reality of mobile networks, where messages frequently arrive out of order or are delayed by spotty cellular connections. Because the message headers contain the specific message number and the previous chain length, the receiving client can calculate the necessary message keys for skipped messages without halting the ratchet.[1]

These skipped message keys are stored temporarily in a dedicated dictionary on the device. When the delayed message finally arrives, the client retrieves the corresponding key, decrypts the payload, and then permanently deletes the key from memory. This asynchronous capability ensures that the strict cryptographic sequencing does not degrade the user experience.[1]

Upgrading to Post-Quantum Resilience

While the Double Ratchet successfully mitigates the risks of long-lived sessions, it relies heavily on the underlying security of elliptic curve cryptography. These traditional asymmetric algorithms are vulnerable to future quantum computers. A sufficiently powerful quantum machine could theoretically solve the discrete logarithm problems that secure the Diffie-Hellman exchanges.[3]

To address this looming threat, the protocol's maintainers have begun integrating quantum-resistant cryptography. In October 2025, Signal extended the architecture with the Sparse Post Quantum Ratchet, utilizing the CRYSTALS-Kyber algorithm. This upgrade aims to preserve the protocol's core properties against adversaries who might harvest encrypted data today to decrypt it later.[2]

Combining the post-quantum upgrade with the existing Double Ratchet algorithm offers strong post-quantum security while maintaining all existing security properties. The hybrid approach runs the traditional elliptic curve ratchet alongside the post-quantum ratchet, combining their outputs to derive the final keys.[1]

This hybrid design ensures that an attacker would need to break both the classical elliptic curve math and the new post-quantum lattice problems to compromise the session. The client software manages this dual-track derivation seamlessly, trading a slight increase in computational overhead for a massive leap in long-term cryptographic resilience.[3]

The Standard for Modern Secure Messaging

The Double Ratchet's architecture demonstrates a fundamental shift in how the security industry approaches long-term encryption. Rather than attempting to build an impenetrable fortress around a single static key, the protocol assumes that compromises will eventually occur. It focuses instead on limiting the blast radius of any single breach.[4]

By continuously rotating keys and mixing in fresh entropy, the algorithm transforms a catastrophic key theft into a temporary inconvenience. This pragmatic approach to threat modeling is why the protocol, first introduced in February 2014, quickly became the de facto standard for end-to-end encrypted messaging across the technology sector.[2]

The implementation details vary slightly across different platforms, but the core mechanics remain identical. Whether a user is sending a text via WhatsApp, Google Messages, or Signal, the client software is executing the same intricate dance of ephemeral key generation and Key Derivation Function chaining.[1]

The true strength of the Double Ratchet lies in its relentless forward motion. By ensuring that every single message is encrypted with a unique, unrecoverable key, and by constantly injecting fresh randomness into the session state, the algorithm provides a robust defense against both passive eavesdropping and active device compromise.[3][4]

As messaging platforms continue to evolve, the underlying cryptographic engines will face new challenges, from quantum computing to sophisticated state-sponsored malware. However, the foundational principle of the Double Ratchet will remain a cornerstone of digital privacy. Security must be continuously renewed rather than statically defended.[4]
