How Screentone Density Caps Prevent Moiré Fringes in Digital Manga Downsampling

Traditional manga artists rely on high-frequency dot patterns to create delicate shading and texture, demanding 60 to 85 lines per inch for crisp print reproduction. But digital publishers and mobile platforms view those same dense grids as a technical liability. They force creators to cap their dot frequencies or risk ruining the artwork on smartphone screens.[1]

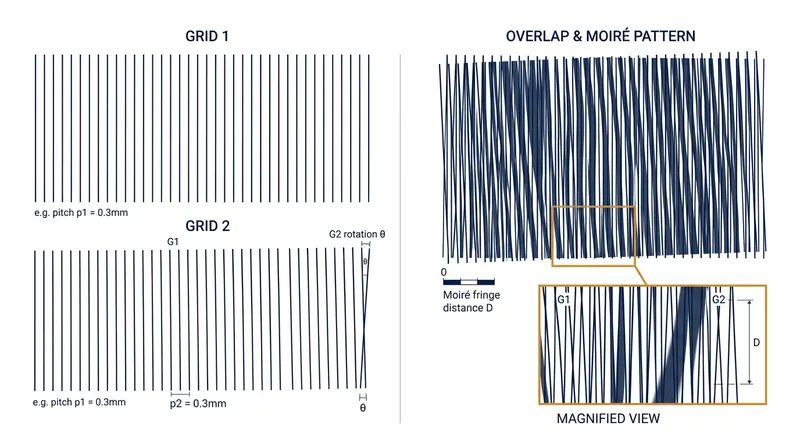

The tension centers on the moiré effect, an optical distortion that occurs when two regular grids overlap. In digital manga, the first grid is the screentone itself—a precise arrangement of black dots used to simulate gray values. The second grid is the rigid array of pixels on a reader's mobile device or tablet.[2]

"When two regular grids overlap, they do not simply add together," explains the technical documentation from Cabanon Press. "They beat against each other, producing a third, larger pattern of dark and light bands." This interference can completely obscure the original linework, turning a subtly shaded sky into a distracting checkerboard.

The Mechanics of Moiré

The interference happens because the human eye naturally averages periodic patterns. Where the dots of the screentone and the pixels of the display happen to align, the result reads as dark. Where they happen to cancel each other out, the area reads as pale.[2]

This alternation rolls across the image in waves that can be coarser than the original tone by a factor of ten or more. In physics, this manifestation is a form of wave interference, identical to the beat phenomenon in acoustics or the patterns observed in the double-slit experiment.[2]

For decades, print publishers managed this by tightly controlling the halftone screens used on their rotary offset machines. A sheet of screentone rated at 60 lines per inch works cleanly with a printing press screen running at 60 lines per inch at the exact same angle. Misalign the angle by even a few degrees, and the wavy bands immediately reappear.

Digital distribution moved the problem one step sideways without actually removing it. A rasterized dot pattern in a digital file carries its own implied frequency. When that file is displayed on a screen with a different pixel density, the grid shifts, and the moiré fringe returns.

The Downsampling Dilemma

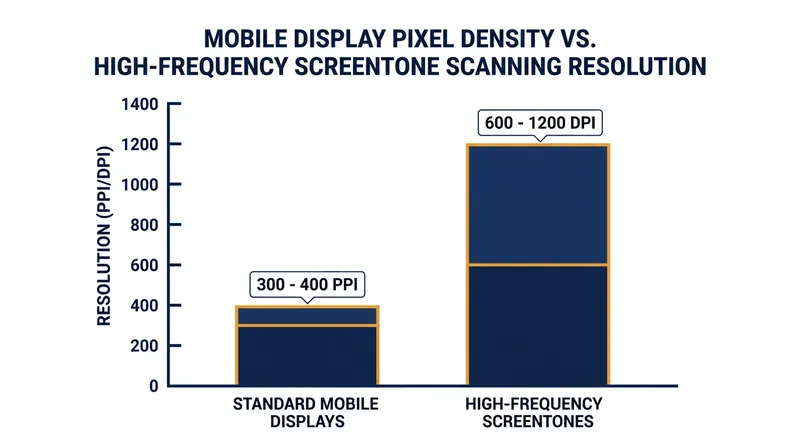

The problem multiplies exponentially when high-resolution manga pages are resized for mobile reading. A standard manga page is often drawn and scanned at 600 dots per inch to preserve the crisp edges of the monochrome linework. However, a typical smartphone screen might only display 300 to 400 pixels per inch.[3]

To fit the image onto the smaller screen, digital platforms employ downsampling algorithms like bilinear or bicubic resampling. These mathematical filters must discard a significant portion of the original pixels. If the screentone frequency is too high, the algorithm lacks enough pixel data per dot to average the area smoothly.[3][5]

"Moiré pattern occurs when a scene or an object that is being photographed contains repetitive details that exceed sensor resolution," explains the technical documentation from Photography Life. When the downsampling algorithm skips over the microscopic gaps between 85 lines per inch dots, it creates a jagged, aliased output that the display renders as a moiré fringe.[4][5]

The relationship between the optical scanning resolution, the halftone grid frequency, and the resulting optical interference is strictly governed by the Nyquist-Shannon sampling theorem. If the display cannot sample the dot pattern at more than twice its highest frequency, distortion is mathematically guaranteed.[5]

Calculating the Density Cap

To prevent this mathematical certainty from ruining digital comic panels, publishers and software developers enforce strict screentone density caps. Clip Studio Paint, the dominant software for digital manga creation, explicitly advises users that 50 to 60 lines per inch is the standard safe frequency for digital export.[3]

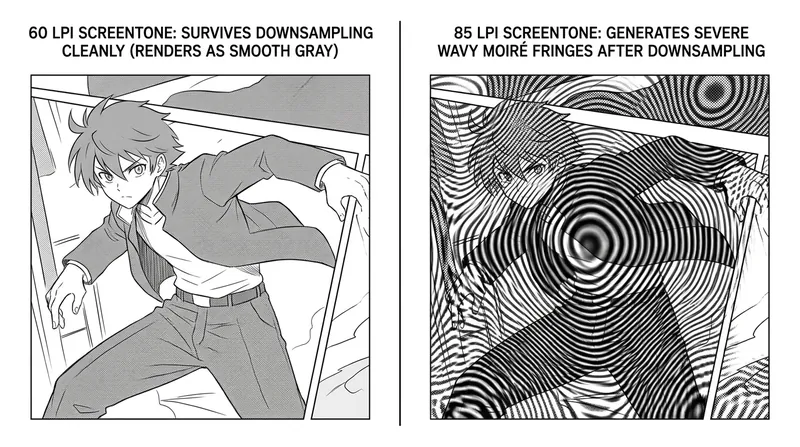

Capping the dot density at 60 lines per inch ensures that standard mobile downsampling algorithms have enough pixel data per dot to apply area averaging. At this frequency, the software can accurately calculate the ratio of black ink to white space, preserving the illusion of gray without spawning interference waves.[3][5]

"The resolution of a halftone screen is measured in lines per inch," details the Wikipedia documentation on screentones. "The higher the pixel resolution of a source file, the greater the detail that can be reproduced." But on a constrained mobile screen, that high detail becomes a liability.[1]

By keeping the frequency below the 60 lines per inch threshold, artists ensure that their shading remains consistent across various devices. Whether viewed on a 1080p smartphone or a 4K tablet, the lower-density dots survive the bilinear downsampling process without triggering the dreaded checkerboard effect.[3]

Grayscale and Anti-Aliasing

Some digital-first creators have abandoned pure monochrome dots entirely, opting for alternative techniques to bypass the moiré problem. The most common workaround is to use solid grayscale fills instead of traditional screentones. Because grayscale relies on continuous tone data rather than a binary grid of black and white, it cannot alias into a moiré pattern.[3]

Another popular method involves applying a slight Gaussian blur to the screentone layer before exporting the final image. Adding a single-digit blur value in Clip Studio Paint converts the harsh edges of the pure black dots into a soft grayscale gradient.[3]

This feeds the downsampling algorithm the continuous color information it needs to properly scale the image. The software no longer has to guess which binary pixels to keep and which to discard, effectively neutralizing the interference grid before it reaches the display.[3][5]

However, these digital compromises come with their own set of drawbacks. Grayscale fills and blurred edges dramatically increase the file size of the comic, as the image format must store 256 shades of gray instead of just two binary values. This can inflate hosting costs for digital publishers.[5]

The Aesthetic Trade-Off

Beyond the technical limitations, traditionalists argue that abandoning high-frequency screentones sacrifices the crisp, textured aesthetic that defines classic manga shading. The microscopic dots of an 85 lines per inch tone create a delicate, almost tactile quality that flat digital gray simply cannot replicate.[1][3]

For many digital artists, a slight optical shimmer is an acceptable price to pay for retaining the medium's traditional visual language. They prefer the texture of screentones over flat grays, even if it means occasionally wrestling with the limitations of mobile image viewers.[3][5]

The 60 lines per inch density cap represents a negotiated truce between the art form's analog history and its digital future. Until mobile displays achieve pixel densities high enough to render 85 lines per inch dots flawlessly, manga artists will continue to balance their aesthetic ambitions against the rigid mathematics of the screen.[5]
