How Meta Guarantees Read-After-Write Consistency Across Its Distributed Social Graph

A distributed database cannot simultaneously guarantee absolute consistency, total availability, and partition tolerance. For a global social network to feel instantaneous, it must serve data from local memory caches rather than querying a central database across an ocean.[8]

That architectural choice creates a binding constraint. If a system prioritizes local read speed, those local caches will inevitably drift out of sync with the master record for a few milliseconds after any new data is written.[1][8]

For most social interactions, this temporary drift is invisible. If a user in London likes a photograph, a user in Tokyo does not need to see that specific interaction appear in the exact same millisecond.[2]

However, the illusion of a responsive system shatters if the delay affects the person who just took the action. If a user posts a comment, reloads their feed, and sees their own comment missing, they will assume the application failed and submit it again.[6]

"Providing read-after-write consistency is critical for user experience, as users expect their own updates to be visible immediately," notes the 2020 USENIX presentation on FlightTracker.[6]

To solve this without sacrificing the speed of local caches, Meta engineered a specific bypass within its distributed data store. The system returns synchronous changesets directly to the originating cache, ensuring the writer always sees their own updates immediately.[2][8]

The follower and leader hierarchy

Meta structures its social graph using a system called TAO, which models all data as objects and associations. An object might be a user or a photograph, while an association represents the relationship between them, such as a tag or a like.[1]

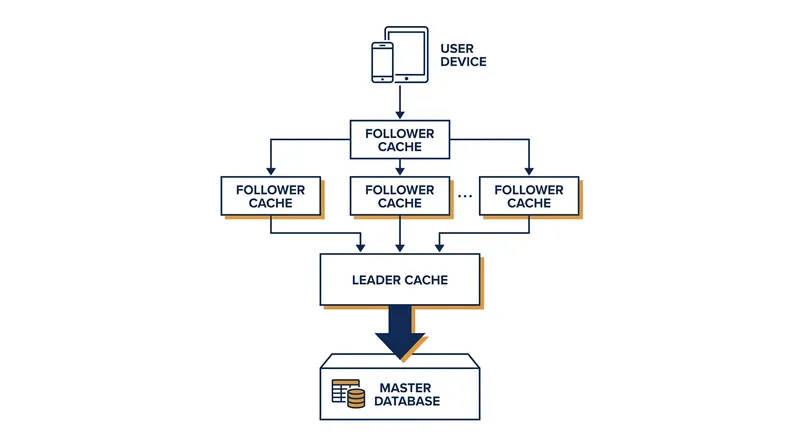

To handle billions of queries per second, TAO relies on a massive, geographically distributed caching layer. The system divides these caches into a two-tier hierarchy consisting of follower caches and leader caches.[1][3]

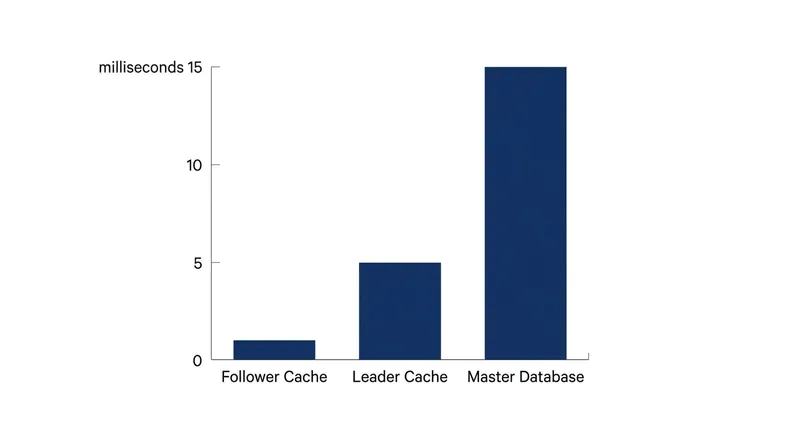

When a user opens their application, their device connects to the nearest data center and queries a follower cache. If the follower has the requested data, it serves the read immediately, typically in under a millisecond.[2]

If the follower lacks the data, it forwards the request to a leader cache, which coordinates with the master database. In practice, the follower caches successfully handle more than 99 percent of all read requests without ever touching the master database.[1]

"TAO's separation of cache and database allows it to scale read capacity independently of write capacity," explains Micah Lerner in his architectural review of the system.[4]

Writes, however, follow a much more complex path. Because a follower cache cannot permanently store new data, it must forward any user update up the chain to the leader cache, which then writes it to the master database.[3]

The asynchronous invalidation gap

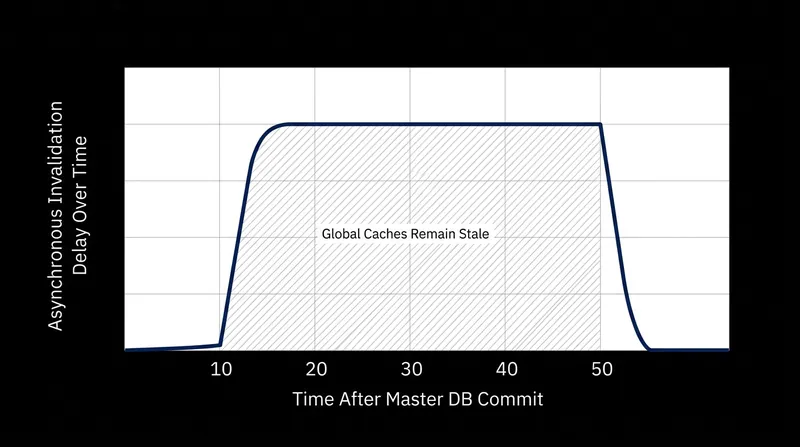

Once the master database commits the new write, it must inform every other cache in the world that their stored version of that data is now obsolete. It does this by broadcasting asynchronous invalidation messages.[1][5]

Sending these invalidations asynchronously is what allows the system to remain fast. The master database does not wait for every cache on Earth to acknowledge the update before it moves on to the next task.[5]

But this asynchronous broadcast creates a dangerous race condition for the user who just submitted the write. The master database has the new data, but the user's local follower cache still holds the old, stale data.[2]

If the user's device immediately requests a page reload, that request will hit the local follower cache. Because the invalidation message from the master database is still traveling across the network, the follower cache will serve the outdated page.[3]

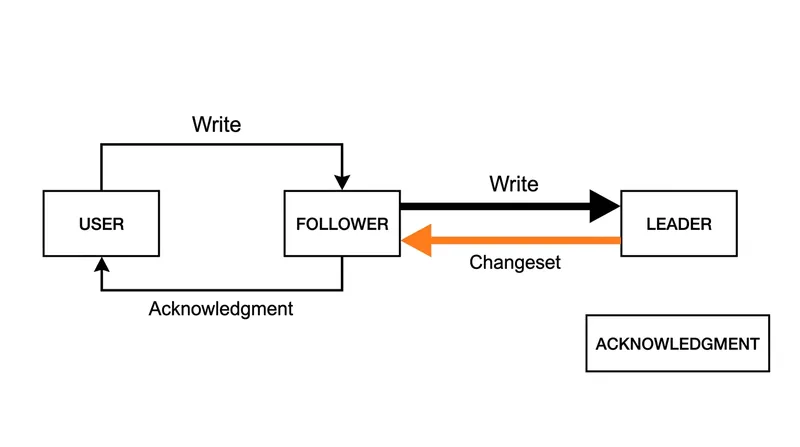

To prevent this, TAO intercepts the return path of the write operation. When the leader cache successfully forwards the write to the master, it does not simply send a success signal back to the originating follower.[1]

Instead, the leader cache bundles the actual updated data—the changeset—and returns it synchronously to the specific follower cache that initiated the request.[2]

Bypassing the replication delay

This synchronous return forces the originating follower cache to update its local memory before the system tells the user's device that the write was successful. By the time the user's application reloads, the local cache is already holding the new data.[3][8]

"The leader replies to the follower with the updated value, allowing the follower to update its cache synchronously," Stephen Holiday notes in his analysis of the 2013 TAO architecture.[5]

This mechanism brilliantly solves the read-after-write problem for the vast majority of interactions. The user sees their own update instantly, while the rest of the global network eventually catches up via the standard asynchronous invalidation pipeline.[4]

However, this elegant solution relies on a fragile assumption. It only works if the user's subsequent read request actually lands on the exact same follower cache that processed their initial write.[6]

In a modern, highly elastic cloud environment, load balancers constantly shuffle traffic between different servers. If a user's smartphone drops its connection and reconnects to a different follower cache in the same data center, the synchronous changeset is useless.[7]

Session tickets and FlightTracker

The new follower cache will not have received the synchronous update, and it will not yet have received the asynchronous invalidation from the master database. It will serve stale data, and the user's comment will vanish.[6]

To close this loophole, Meta engineers realized they needed to decouple read-after-write consistency from the physical server that processed the write. They built a new routing layer called FlightTracker to manage session consistency.[7]

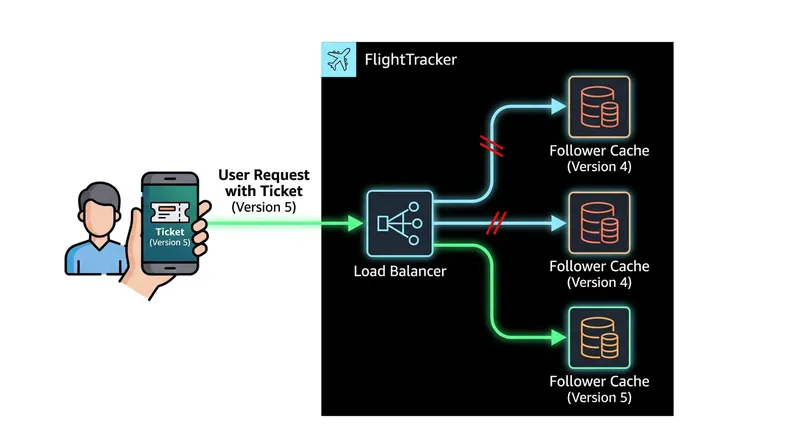

Instead of relying solely on updating a specific cache, FlightTracker issues a metadata ticket to the user's device after every successful write. This ticket acts as a cryptographic receipt proving exactly which version of the database the user just created.[6][8]

"FlightTracker manages consistency metadata, allowing the system to route read requests to replicas that are guaranteed to be sufficiently up-to-date," the Meta engineering team explained in their 2022 architectural update.[7]

When the user's device requests a reload, it presents this ticket to the load balancer. The system checks the ticket against the available follower caches and deliberately routes the request to a server that has already processed the required update.[6]

Trading latency for guarantees

If no local cache has caught up to the ticket's version, the system makes a deliberate trade-off. It blocks the read request and waits for the asynchronous invalidation to arrive, sacrificing microsecond latency to guarantee absolute consistency.[7]

This evolution reveals the reality behind distributed systems marketing. Absolute consistency is never free; it is achieved by carefully tracking metadata and selectively pausing operations when the physical limits of network replication fall behind user expectations.[6][8]

By combining synchronous changeset returns for the most common paths with session tickets for edge cases, Meta maintains the illusion of a single, instantaneous database across a network of thousands of independent servers.[7]
