How Client-Generated Idempotency Keys and Atomic Locks Prevent Duplicate API Debits

When a smartphone loses cellular connection exactly as a user taps "pay," the application prevents a double charge by attaching a client-generated unique identifier to the request. The receiving server uses this idempotency key to place an atomic lock on its database. If the client retries the transaction, the system returns the original success message rather than debiting the account twice.

This mechanism separates the intent to pay from the network's reliability. Without it, a timeout leaves the client blind to whether the server processed the charge before the connection dropped. The client is forced to guess whether to retry and risk a duplicate charge, or abandon the transaction entirely.

As Amazon Web Services engineers note, distributed systems guarantee that messages will be delivered at least once, but they cannot guarantee they will be delivered exactly once. Idempotency keys bridge this gap by making multiple identical requests mathematically equivalent to a single request.[3]

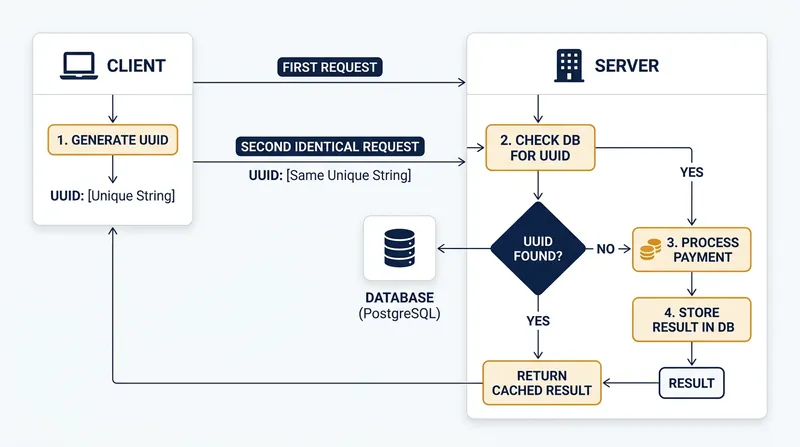

The anatomy of a safe retry

To implement this safeguard, modern application programming interfaces require the client to generate a unique string before initiating a mutating request. This string, typically a Version 4 Universally Unique Identifier, travels in the HTTP headers alongside the financial payload.

Stripe introduced this pattern to its payment infrastructure in the early 2010s, formalizing it as a core requirement for robust API design. When the gateway receives a request, it stores the accompanying key alongside the final transaction result for exactly 24 hours.[1][7]

If a client sends a subsequent request with the same idempotency key within that 24-hour window, the server intercepts it before executing any business logic. It simply serves the cached response from the initial successful attempt, bypassing the payment processing backend entirely.[7]

PayPal employs an identical architecture for its REST APIs, requiring the PayPal-Request-Id header for any operation that moves funds. This shifts the responsibility of uniqueness from the server's processing logic to the client's initial request generation, ensuring the server never guesses a client's intent.[6]

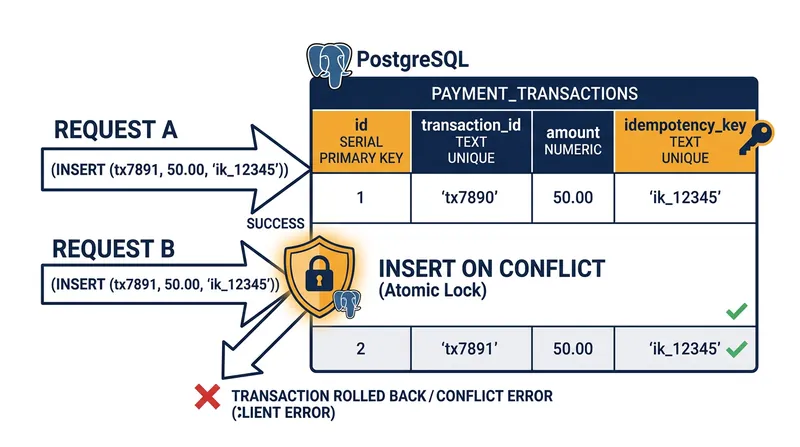

Enforcing atomic locks

Recognizing a duplicate key requires the server to maintain a strictly consistent record of every ongoing and completed transaction. This is typically achieved through atomic locks at the database level, which prevent race conditions when multiple retries arrive simultaneously.

When the server receives a new idempotency key, it attempts to insert a record into a dedicated database table equipped with a unique constraint. If two identical requests arrive simultaneously, the database engine guarantees that only one insertion succeeds.[5]

In a PostgreSQL environment, this is often implemented using an INSERT ON CONFLICT statement. The database attempts to write the new key, and if it already exists, it immediately returns the existing row instead of throwing a fatal error.[5]

This atomic operation is crucial because checking for a key's existence and then inserting it as two separate steps creates a race condition. Two concurrent requests could both check the database, find nothing, and then both execute the financial charge.[5]

The second request encounters a constraint violation, which the application translates into a concurrent request error. Stripe, for example, returns an HTTP 409 Conflict status if a second request arrives while the first is still processing.[7]

By relying on the database's native concurrency controls, developers offload the complex mathematics of transaction isolation. The atomic lock ensures that the payment gateway never executes the actual financial debit twice, even if a load balancer routes duplicate retries to different backend servers.[5]

Expanding beyond REST

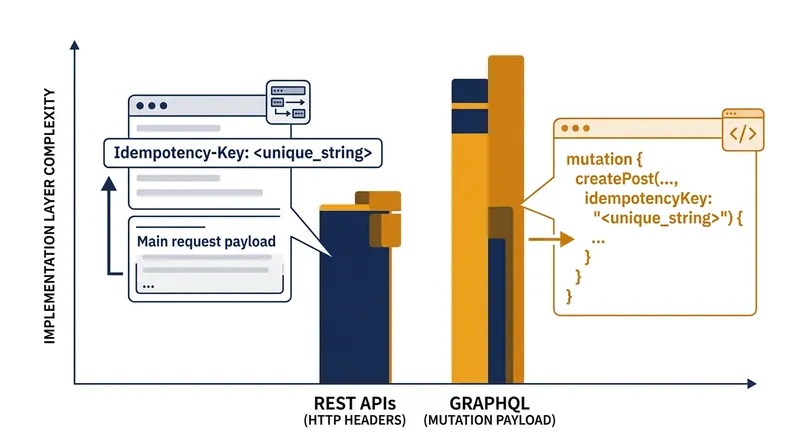

While REST APIs popularized the idempotency key header, the pattern has expanded to accommodate more complex query languages. E-commerce platforms like Shopify have adapted the mechanism for their GraphQL architectures, where routing and validation operate differently.[2]

In August 2019, Shopify engineering detailed how they integrated idempotency directly into GraphQL mutations. Because GraphQL typically routes all traffic through a single endpoint, header-based tracking becomes more complicated to route and validate across diverse mutation types.[2]

Instead, Shopify requires clients to pass an idempotency key as a standard input argument within the mutation payload itself. This allows the schema to enforce the key's presence programmatically, rejecting the request before it reaches the execution phase if the key is missing.[2]

Shopify's implementation also addresses the complexity of partial failures in GraphQL. Because a single GraphQL request can mutate multiple distinct resources, tracking idempotency at the HTTP level is insufficient for granular recovery.[2]

By embedding the key within specific mutation arguments, the system can guarantee that a retry only re-executes the failed portions of a complex query. It returns cached results for the mutations that succeeded on the first attempt, preserving data integrity.[2]

Moving toward an internet standard

For years, every platform implemented idempotency slightly differently. Stripe used Idempotency-Key, PayPal used PayPal-Request-Id, and others embedded it in the payload, forcing developers to write custom retry logic for every third-party integration they built.[1][6]

To unify these approaches, the Internet Engineering Task Force published a draft specification in October 2025 to standardize the Idempotency-Key HTTP header field. This effort aims to elevate the concept from a proprietary API feature to a fundamental web protocol.[4]

The IETF draft defines the header as a string that uniquely identifies an operation, explicitly stating that the server must treat the key as an opaque value. The standard does not dictate the format, though it recommends UUIDs to minimize collision risks.[4]

By moving idempotency to a standardized HTTP header, the IETF enables generic infrastructure to handle retry safety automatically. API gateways and reverse proxies can intercept and deduplicate requests without needing to parse the underlying application payload.[4]

Expiration and payload mismatches

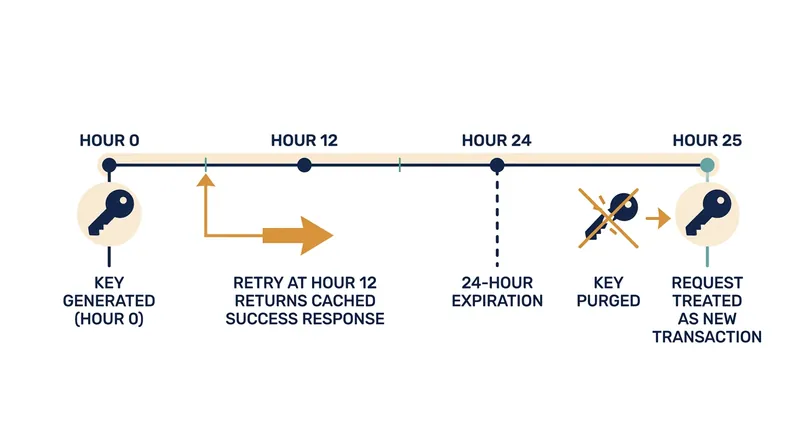

Idempotency keys are not permanent records. Storing every key indefinitely would bloat databases and degrade query performance, so platforms enforce strict expiration windows to balance safety with infrastructure costs.

Stripe purges its idempotency records after 24 hours. If a client retries a failed payment 25 hours later with the exact same key, the server will treat it as a completely new request and execute the charge again.[7]

Furthermore, idempotency locks are tightly bound to the specific payload they accompany. If a client sends a key with a $10 charge, and then retries the same key with a $20 charge, the server must reject the request entirely.[1]

This prevents a scenario where a client accidentally reuses a cached key for a different transaction. Without this check, the server would silently ignore the new payload and return the cached $10 success response, leaving the client unaware of the failure.[1]

To enforce this, systems hash the incoming payload and compare it to the hash stored alongside the idempotency key. If the hashes diverge, the API throws a validation error, forcing the client to generate a new key for the modified request.[5]

The limits of infrastructure

Despite the robust guarantees of atomic locks, idempotency keys only protect against duplicate requests generated by the same client process. They cannot prevent a user from accidentally clicking a "buy" button twice if the application generates a new key for each click.

The mechanism relies entirely on the client application correctly caching the key in local storage before initiating the network request. If the client crashes and loses the key, the subsequent retry will look like a completely new transaction to the server.

As AWS documentation highlights, building truly resilient systems requires idempotency at every layer, from the client interface down to the database row. A single non-idempotent operation in a distributed chain can compromise the entire transaction sequence.[3]

Ultimately, the shift toward standardized idempotency headers reflects a maturation of web infrastructure. Network failures are no longer treated as exceptional errors to be handled manually, but as routine events that the protocol itself must absorb invisibly.
