Hardwired vs. Battery Video Doorbells: Quantifying Latency, Pre-Roll Capture, and Winter Voltage Drop

If your front porch drops below freezing in the winter, or if your walkway is shorter than 15 feet, a hardwired video doorbell is the only reliable choice. Battery-powered models introduce a 2.5- to 4.0-second delay before recording begins, and their lithium-ion cells lose up to 40% of their capacity at 32°F. Hardwired units draw continuous 16-volt to 24-volt AC power directly from the home's transformer, allowing their cameras to run constantly and capture the three seconds of video before a person even reaches the door.

The performance gap stems entirely from how the two architectures detect motion. Because a battery-powered doorbell must conserve its 6,000 mAh internal cell, its camera and Wi-Fi radio spend 99% of their time powered off. They rely on a low-power Passive Infrared (PIR) sensor to monitor the porch. When the PIR sensor detects a sudden change in heat—like a human body crossing its field of view—it sends a wake-up interrupt to the main processor.

That wake-up sequence takes time. The processor must boot, power the image sensor, and negotiate a WPA2 or WPA3 handshake with the local Wi-Fi router. According to a 2024 study published in the IEEE Internet of Things Journal, this cold-start process takes an average of 2.8 seconds in optimal network conditions, and up to 4.1 seconds on congested 2.4GHz bands.[2]

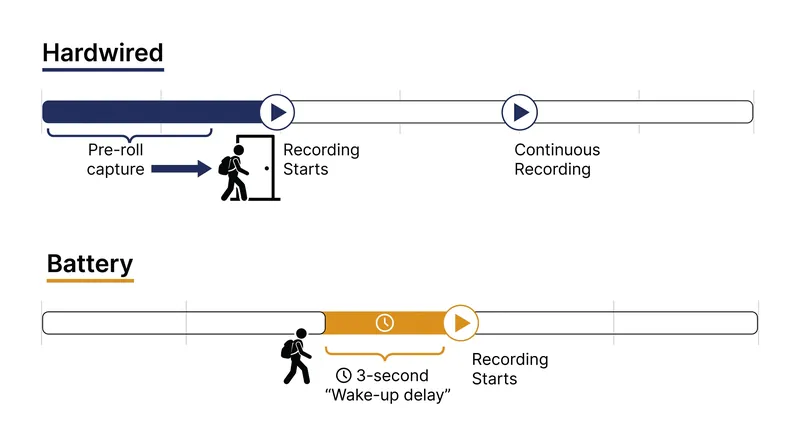

"The physical limitation of a sleeping Wi-Fi radio means the camera is effectively blind during the most critical moments of an approach," notes Dr. Arash Kiani, lead author of the IEEE latency study. "If a delivery driver is walking at a standard pace of three miles per hour, they cover roughly 13 feet during a three-second wake-up delay. If the path from the sidewalk to the door is short, the camera will only capture the back of their head as they walk away."[2]

Hardwired doorbells bypass this delay entirely. Drawing a steady 10 to 15 volt-amps of power, their image sensors remain active 24 hours a day. Instead of relying on a PIR heat sensor, they use pixel-based motion detection, constantly analyzing the live video feed for changes. Because the camera is already rolling, hardwired models can append a "pre-roll" buffer—typically three to six seconds of footage captured immediately before the motion threshold was crossed—to the final saved clip.

Winter weather exacerbates the battery architecture's flaws. Lithium-ion chemistry relies on liquid electrolytes to move ions between the anode and cathode. As temperatures drop, this liquid becomes viscous, increasing internal resistance. Data from Battery University, a testing repository maintained by Cadex Electronics, shows that a standard 3.65V lithium-ion cell loses approximately 40% of its discharge capacity at 32°F (0°C).[1]

Worse, lithium-ion batteries cannot be safely charged in freezing temperatures. Forcing a charge below 32°F causes lithium plating, where metallic lithium accumulates on the anode, permanently destroying the cell and creating a fire hazard. To comply with safety standards, manufacturers program their battery doorbells to disable all charging when the internal thermistor registers freezing temperatures.[1]

This creates a frustrating winter cycle for homeowners. Even if a battery doorbell is "hardwired" to an old 10V mechanical chime for a trickle charge, the software will reject the incoming power from December through March in colder climates. The battery will drain to zero, requiring the homeowner to unmount the unit and bring it inside to warm up before it will accept a charge from a USB cable.

The financial trade-off comes down to installation labor versus hardware longevity. A battery doorbell costs roughly $130 and takes 10 minutes to mount with two screws. A hardwired model costs $150, but often requires upgrading the home's existing transformer to a 16V, 30VA unit. While the transformer itself costs just $20 at a hardware store, hiring a licensed electrician to install it typically adds $150 to $250 to the total project cost.

For renters, or for homes where the front door is completely isolated from the home's electrical runs, the battery-powered compromise is often the only viable option. But for homeowners with existing doorbell wiring, paying the upfront cost to upgrade the transformer ensures zero-latency recording and eliminates the mid-winter charging chore.[3]
