Fabric Stackback Consumes One-Third of Drapery Width, Blocking Daylight Unless Rods Extend Past Window Casings

When the US Green Building Council updated its LEED v4.1 daylighting requirements in April 2024, it forced architects to rigorously account for interior shading devices. Yet in residential design, the moment a homeowner pulls back a newly installed set of custom drapes, they often discover their once-bright room has grown permanently dim.[1]

The architectural opening remains unchanged, but the functional glass has been severely compromised. This happens because woven textiles cannot compress into nothing. When drawn open, the gathered material forms a dense column of fabric known in the interior design industry as stackback.[3]

"Stackback is the physical footprint of the open curtain," explains the 2025 edition of the Professional Drapery Specification Guide. "Depending on the pleat style and lining, that footprint consumes roughly one-third of the total panel width."

If a rod is mounted flush with the edges of a standard 36-inch window casing, that compressed fabric has nowhere to go but over the glass. Twelve inches of the window is permanently blocked, cutting the room's natural light by 33 percent.[3]

The geometry of pleated fullness

To understand why curtains consume so much space, you have to look at how they are constructed. Custom drapery is rarely sewn flat; it is built with a fullness ratio, typically 2.5 times the width of the window it covers.

This means a window requiring 50 inches of coverage uses 125 inches of flat fabric. When the curtain is opened, those 125 inches of material fold back on themselves, creating deep pleats that stack together like an accordion.[3]

The thickness of the yarn, the density of the weave, and the addition of blackout linings all add physical bulk to those folds. A heavy velvet panel with a thermal lining will stack significantly wider than a sheer linen panel of the exact same width.[3]

The pleat style also dictates the compression limit. Traditional pinch pleats are sewn tightly at the top header, forcing the fabric below to fan out and resist tight packing. This structural rigidity prevents the curtain from compressing beyond that 33 percent threshold.

Calculating the necessary rod extension

To preserve the full architectural opening, the curtain rod must extend past the window casing onto the adjacent drywall. This allows the stackback to rest entirely against the wall, leaving the glass completely unobstructed when the drapes are open.

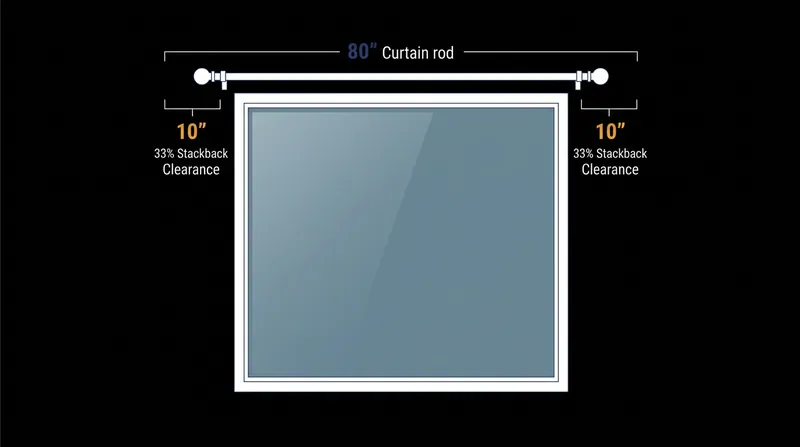

The standard industry formula requires adding the stackback width to the window width to determine the correct rod length. For a 60-inch window, a 33 percent stackback equals 20 inches of compressed fabric.

Therefore, the rod must be at least 80 inches long, extending 10 inches past the casing on the left and 10 inches on the right. "Failing to account for this clearance is the single most common error in residential window treatments," notes Architectural Graphic Standards.

Extending the rod offers a secondary visual benefit beyond daylight preservation. By framing the window with fabric rather than covering its edges, the treatment creates an optical illusion that makes the window appear significantly wider and taller than its actual dimensions.[3]

How pleat styles alter the math

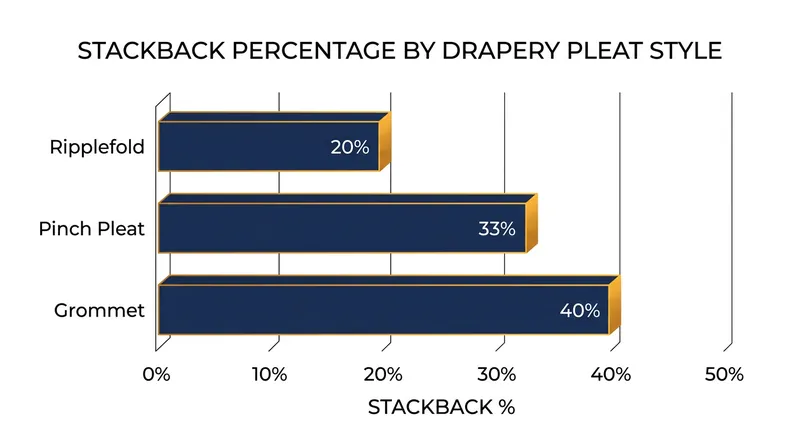

While the one-third rule provides a safe baseline, modern hardware systems can alter the equation. Ripplefold drapery, which attaches to a specialized track via snap tape, glides in uniform, S-shaped curves rather than structured pleats.

Because the fabric folds neatly back on itself without a rigid sewn header, ripplefold panels compress much more efficiently. A standard ripplefold system reduces the stackback penalty to roughly 20 percent of the total width, saving valuable wall space.[3]

Conversely, grommet-style curtains, which thread directly onto a thick decorative pole, require even more clearance. The rigid metal rings force the fabric into deep, inflexible waves that resist tight stacking, often pushing the stackback ratio closer to 40 percent.[3]

"Homeowners often choose grommets for their modern look, only to realize they sacrifice nearly half their window to the fabric," reports a 2025 daylighting analysis in the Journal of Building Engineering. The study found that improper hardware sizing reduced spatial daylight autonomy by an average of 28 percent.[2]

Navigating architectural constraints

The ideal rod extension is not always physically possible. In older homes, windows are frequently situated tightly in corners, flanked by built-in bookcases, or positioned too close to adjacent walls to allow for a 10-to-15-inch hardware extension.[3]

When lateral space is restricted, designers must compromise by adjusting the fabric's fullness ratio. Dropping the fullness from 2.5x to 1.5x reduces the total volume of material, yielding a narrower stackback at the cost of a less luxurious, flatter appearance when closed.

Another solution involves asymmetrical stacking. If a window sits flush against a right wall, a one-way draw system allows the entire curtain panel to stack to the left. This requires a longer extension on the open side but entirely clears the glass.[3]

For rooms where maximizing daylight is critical but wall space is nonexistent, inside-mount shades offer a functional alternative. Roman shades or cellular blinds pull vertically into the window frame's upper header, eliminating the horizontal stackback problem entirely.[3]

Fabric memory and training

Even with the correct hardware extension, new drapery rarely stacks perfectly on the first day. Natural fibers like linen and cotton possess a structural memory that initially resists tight compression, causing the stackback to flare outward at the bottom hem.[3]

Professional installers mitigate this by "training" the drapes immediately after hanging them. They manually fold the pleats into their compressed state and tie the panel loosely with fabric bands for 48 hours, forcing the yarns to memorize the tight accordion shape.

Without this training period, the fabric's natural rigidity can add an extra 5 to 10 percent to the stackback width. "An untrained heavy linen panel will constantly fight the rod, creeping back over the glass no matter how wide the hardware extends," the Professional Drapery Specification Guide warns.

Stationary panels as an alternative

For homeowners who want the visual softness of fabric without the mechanical hassle of a massive stackback, stationary panels offer a hybrid solution. These decorative side panels are fixed in place on short rod segments and are never drawn closed.[3]

Because they do not need to cover the entire window, stationary panels are manufactured with a fraction of the fabric volume. They can be permanently dressed to occupy just 8 to 10 inches of wall space, framing the view while relying on hidden roller shades for actual privacy.[3]

The physics of woven textiles remain absolute. Fabric possesses mass and volume, and it will occupy physical space whether it is drawn across a room or pushed into a corner.[3]

Acknowledging that volume before installation transforms a window treatment from a light-blocking obstacle into an architectural asset. The difference between a dark, cramped room and a bright, expansive one often comes down to a few inches of metal hardware.[3]
