Explainer: How 'Graph RAG' is Curing AI Hallucinations by Giving Models a Map

The fundamental flaw of Large Language Models (LLMs) has always been their tendency to confidently invent facts—a phenomenon known as hallucination. For casual users writing emails or brainstorming marketing copy, this is a minor annoyance. But for enterprise, legal, and scientific applications, a single fabricated citation or hallucinated financial metric can be catastrophic, severely limiting the real-world utility of generative AI.[3]

For years, the artificial intelligence industry believed that simply scaling up models—feeding them exponentially more data and computing power—would eventually iron out these inaccuracies. However, by 2026, it has become clear that pure neural networks, no matter how massive, cannot reliably memorize and retrieve exact factual details without an external grounding mechanism.[3]

The first major attempt to solve this grounding problem was Retrieval-Augmented Generation, or standard RAG. Introduced as a mainstream enterprise concept around 2022, standard RAG acts like an open-book test for the AI. Instead of relying solely on its internal, pre-trained memory, the model searches an external database for relevant text snippets, retrieves them, and uses them to formulate a fact-based answer.

Standard RAG relies heavily on vector databases, which convert text into mathematical coordinates. When a user asks a question, the system finds the text snippets whose coordinates are closest to the question's coordinates. This works brilliantly for simple, targeted queries, like asking a corporate HR bot about a specific company travel policy hidden in a handbook.[3]

However, standard RAG hits a severe wall when faced with "multi-hop reasoning"—questions that require connecting the dots across dozens or hundreds of different documents. If a financial analyst asks, "How did the supply chain disruptions in Taiwan affect our European subsidiaries' Q3 margins?", standard RAG often fails because the answer isn't located in a single paragraph; it requires synthesizing a web of interconnected, disparate events.[1][2]

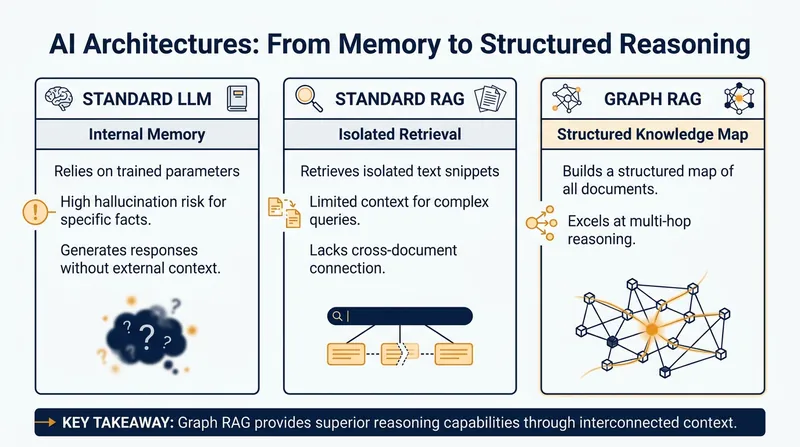

This specific limitation birthed the current architectural breakthrough: Graph RAG. By marrying the fluid, natural-language reasoning of LLMs with the rigid, structured logic of Knowledge Graphs, researchers have created a hybrid system that can perform complex, global sensemaking over massive private datasets without hallucinating.[1][3]

A Knowledge Graph is a structured representation of information where entities—such as people, places, companies, or concepts—are represented as "nodes," and the relationships between them are represented as connecting "edges." Think of it as a massive, digital detective's string board, explicitly mapping out how every piece of data relates to every other piece.[3]

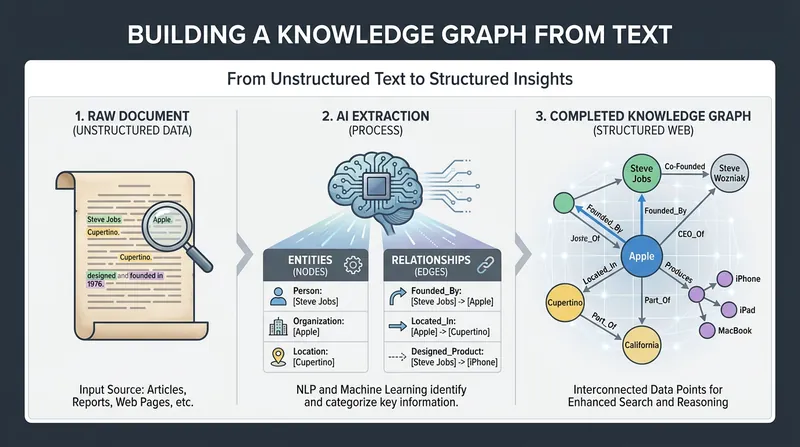

In a Graph RAG system, the LLM is first deployed in a preparatory phase to read through an organization's entire corpus of documents—millions of pages of contracts, emails, and research reports. As it reads, the model extracts entities and their relationships, systematically building a comprehensive, interconnected knowledge graph of the organization's proprietary data.[1][2]

Microsoft Research pioneered this specific approach, demonstrating that when an LLM is forced to map out these relationships explicitly before answering questions, it creates a structured semantic map of the data. This map allows the AI to understand the global context and hierarchy of a dataset, rather than just retrieving isolated, fragmented sentences based on keyword proximity.[1]

When a user queries a Graph RAG system, the AI doesn't just look for text snippets. It traverses the knowledge graph, following the edges from one node to another, gathering a holistic view of the topic. It then uses this structured, verifiable map to generate a highly accurate, deeply contextualized answer that spans multiple documents.[2][3]

The empirical evidence for Graph RAG's efficacy is striking. In benchmark tests requiring complex synthesis across entire datasets, Graph RAG architectures routinely achieve accuracy and completeness rates exceeding 85%, compared to standard RAG systems that often plateau around 40% on the exact same multi-hop reasoning tasks.[1][2]

This leap in reliability has unlocked new enterprise applications that were previously deemed too risky for generative AI. Legal firms are now using Graph RAG to conduct automated discovery across millions of case files, identifying hidden connections between shell companies and corporate officers that human paralegals might take months to find.[3]

In the medical field, research hospitals are deploying Graph RAG to synthesize patient histories, clinical trial data, and genomic profiles. Because the system relies on a verifiable graph structure, doctors can trace every assertion the AI makes back to its exact source node, ensuring full transparency, auditability, and clinical safety.[3]

Despite its transformative potential, Graph RAG is not without significant trade-offs. The primary hurdle is computational cost. Using an advanced LLM to read millions of documents and extract a structured knowledge graph is an incredibly compute-intensive process, often costing tens of thousands of dollars in API fees for a single large-scale enterprise deployment.[1]

Furthermore, the graph-building process is relatively slow and static. While standard RAG can ingest new documents almost instantly, updating a knowledge graph requires the LLM to re-evaluate how new information alters existing relationships, creating a bottleneck for real-time data streams like live financial tickers or breaking news.[2][3]

To mitigate these costs, open-source developers and infrastructure providers are actively building smaller, highly specialized models trained exclusively for entity extraction. By offloading the expensive graph-building phase to these cheaper, faster, purpose-built models, the industry hopes to democratize Graph RAG for mid-sized businesses and independent researchers.[3]

The shift toward Graph RAG represents a broader philosophical pivot in artificial intelligence. The industry is moving away from the idea that a single, monolithic neural network can do everything, embracing instead "neuro-symbolic" architectures that combine the fluid pattern recognition of deep learning with the structured, verifiable logic of traditional computer science.[3]

As these hybrid systems become more efficient and accessible, the era of the hallucinating, unpredictable chatbot is slowly coming to an end. By giving AI a structured map of reality, Graph RAG is finally allowing language models to fulfill their initial promise as reliable, high-level analytical engines.[3]
