Decoupling Plate Rotational Inertia Eliminates Wrist Torque: Why Olympic Barbells Spin

A standard powerlifting barbell and an Olympic weightlifting barbell look nearly identical on a gym floor, sharing the same steel construction and heavy knurling. The single respect in which the Olympic bar differs is hidden inside its loadable ends. Its sleeves spin entirely independently of the central shaft.

This independent rotation is not a luxury feature or a modern manufacturing quirk. Since the rotating sleeve was first introduced to international competition at the 1928 Amsterdam Olympics, it has been a strict mechanical requirement enforced by the International Weightlifting Federation. Without spinning sleeves, the physics of lifting heavy weights overhead would systematically destroy a human wrist.

During a dynamic lift, the athlete pulls the barbell upward and then rapidly drops underneath it. This transition requires the lifter to flip their hands and wrists over the bar in a fraction of a second. The central steel shaft must rotate smoothly within their grip to accommodate this sudden change in body position.

If the sleeves were permanently fixed to the shaft, the heavy iron or rubber plates loaded on the ends would be forced to rotate along with it. A loaded barbell carries massive rotational inertia, meaning the resting plates naturally resist any sudden twisting motion. Forcing them to spin requires immense physical effort.

"When you catch a snatch overhead, the plates and sleeves continue rotating while your hands stabilize around the shaft," notes the Factlen Editorial Team. "Without that independent rotation, the torque generated by the plates in motion would travel directly into the wrists and elbows."[4]

The Physics of Rotational Inertia

Rotational inertia dictates how difficult it is to change the spinning velocity of an object. Heavy bumper plates positioned at the far ends of a barbell possess a massive moment of inertia. They want to remain stationary while the lifter attempts to rotate the bar during the catch phase.

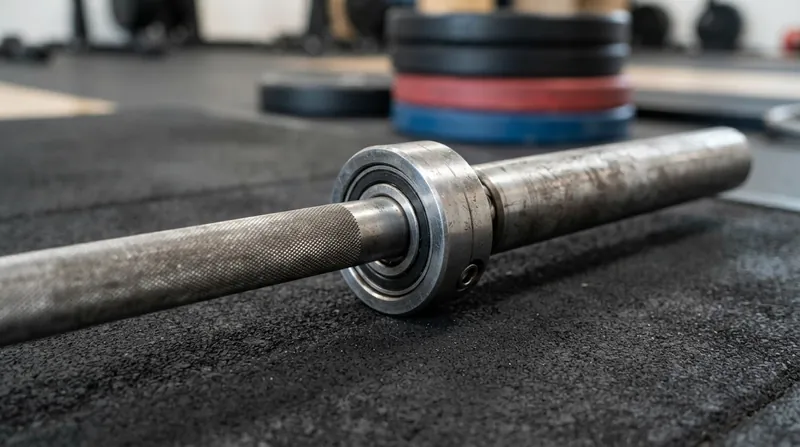

By decoupling the sleeves from the shaft, engineers allow the heavy plates to obey the laws of physics without punishing the athlete. The central shaft spins freely in the lifter's hands, while the sleeves and plates remain relatively still. This mechanical isolation eliminates the destructive friction that would otherwise occur.

The spin helps distribute the momentum of the weights evenly, which reduces the rotational force placed on the athlete's joints. This mitigates the immediate risk of injury and allows the athlete to focus entirely on lifting the weight. The mechanical advantage is particularly obvious during the rapid turnover of a heavy clean.[1]

The speed of the turnover in Olympic weightlifting leaves no margin for mechanical resistance. An elite lifter transitions from a pulling posture to a receiving posture in less than half a second. Any delay caused by the plates resisting rotation would cause the athlete to miss the lift entirely.

If a lifter attempts these explosive movements with a fixed-sleeve standard bar, the energy required to spin the plates transfers directly into their joints. The wrists act as the primary shock absorbers for this unwanted torque. Over time, this repetitive stress leads to severe joint degradation and chronic pain.

Engineering the Spin

To achieve this critical decoupling, manufacturers insert specialized rotation mechanisms between the barbell shaft and the outer sleeves. The two most common systems rely on either solid metal bushings or cylindrical needle bearings. Each design serves a distinctly different style of strength training.

Powerlifting bars typically utilize brass or bronze bushings, which are solid rings that allow a slow, controlled rotation. For powerlifting, optimal rotation is far more restrained to maintain stability under massive loads. This restricted movement keeps the barbell centered during slow, grinding lifts like the heavy squat or bench press.

Excessive spin during a bench press can cause the bar to wobble, compromising the lifter's balance and safety. Bushings provide just enough rotation to prevent binding without introducing unwanted instability. They are highly durable and require significantly less maintenance than their high-speed counterparts.

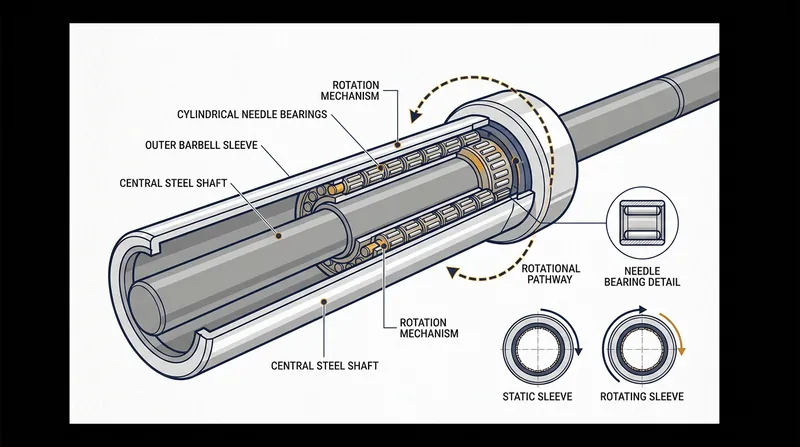

Olympic weightlifting, however, demands a completely frictionless spin that bushings simply cannot provide. Premium Olympic bars rely on needle bearings, which consist of tiny cylindrical metal rollers packed tightly inside the sleeve. These bearings allow the sleeve to rotate at high speeds with virtually zero mechanical resistance.

Needle bearing bar sleeves spin significantly faster than a bushing bar, preventing the rotational inertia of the weight plates from reaching the lifter's grip. Elite weightlifting bars often feature a four-needle-bearing per side design to guarantee maximum rotational freedom. This engineering choice is what separates a good training bar from a competition-ready instrument.[3]

The Biomechanical Stakes

The human wrist is a complex, delicate hinge composed of eight small carpal bones and a network of ligaments. It is engineered for dexterity and precise articulation, not for absorbing violent rotational forces. Forcing the wrist to act as a brake against spinning iron plates is a biomechanical disaster.

When a barbell shaft rotates smoothly on needle bearings, the wrist is spared from fighting the plates' inertia. This specific mechanical allowance perfectly accommodates the turnover phase of a clean or snatch. The lifter's hands can rotate a full 180 degrees without encountering any resistance from the loaded sleeves.

Needle bearings use tiny metal rollers for fast, near-frictionless rotation under heavy loads. This frictionless environment is critical for Olympic lifts where the bar must spin freely during the catch phase. Without it, the athlete would be forced to muscle the plates into position using only their forearm strength.[1]

The protection extends beyond the wrists, safeguarding the elbows and shoulders from cascading torque. When the wrists lock up against a rigid barbell, the rotational force travels straight up the forearm. The elbow joint, which is strictly a hinge, is forced to absorb twisting forces it cannot safely handle.

By neutralizing the torque at the source, rotating sleeves keep the entire kinetic chain aligned and healthy. Lifters can perform high-volume training sessions without accumulating the micro-traumas that end athletic careers. The barbell absorbs the physical punishment so the human body does not have to.

Maintenance and Longevity

The precision engineering inside an Olympic barbell sleeve requires careful maintenance to preserve its frictionless spin. Needle bearings are highly sensitive to dust, chalk, and moisture, which can easily infiltrate the sleeve assembly over time. If debris accumulates inside the mechanism, the bearings will begin to grind and seize.

When a sleeve loses its ability to rotate freely, the barbell immediately becomes a hazard during explosive lifts. A seized bearing transfers torque directly into the lifter's wrists, entirely defeating the purpose of the Olympic design. Regular lubrication with a lightweight machine oil is mandatory to keep the rollers moving.

Dropping a loaded barbell from overhead also places immense sheer stress on the internal bearing cartridges. Manufacturers mitigate this impact by utilizing high-density rubber bumper plates, which absorb the kinetic energy of the fall. This deformation converts the kinetic energy of the falling weight into heat, protecting the steel.

Without bumper plates, the shockwave from a heavy drop would shatter the delicate needle bearings inside the sleeve. The combination of precision rotation and impact resistance makes the modern Olympic barbell a marvel of sports engineering. It is a delicate instrument built to withstand brutal, repetitive punishment.

Material Tolerances and Whip

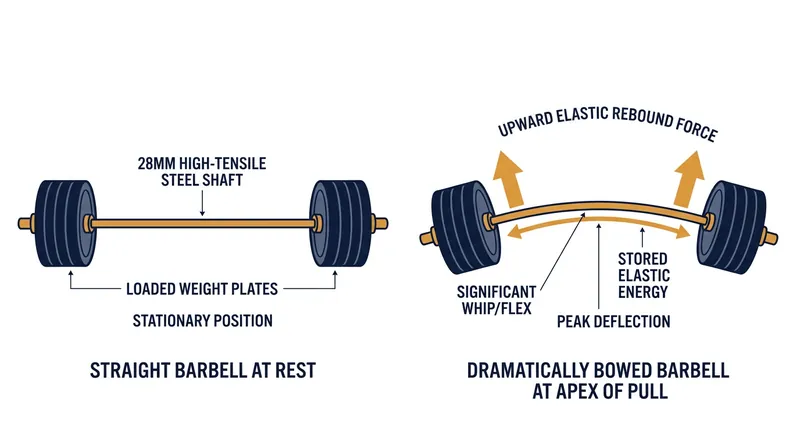

The internal bearings are only one part of the Olympic barbell's specialized engineering. The steel shaft itself must possess a specific diameter and tensile strength to perform correctly under dynamic loads. Olympic bars are typically manufactured with a 28-millimeter shaft, which is slightly thinner than a standard power bar.

This narrower diameter serves two distinct mechanical purposes for the competitive weightlifter. First, it allows for a more secure hook grip, where the thumb is trapped under the fingers to prevent the bar from slipping. Second, the thinner steel introduces a controlled flex, commonly referred to as whip.

Whip allows the barbell to bend slightly as the athlete accelerates the weight upward. Experienced lifters time their movements to match the oscillation of the steel, using the upward rebound to help drive the bar overhead. A rigid, thicker bar would feel dead and unresponsive during these explosive pulls.

To survive this constant bending and dropping, the steel must boast an incredibly high tensile strength. Quality Olympic bars are forged from steel rated at 190,000 PSI or higher, ensuring they return to a perfectly straight alignment after every lift. The combination of high-tensile steel and precision bearings creates a tool perfectly tuned for human performance.[3]
