Countercurrent Gill Architecture Maintains Oxygen Extraction Efficiency Across Aquatic Species

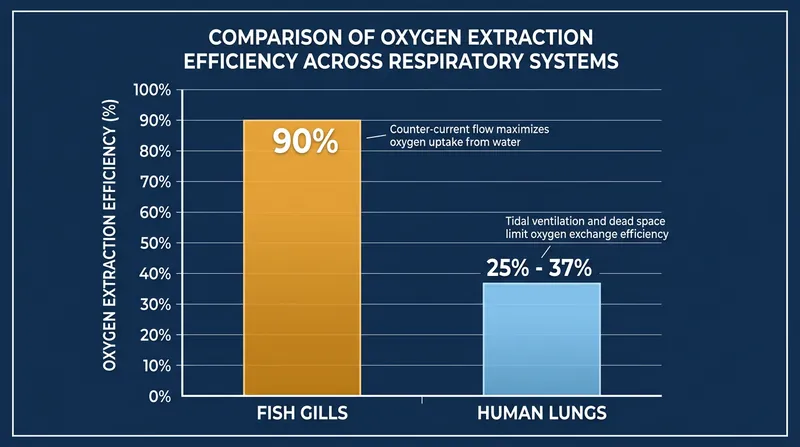

Water holds roughly 33 times less oxygen than an equivalent volume of air. To survive in this oxygen-poor medium, aquatic vertebrates rely on an anatomical mechanism that extracts up to 90 percent of the available dissolved gas. This efficiency dwarfs the performance of human lungs, which capture roughly 25 to 37 percent of the oxygen from an inhaled breath.[2]

The physical properties of water make respiration an energy-intensive process. Water is dense and viscous, requiring significant muscular effort to move across respiratory surfaces. If fish relied on a less efficient extraction method, the energy spent pumping water would exceed the metabolic energy gained from the extracted oxygen.[1]

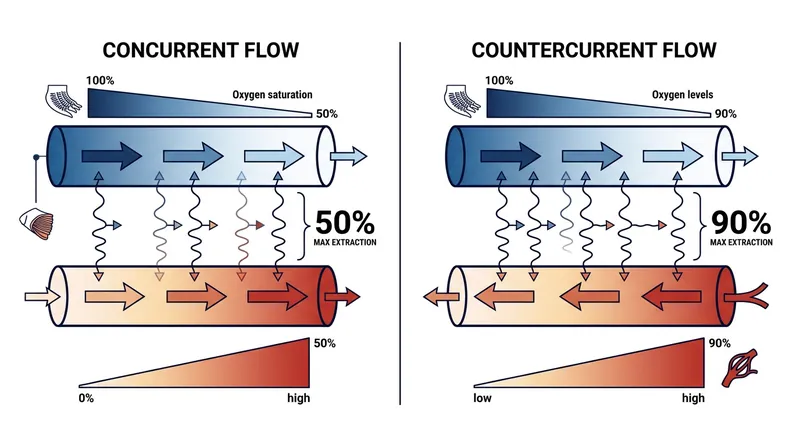

The mechanism driving this high-yield extraction is countercurrent exchange. Inside the gills, blood flows through microscopic capillary networks in the exact opposite direction to the water passing over them. This opposing flow maintains a continuous concentration gradient across the entire length of the exchange surface.[1]

The mathematics of this gradient explain its biological necessity. In a concurrent system, where blood and water move in the same direction, oxygen would diffuse rapidly at first. However, diffusion would stop entirely once the oxygen levels in both fluids equalized at 50 percent, leaving half the available oxygen unextracted.

By running the fluids in opposite directions, the blood always encounters water that has a slightly higher oxygen content. As the blood travels along the capillary, it continuously absorbs oxygen, eventually reaching a saturation level of up to 90 percent before exiting the gill and circulating through the body.

"In contrast, countercurrent oxygen exchange allows the blood to pick up 90 percent of the oxygen in the water," researchers at FISHBIO noted in a 2015 review of the mechanism.

This impressive ability allows aquatic life to thrive in environments that would otherwise be suffocating. It provides the baseline metabolic support required for everything from slow-moving bottom dwellers to high-speed pelagic predators.[4]

The Anatomy of the Exchange

The physical structure of the gill makes this precise fluid dynamic possible. Bony fish possess gill arches on either side of the pharynx, which act as the foundational support for the respiratory system. Water enters the mouth, passes over these arches, and exits through the operculum, a protective bony cover.[3]

Each arch supports two rows of thread-like gill filaments, which extend outward into the water flow. These filaments are the primary structural units of the gill, but the actual gas exchange occurs on an even smaller scale. The filaments are lined with thousands of microscopic folds known as lamellae.[1][3]

The lamellae provide a massive surface area for gas exchange, bringing the circulatory system into near-direct contact with the surrounding water. The membranes separating the blood from the water are incredibly thin, often measuring just a few micrometers across. This minimizes the diffusion distance for both oxygen entering the blood and carbon dioxide exiting it.[1]

The density of water is crucial for maintaining this delicate architecture. The buoyancy of the aquatic environment keeps the filaments and lamellae separated, maximizing the surface area exposed to the flow. When a fish is removed from water, gravity and surface tension cause these structures to collapse together.[2]

This structural collapse is why most fish suffocate in the open air, despite the atmosphere containing a much higher concentration of oxygen. Without the physical separation provided by water, the effective surface area of the gills drops to a fraction of its normal size, halting the gas exchange process.[2]

Pumping Mechanisms and Flow Control

Maintaining the countercurrent gradient requires a continuous, unidirectional flow of water across the gills. Most bony fish achieve this through a dual-pump mechanism involving the mouth and the opercular cavities. By expanding and contracting these chambers in a coordinated sequence, the fish creates a pressure differential that draws water in and forces it backward.[3]

This active pumping allows stationary fish, such as bottom-dwelling flounders or ambush predators, to breathe without moving forward. The muscular effort required for this pumping accounts for up to 10 percent of a resting fish's total energy expenditure, underscoring the metabolic cost of aquatic respiration.[4]

Highly active pelagic species, such as tuna and certain sharks, bypass this muscular pumping entirely through a process called ram ventilation. These fish swim continuously with their mouths open, using their forward momentum to force water over the gills. This method shifts the energy burden from the respiratory muscles to the swimming muscles.[3]

Ram ventilation is so integral to the survival of these fast-moving predators that many have lost the ability to actively pump water. If a tuna or a great white shark stops swimming, the flow of water across the lamellae ceases, the countercurrent gradient collapses, and the animal will suffocate within minutes.[3]

The flow rate of blood through the lamellae is also tightly regulated to match the water flow. If the blood moves too quickly, it will not have enough time to reach full oxygen saturation. The fish's autonomic nervous system constantly adjusts cardiac output and vascular resistance to maintain the optimal ratio between ventilation and perfusion.[4]

Evolutionary Conservation and Variations

The countercurrent architecture is a highly conserved evolutionary trait, appearing across vastly different aquatic lineages. It provides the baseline metabolic support required for everything from slow-moving freshwater carp to high-speed marine predators. This widespread presence suggests that countercurrent exchange is a biological ceiling for aquatic respiratory efficiency.[4]

While the fundamental mechanism remains the same, different species have adapted the surrounding anatomy to suit their specific ecological niches. Crustaceans, such as crabs and lobsters, protect their delicate gills within specialized carapace chambers. They use specialized appendages called scaphognathites to actively bail water over the exchange surfaces.[1]

Cephalopod mollusks, including squid and octopuses, utilize a similar countercurrent gill structure to support their high-energy, jet-propelled locomotion. Their gills are housed within the mantle cavity, and the muscular contractions used for swimming simultaneously force water across the respiratory surfaces, linking locomotion directly to respiration.[1]

Some fish species have evolved supplementary respiratory organs to survive in hypoxic, or low-oxygen, environments. The tarpon, for example, supplements its gill-breathing by using a modified gas bladder to gulp air from the surface. Without this secondary system, the tarpon would drown in the stagnant, oxygen-poor waters it often inhabits.[2]

Mudskippers take this adaptation even further, carrying a supply of water in specialized pouches around their gills when they climb onto land. This allows them to maintain the structural integrity of their lamellae and continue extracting oxygen while out of the water, bridging the gap between aquatic and terrestrial respiration.[2]

Environmental Vulnerabilities

The extreme efficiency of the countercurrent exchange system dictates the strict physiological limits of aquatic life. Because the gill mechanism already operates near its theoretical maximum efficiency, aquatic species have very little physiological margin to compensate for environmental changes. This makes them highly vulnerable to fluctuations in water quality.[4]

As global water temperatures rise, the physical solubility of oxygen decreases, reducing the total amount of gas available for extraction. Warmer water holds less dissolved oxygen, directly shrinking the concentration gradient that drives the countercurrent exchange. This physical reality cannot be overcome by simply pumping more water.[4]

Compounding this issue, higher temperatures simultaneously increase the metabolic rates of cold-blooded marine life. A fish in warmer water requires more oxygen just to maintain its baseline physiological functions, exactly when the environment is providing less. This dual pressure creates a metabolic squeeze that threatens the survival of sensitive species.[4]

Industrial pollution and agricultural runoff introduce additional challenges by physically damaging the delicate gill structures. Suspended particulate matter can clog the lamellae, while chemical irritants cause the gills to produce excess mucus. This mucus layer thickens the diffusion barrier, slowing the transfer of oxygen into the bloodstream.[4]

The ongoing acidification of the oceans also interferes with the blood's ability to transport the extracted oxygen. Lower pH levels alter the binding affinity of hemoglobin, making it harder for the blood to pick up oxygen at the gills and release it at the tissues. This systemic disruption highlights the fragility of the aquatic respiratory chain.[4]
