Contrast Painting Breaks Motion Smear: Why One Black Turbine Blade Cuts Bird Deaths by 70 Percent

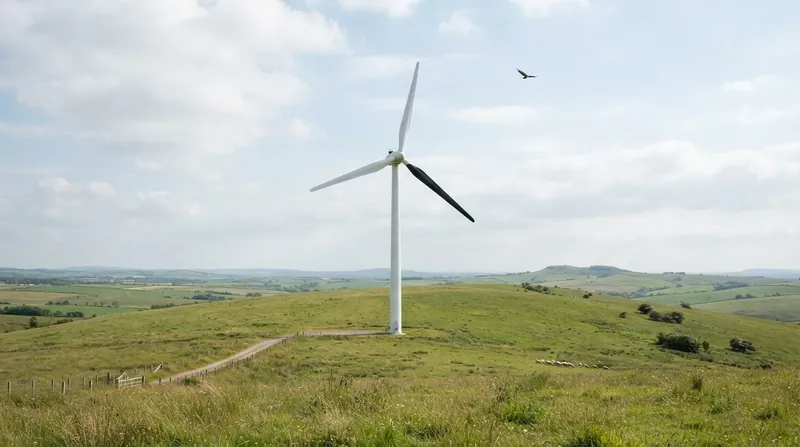

Painting a single wind turbine blade black reduces bird fatalities by over 70 percent because it breaks a visual illusion called motion smear. At high speeds, standard white blades blur into a uniform, invisible disc to avian eyes. Introducing a single high-contrast black blade creates a visible flicker that gives birds the visual cue they need to alter their flight paths.[1][5]

The mechanism behind this collision crisis is rooted in the physics of rotational velocity. The tips of modern wind turbine blades can travel at speeds up to 250 kilometers per hour. At that velocity, the moving white blades effectively blur into invisibility for birds attempting to judge the structure's position and avoid it.[1]

Avian visual systems did not evolve to process stationary towers with invisible, high-speed moving parts. While birds possess exceptional visual acuity for spotting prey at a distance, their temporal resolution struggles with the rapid, repetitive motion of a turbine rotor against a bright sky. The blades simply disappear into the background.[5]

This sensory blind spot has created a significant ecological bottleneck for the renewable energy transition. Wind farms are routinely delayed or denied permits due to their projected impact on local avian populations. Finding a passive, low-cost structural modification to make turbines visible has been a priority for both conservationists and energy developers.[2][5]

The Mechanics of Motion Smear

The breakthrough data on contrast painting emerged from the Smøla wind power plant, a 152.4-megawatt facility located on a bird-rich island off Norway's west coast. The region hosts Norway's densest population of white-tailed eagles, creating a high-conflict zone between clean energy infrastructure and apex predators.[1][4]

Between 2006 and 2016, researchers from the Norwegian Institute for Nature Research (NINA) monitored the site to quantify the collision rates. "Collision of birds, especially raptors, is one of the main environmental concerns related to wind energy development," noted Roel May, a senior researcher at NINA who led the investigation.[4]

The facility was recording six to nine white-tailed eagle fatalities annually, triggering intense public opposition. To test a solution derived from earlier laboratory experiments on motion smear, the research team initiated a controlled field trial in August 2013. They painted a single rotor blade black on four operational turbines.[1]

The experimental design relied on rigorous, long-term monitoring to isolate the effect of the paint. The team recorded avian fatalities for seven and a half years before the intervention, and then tracked the painted turbines alongside four unpainted control turbines for another three and a half years.[1][4]

To ensure accurate mortality counts, the researchers deployed trained sniffer dogs to locate bird carcasses and feathers in the dense vegetation beneath the towers. This methodology accounted for variables like scavenger removal and human searcher inefficiency, providing a highly reliable dataset on the actual collision rates.[4]

Disproportionate Benefits for Raptors

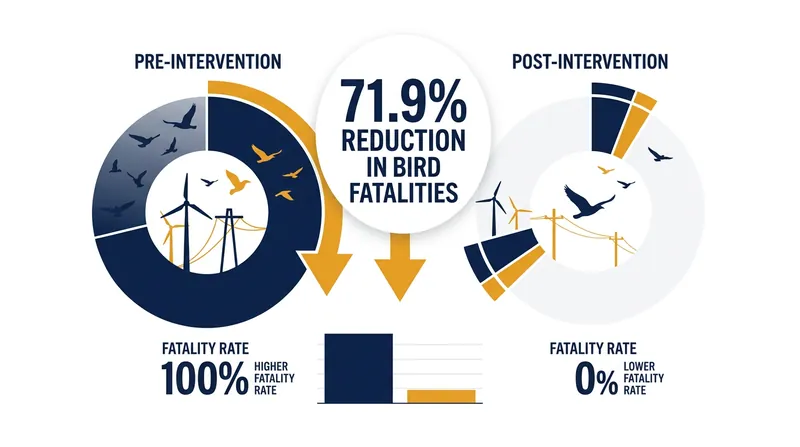

The results of the Smøla trial demonstrated an average 71.9 percent reduction in the annual fatality rate at the painted turbines relative to the unpainted controls. The introduction of a single black blade successfully interrupted the visual smear, allowing birds to perceive the rotor sweep area as an impenetrable obstacle.[1][4]

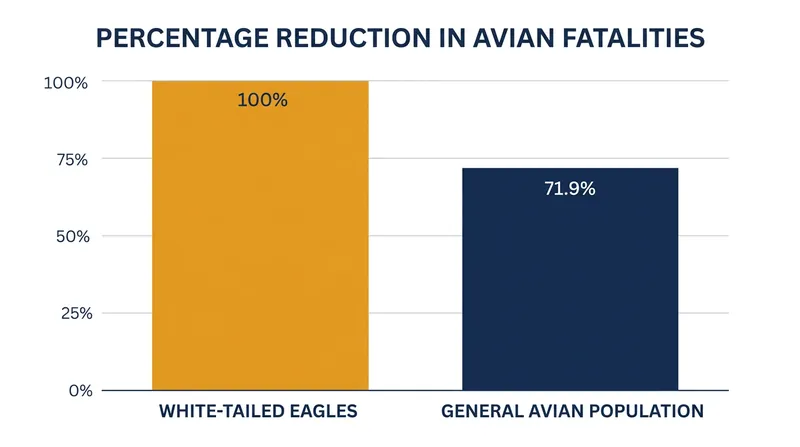

The intervention proved exceptionally effective for large birds of prey. Following the application of the black paint, researchers recorded zero white-tailed eagle carcasses at the modified turbines. This 100 percent reduction for apex raptors suggests that motion smear is a particularly lethal deficit for large, low-maneuverability species.[1][5]

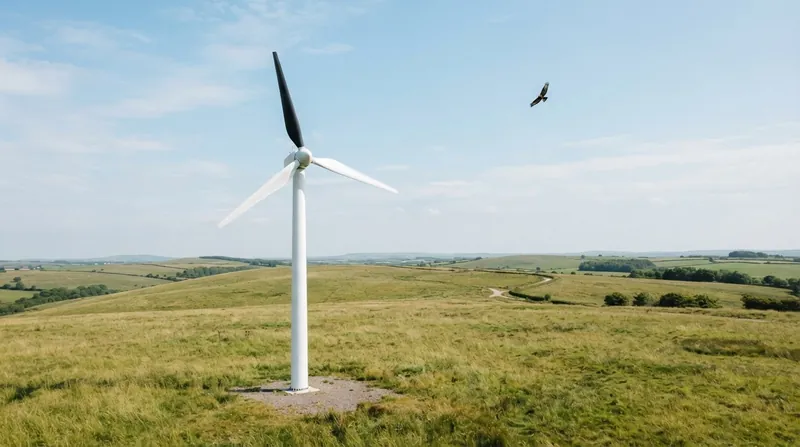

Raptors are uniquely vulnerable to turbine collisions due to their foraging behavior. Eagles and hawks frequently scan the ground for prey while flying, leaving them blind to obstacles directly in their flight path. By the time they look up, a rapidly spinning white blade is often too close to evade.[2][5]

The high-contrast flicker created by the black blade acts as an early warning system. Because the black blade does not blend into the sky, it registers in the bird's peripheral vision even when the animal is looking downward. This provides the crucial seconds needed for a heavy bird to adjust its trajectory.[5]

Protecting long-lived species like eagles is critical for population stability. Unlike smaller birds that reproduce rapidly, eagles mature slowly and raise few chicks. Even a small number of localized fatalities can trigger a population decline, making the zero-mortality result at the painted turbines a profound conservation victory.[2][4]

The Economics of Retrofitting

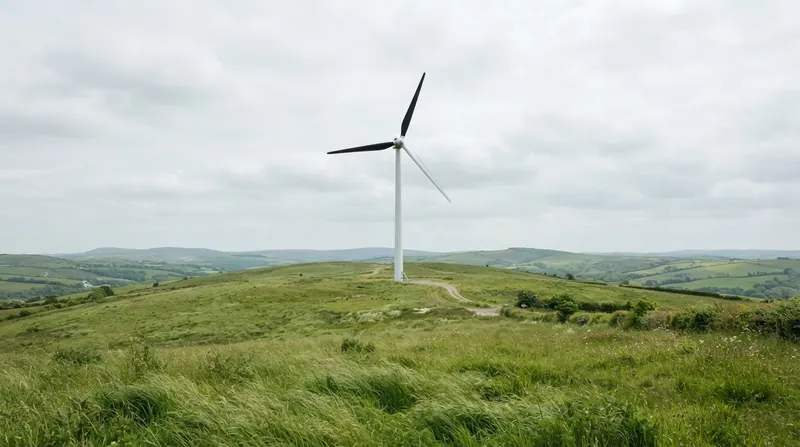

Despite the biological success of the Smøla experiment, implementing the solution on existing infrastructure presents severe logistical hurdles. Because the Norwegian turbines were already operational, technicians had to paint the blades while they remained mounted to the nacelle, suspended hundreds of feet in the air.[1][2]

Retrofitting an active wind farm requires specialized rope-access crews, favorable weather conditions, and significant facility downtime. The financial cost of halting power generation to manually paint a massive fiberglass structure in the field often outweighs the operational budgets allocated for environmental mitigation at older facilities.[2][5]

The economic calculus shifts entirely when the intervention is integrated into the manufacturing process. "If implemented before construction, this cost will be minimized," the NINA researchers concluded in their published findings. Applying black paint at the factory adds negligible expense to the production of a multi-million-dollar turbine.[1][2]

Supply chain integration is now the primary focus for advocates of the contrast-painting method. If turbine manufacturers standardize the option for a single black blade, developers can deploy the mitigation strategy seamlessly, bypassing the prohibitive costs of post-construction retrofitting while accelerating their environmental permitting processes.[3][5]

Regulatory agencies are beginning to take notice of the cost-benefit ratio. As the data on motion smear becomes more robust, environmental ministries could eventually mandate high-contrast blade designs for any new wind farm proposed in known migratory corridors or critical raptor habitats.[4][5]

Scaling the Solution Globally

To validate the Norwegian findings across different ecosystems, energy operators are launching larger replication trials. In the United States, the energy company PacifiCorp initiated a study in 2023, painting individual blades across 36 turbines at its Glenrock wind farm in Wyoming to test the efficacy on North American species.[1][5]

A parallel effort is underway in the Netherlands, where the energy company RWE and the province of Groningen are testing the intervention at the Eemshaven wind facility. The Dutch trial involves painting seven existing turbines, which feature massive 140-meter tip heights, to evaluate the impact on local coastal bird populations.[3][5]

"The Netherlands is home to different bird species and the landscape is very different from that in Norway, as is the meteorological conditions," explained Jesper Kyed Larsen, an environmental expert at Vattenfall, which is collaborating on the Eemshaven study. The trial is expected to run through the end of 2024.[3]

These international trials are essential because the original Smøla study, while groundbreaking, relied on a relatively small sample size of just four painted turbines. Confirming that the 71.9 percent fatality reduction holds true across diverse topographies and avian communities is the next required step for global standardization.[1][3]

Researchers must also evaluate potential secondary impacts, such as whether the black paint affects the structural integrity of the blade by absorbing more solar heat. Thermal expansion in composite fiberglass materials could theoretically alter the aerodynamic profile of the rotor, necessitating specialized heat-resistant coatings.[3][5]

Bridging Energy and Conservation

The visual impact on human communities is another variable under review. Wind farms already face opposition regarding aesthetic changes to landscapes and the "shadow flicker" effect caused by spinning blades. Regulators must determine if a high-contrast black blade exacerbates visual disturbances for nearby residents compared to uniform white rotors.[5]

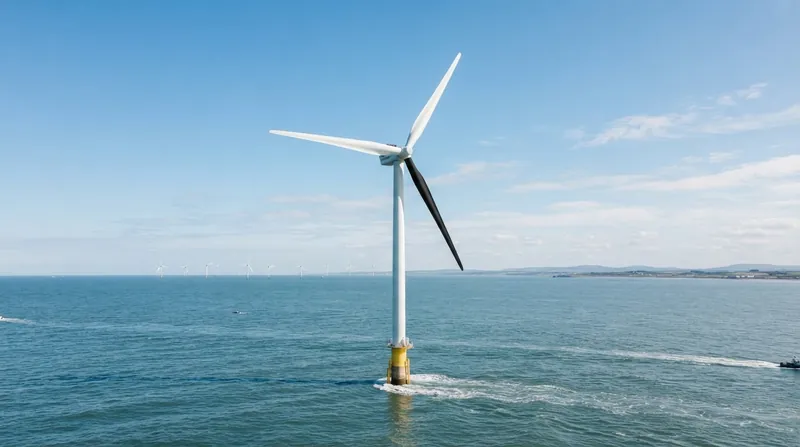

For offshore wind developments, where human visual impact is negligible, the contrast-painting strategy could be deployed aggressively. Offshore turbines intersect with massive flocks of pelagic seabirds, and breaking the motion smear over the open ocean could prevent thousands of collisions annually without triggering local zoning disputes.[3][5]

The simplicity of the black-blade solution underscores a shift in how engineers approach ecological design. Rather than relying solely on active deterrents like radar-triggered shutdowns or acoustic alarms, developers are learning to integrate biological constraints directly into the passive physical structure of the hardware.[5]

As the global transition to renewable energy accelerates, the footprint of wind infrastructure will inevitably expand into sensitive habitats. Mitigating the ecological friction of that expansion is not just a conservation imperative; it is a systemic requirement for scaling clean electricity at the speed the climate demands.[2][5]

The data from Smøla proves that clean energy does not have to come at the expense of local biodiversity. By understanding how avian visual systems process high-speed motion, the wind industry can deploy a simple coat of paint to fundamentally alter the ecological cost of a spinning rotor.[1][4]
