Comparing Nuclear Reactor Generations: How Gen IV Designs Differ from the Light-Water Fleet

For decades, the public understanding of nuclear power has been defined by massive concrete cooling towers, complex active safety systems, and the inherent risks of pressurized water. But as data centers, heavy manufacturing, and national grids demand uninterrupted zero-carbon heat and electricity, the physical limitations of that legacy technology are becoming a structural bottleneck. The global nuclear industry is now attempting a fundamental pivot from Generation III light-water systems to Generation IV advanced reactors, a transition that requires rethinking the basic physics of how a reactor core operates.[4]

The current global fleet is overwhelmingly composed of Generation II and III light-water reactors (LWRs). These systems rely on ordinary water to serve two distinct purposes simultaneously: acting as a coolant to carry heat away from the nuclear fuel, and acting as a moderator to slow down neutrons so that the fission chain reaction can be sustained. While this dual-use design has successfully powered grids for half a century, it imposes strict thermodynamic limits on the entire facility.[1]

The fundamental limitation of the legacy fleet is the boiling point of water itself. To generate electricity efficiently, the coolant must reach temperatures around 300°C. Because water naturally boils at 100°C, legacy reactors must keep the coolant under immense pressure—often exceeding 2,000 pounds per square inch—to keep it in a liquid state at those high temperatures.[1]

Containing that extreme pressure dictates the architecture of the entire plant. It requires massive, forged steel pressure vessels and thick concrete containment domes designed to hold the steam that would flash-boil if a pipe were to break. This reliance on high pressure is the primary driver of the enormous capital costs and decade-long construction timelines associated with traditional nuclear power.[1][4]

Generation IV reactors bypass this thermodynamic bottleneck by abandoning water entirely. By utilizing alternative coolants such as helium gas, liquid metals, or molten salts, these advanced designs decouple high temperatures from high pressures, fundamentally altering the safety profile and economic potential of the plant.[3]

The Generation IV International Forum (GIF), a cooperative framework of major nuclear nations, recognizes six distinct advanced reactor technologies that meet the criteria for the next era of nuclear power. While they differ wildly in their engineering, they share a common goal: achieving higher thermal efficiencies, closing the nuclear fuel cycle, and relying on passive safety systems that do not require human intervention or active power to prevent a meltdown.[3]

High-temperature gas-cooled reactors (HTGRs) represent one of the most mature Generation IV pathways. Instead of water, these systems utilize pressurized helium to cool the reactor core. Because helium is an inert noble gas, it does not react chemically with the fuel or the reactor components, and it does not become radioactive as it passes through the core.[2]

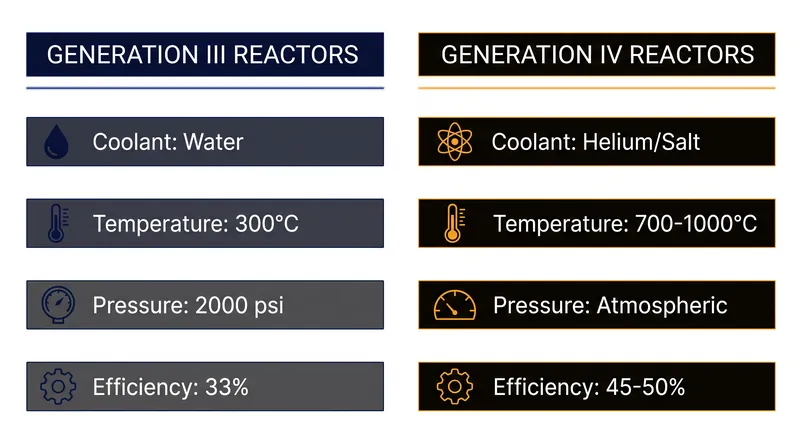

Crucially, helium cannot boil. This allows HTGRs to operate at extreme core temperatures ranging from 700°C to 1,000°C, vastly exceeding the 300°C limit of light-water reactors. This high-grade heat translates to significantly higher electrical generation efficiency, jumping from the legacy average of roughly 33% to nearly 50%.[2][3]

Beyond electricity, this extreme heat unlocks direct industrial applications that light-water reactors physically cannot support. The 700°C+ output from an HTGR can be piped directly into chemical plants to decarbonize steelmaking, synthesize zero-carbon fertilizers, or produce green hydrogen at scale, replacing the fossil fuels currently burned to generate industrial process heat.[3][4]

Molten salt reactors (MSRs) take a radically different approach to core physics. Instead of using solid fuel rods cooled by a separate fluid, many MSR designs dissolve the nuclear fuel directly into a liquid fluoride or chloride salt. The salt acts as both the fuel carrier and the coolant, circulating through the core where the geometry allows it to achieve criticality and generate heat.[1]

Because these salts have exceptionally high boiling points, MSRs operate at near-atmospheric pressure. This eliminates the need for the massive steel pressure vessels that define legacy plants, allowing the reactor components to be manufactured in standard factories rather than specialized heavy-forging facilities. The low pressure also removes the physical mechanism that could drive a radioactive plume into the atmosphere during an accident.[1][4]

The safety case for MSRs relies on physics rather than active pumps. If the reactor overheats or loses external power, a freeze plug at the base of the reactor vessel naturally melts. Gravity then drains the liquid fuel-salt mixture into a passively cooled holding tank located underground. In this tank, the fuel spreads out into a geometry that cannot sustain a fission reaction, causing the system to safely shut itself down without operator intervention.[4]

Sodium-cooled fast reactors (SFRs) utilize liquid metal to transfer heat. Like molten salts, liquid sodium operates at near-atmospheric pressure while absorbing immense amounts of thermal energy. However, the defining characteristic of an SFR is not just its coolant, but the speed of its neutrons.[3]

Unlike light-water reactors, which must slow down neutrons to sustain a reaction, fast reactors operate with high-energy, unmoderated neutrons. This "fast" spectrum allows the reactor to fission the long-lived actinides—the highly radioactive elements that make up the most problematic components of legacy nuclear waste.[1]

By consuming these actinides, fast reactors can effectively run on the "spent" fuel discharged by Generation II and III plants. This capability turns nuclear waste from a millennia-long disposal liability into a valuable energy resource, closing the nuclear fuel cycle and reducing the radioactive lifespan of the remaining byproduct from tens of thousands of years to just a few centuries.[1][3]

The fuel itself is also undergoing a generational shift to match these new coolants. While legacy reactors use enriched uranium pellets encased in zirconium metal tubes—which can react with steam to produce explosive hydrogen gas at extreme temperatures—many Gen IV designs, particularly gas-cooled reactors, rely on TRISO (TRi-structural ISOtropic) particles.[2]

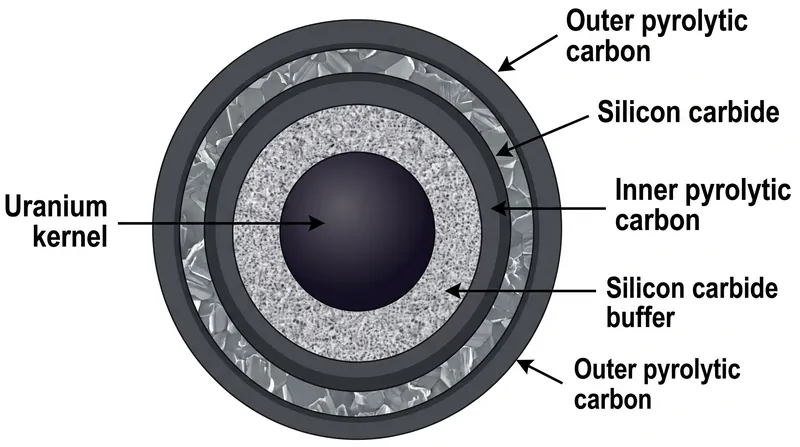

Each TRISO particle is a poppy-seed-sized kernel of uranium wrapped in multiple layers of carbon and ceramics. These layers effectively create a microscopic containment vessel around every individual fleck of fuel. TRISO particles are physically incapable of melting under any temperature the reactor can generate, eliminating the possibility of a core meltdown at the structural level.[2]

Despite these overwhelming physical advantages, the transition to Generation IV faces steep regulatory and supply chain hurdles. Global nuclear regulatory frameworks have spent fifty years optimizing for pressurized water; licensing a reactor that uses liquid metal or molten salt requires rewriting safety codes from scratch, a process that inherently delays deployment.[4]

Furthermore, most Gen IV designs require High-Assay Low-Enriched Uranium (HALEU), which is enriched to between 5% and 20%—higher than the 3% to 5% used in legacy plants. The supply chain for HALEU is currently severely constrained, requiring massive new investments in Western enrichment infrastructure to support commercial-scale rollouts.[4]

As global energy systems strain under the dual mandates of deep decarbonization and surging power demand from electrification and artificial intelligence, the limitations of water-cooled reactors are becoming apparent. The commercialization of Generation IV technology represents a necessary evolution: shifting the nuclear industry from managing the volatile risks of pressurized water to harnessing the inherent, passive safety of advanced physics.[3][4]
