Cold Tungsten and the Inrush Spike: Why Incandescent Filaments Snap at the Moment of Switch-On

A person walks into a dark room, flips a wall switch, and hears a sharp, metallic pop. The glass envelope flashes a brilliant, momentary blue, and the room goes permanently dark. The incandescent bulb has failed, and it almost always happens at the exact millisecond power is applied.[3]

This timing is not a coincidence, nor is it simply the end of a gradual wearing-out process. The failure is driven by a massive, instantaneous surge of electrical current that strikes the metal before it has time to defend itself.[1]

At the heart of the phenomenon is the physical nature of the filament itself. Since 1906, when William D. Coolidge developed a method to draw sintered metal into fine wire for the General Electric Company, incandescent lamps have relied on ductile tungsten.[2]

Tungsten possesses the highest melting point of any metallic element, surviving temperatures well above 3,400 degrees Celsius. However, its ability to resist the flow of electricity changes drastically depending on how hot it is, creating a fatal vulnerability when the metal is cold.[2]

The Physics of Cold Tungsten

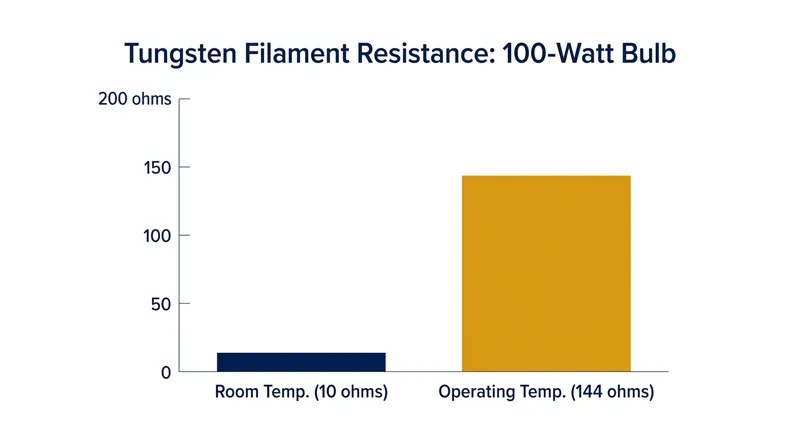

Metals generally exhibit a positive temperature coefficient of resistance, meaning they impede electrical flow more effectively as they heat up. When a tungsten filament sits in a dark room at an ambient temperature of 20 degrees Celsius, its electrical resistance is remarkably low.[1]

Engineers note that a standard 120-volt, 100-watt bulb should theoretically measure 144 ohms of resistance to operate correctly. Yet, when tested with a multimeter straight out of the box, the cold bulb measures a mere 10 ohms.[1]

The discrepancy is not a meter error or a wiring fault. It is simply the fundamental physical behavior of a tungsten filament, whose electrical resistance rises sharply in tandem with its extreme operating temperature.[3]

Because the cold resistance is roughly one-fourteenth of the hot operating resistance, the filament offers almost no barrier to the incoming voltage. According to Ohm's Law, pushing 120 volts through a 10-ohm wire results in a massive, immediate current draw.[1][3]

This phenomenon is known as inrush current. While a 100-watt bulb normally draws about 0.83 amps of steady-state current, the cold switch-on triggers a surge that can easily exceed 12 amps before the metal has a chance to react.[1]

The Fourteenfold Power Spike

During the first few milliseconds after the switch is closed, the bulb is not operating at 100 watts. Instead, it momentarily draws over 1,400 watts of power, forcing the thin wire to absorb an extreme amount of thermal and magnetic energy.[1][3]

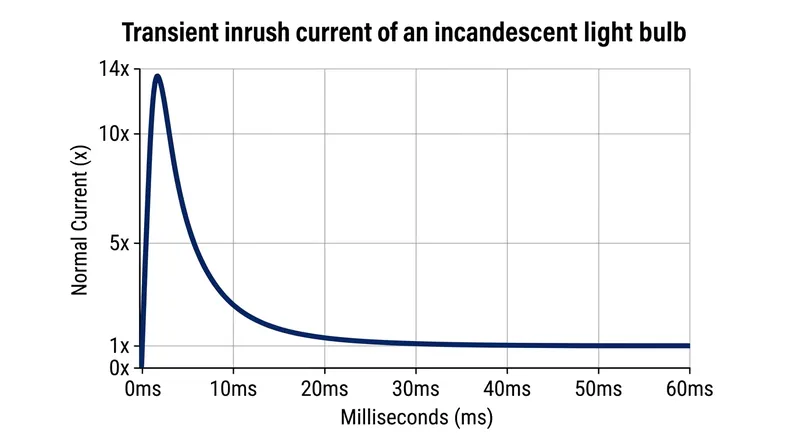

The technical documentation confirms the severity of this transient phase. Because of the low cold resistance, a massive surge of electricity flows at the exact instant of switching on, typically reaching around 14 times the normal operating current.[2]

This fourteenfold spike creates intense Joule heating, rapidly accelerating the filament's temperature from 20 degrees to over 2,500 degrees Celsius. As Wikipedia's technical summary notes, "For a 100-watt, 120-volt general-service lamp, the current stabilizes in about 0.10 seconds, and the lamp reaches 90% of its full brightness after about 0.13 seconds."[2]

During those 50 milliseconds, the tungsten is subjected to severe mechanical stress. The rapid thermal expansion physically shocks the coiled wire, while the massive current induces strong electromagnetic Lorentz forces that attempt to physically distort the filament.[2][3]

If the filament were perfectly uniform, the wire would heat evenly and survive the shock without issue. However, incandescent bulbs do not remain uniform; from the moment they are first manufactured, they begin a slow, invisible process of self-destruction.[2]

Evaporation and the Notch Effect

When an incandescent lamp operates at 2,500 degrees Celsius, the tungsten atoms on the surface of the wire gain enough thermal energy to sublimate. They slowly evaporate off the filament and condense on the cooler glass envelope, causing the characteristic dark smudging seen on older bulbs.[2]

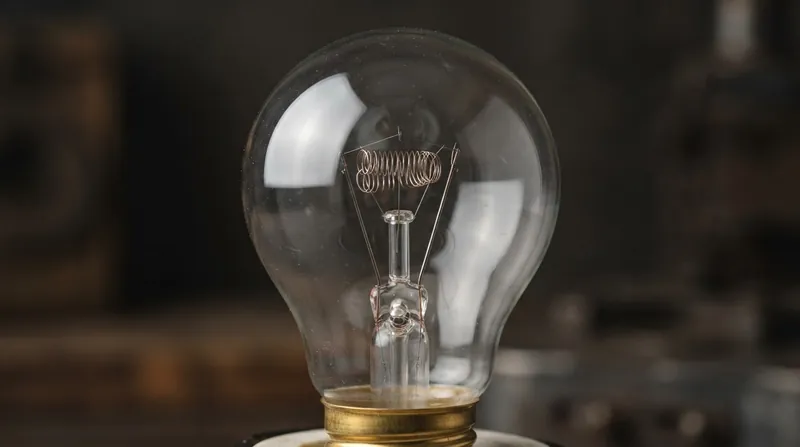

This evaporation does not happen evenly across the entire coil. Microscopic variations in the wire's crystalline structure cause certain regions to shed atoms faster than others, and over hundreds of hours of use, these localized areas thin out into narrow notches.[2][3]

These thinned sections eventually become the bulb's fatal flaw. Because they have significantly less cross-sectional area, the microscopic notches naturally possess a higher electrical resistance than the thicker, healthier sections of the surrounding tungsten wire.[2]

When the fourteenfold inrush current hits a degraded bulb, the thinnest notch acts as a severe bottleneck. It absorbs a disproportionate share of the 1,400-watt power spike, heating up far faster than the rest of the cold tungsten.[1][3]

The localized temperature at the notch quickly exceeds tungsten's extreme 3,422-degree Celsius melting point. The metal liquefies and vaporizes in a fraction of a second, physically breaking the electrical circuit and extinguishing the light forever.[2]

The Blue Flash and the Arc

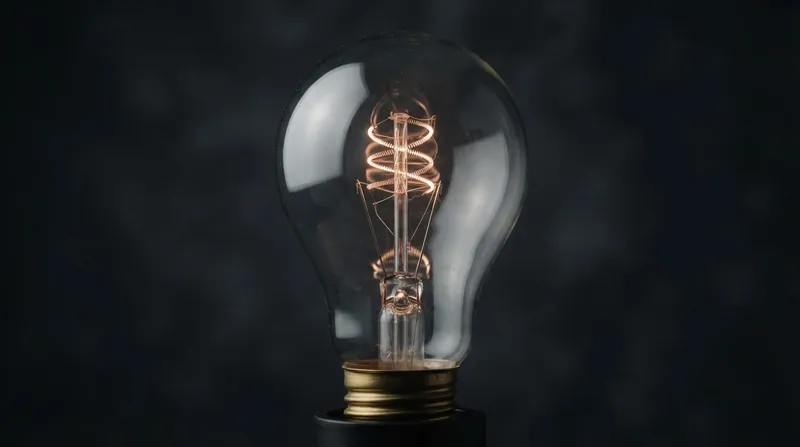

The characteristic blue flash that accompanies the switch-on pop is a direct result of this localized vaporization. As the notch melts and the wire separates, the massive inrush current does not immediately stop flowing across the gap.[3]

Instead, the 120-volt electrical potential bridges the microscopic divide, ionizing the argon or nitrogen fill-gas sealed inside the bulb. This creates a brief, high-temperature plasma arc between the two broken ends of the tungsten filament.[2][3]

The arc vaporizes even more of the surrounding metal, emitting a brilliant burst of blue-white light that is significantly brighter than the bulb's normal output. The sudden expansion of the superheated gas creates the audible metallic pop against the glass envelope.[3]

This entire violent sequence—from the switch closing to the arc extinguishing—happens in less time than it takes a human eye to blink. By the time the room registers as dark, the filament has already cooled back into two severed, brittle pieces.[3]

Why Long-Life Designs Still Snap

Manufacturers frequently market long-life incandescent bulbs, claiming thousands of hours of extended utility. However, a skeptical look at the underlying physics reveals that these designs do not eliminate the switch-on vulnerability; they merely delay the notch formation.[2][3]

Standard long-life bulbs simply use a thicker tungsten wire and operate it at a slightly lower temperature. While this reduces the overall rate of evaporation, the metal still exhibits the exact same positive temperature coefficient of resistance.[2]

Halogen lamps attempt to solve the evaporation problem chemically rather than mechanically. By filling the quartz envelope with a halogen gas like iodine or bromine, the lamp initiates a chemical cycle that redeposits evaporated tungsten back onto the filament.[2]

Yet, this redeposition is not perfectly targeted to the thinnest notches. The halogen cycle extends the filament's structural integrity, but the cold resistance of a halogen bulb remains roughly one-fourteenth of its hot resistance, leaving it equally vulnerable.[2]

Engineering analyses confirm that the hot filament resistance in a hotter-running quartz-halogen lamp operating at 3,000 degrees Celsius can be over 14 times its cold resistance. When a halogen bulb eventually degrades, it still snaps at the exact moment of switch-on.[2]

The Millisecond Survival Window

The only reliable way to prevent the switch-on pop is to alter the delivery of the electricity itself. Industrial lighting systems and theatrical dimmers often employ dedicated soft-start circuitry to mitigate the massive inrush current.[3]

By using a thermistor or a triac to slowly ramp up the voltage over several alternating-current cycles, these systems gently warm the tungsten. As the metal heats, its resistance climbs, safely choking off the current before it can reach the destructive fourteenfold peak.[3]

Large wattage electrical supplies use dedicated soft starts to restrict this initial surge. The transient spike typically lasts from three to five cycles of 60-hertz alternating current, decaying rapidly over a span of 50 to 80 milliseconds.[3]

For the standard household bulb wired to a mechanical wall switch, no such protection exists. Every time the switch is thrown, the cold tungsten must survive a brutal, 50-millisecond race against its own electrical resistance.[1][3]

If the filament can heat up fast enough to choke the 12-amp surge, the bulb lives to shine for another day. If a notch has grown too thin, the inrush current will find it, and the bulb will end its life in a final, brilliant arc.[3]
