Chemists Shrink Gallium Nitride Into Nanocrystals, Unlocking Printable Flexible Electronics

A joint research team from the University of Chicago and the Department of Energy's Argonne National Laboratory has successfully synthesized gallium nitride and other metal nitrides into colloidal nanocrystals. The breakthrough, detailed in an evidence pack of recent peer-reviewed literature, achieves a feat previously considered chemically impossible due to the extreme bond strength of the materials involved.[1][2]

Published in the journal Nature, the study outlines a novel "molten-salt method" that bypasses the limitations of traditional chemical synthesis. By rethinking the liquid medium used to grow microscopic crystals, the researchers have opened a new pathway for manufacturing some of the technology sector's most critical components.[1][6]

Gallium nitride (GaN) is the foundational semiconductor material for modern optoelectronics. It is the engine inside almost all contemporary LED lighting, laptop screens, and high-frequency power electronics. However, its physical nature has always dictated how it can be used: until now, high-quality GaN could only be grown as rigid, brittle bulk crystals.[2]

The scientific community has long sought to miniaturize such materials. Nanocrystals, or quantum dots, are so transformative that their discovery was awarded the 2023 Nobel Prize in Chemistry. Yet, despite their utility in creating vibrant displays and boosting chemical reactions, scientists have historically been restricted to a limited palette of materials, such as cadmium selenide or indium phosphide, when making them.[2][6]

The barrier to creating metal nitride nanocrystals lies in their chemical resilience. Metal nitrides form incredibly strong bonds. Dmitri Talapin, the study's senior author, compared the ions in these materials to "tango dancers" that refuse to change partners, making it exceptionally difficult to coax them into forming perfect, independent microscopic structures.[2]

Traditional colloidal synthesis relies on organic solvents to suspend and grow nanoparticles. However, these standard liquids boil or chemically decompose at temperatures far below the extreme heat required to crystallize metal nitrides. When chemists attempted to force the reaction, the results were consistently poor-quality, defective materials.[1][3]

In crystal formation, ions must rapidly attach and detach to find their optimal geometric arrangement—a thermodynamic concept known as microscopic reversibility. If the bonds are too strong to break and reform dynamically during the growth phase, any structural mistake becomes permanent, which Talapin described as a "death sentence" for the resulting nanocrystal.[1][5]

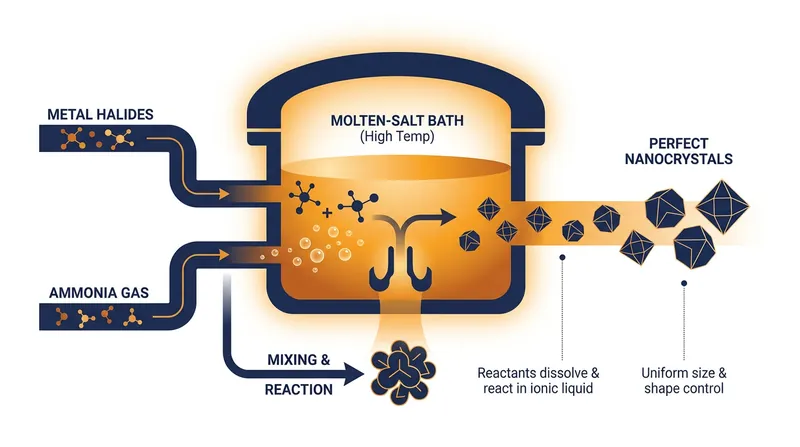

To solve this, the UChicago and Argonne team abandoned organic solvents entirely. Instead, they turned to molten inorganic salts—solid salts heated until they melt into a liquid state—to serve as the high-temperature reaction medium.[1][2]

The critical innovation came from combining this molten salt bath with pressurized ammonia gas. By carefully tuning the temperature and the ammonia pressure, the researchers discovered a specific thermodynamic "sweet spot." Under these exact conditions, the stubborn metal-nitrogen bonds could finally detach and reattach with the necessary fluidity.[1][6]

The evidence of their success is visually striking. Electron microscopy and X-ray diffraction confirmed the creation of highly crystalline, uniform gallium nitride nanoparticles. These structures are so small that millions to billions of them could comfortably fit on the surface of a human fingernail.[2]

Crucially, the evidence pack demonstrates that this is not a one-off anomaly, but a generalized synthesis platform. The research team successfully applied the molten-salt method to produce nearly a dozen different metal nitride nanocrystals, proving the versatility of the underlying chemistry.[1][2]

Beyond gallium nitride, the newly synthesized materials include titanium nitride, which is highly valued for durable medical implants; niobium nitride, an industrially critical superconductor; and molybdenum nitride, a versatile chemical catalyst used in energy applications.[2][4]

The immediate consequence of this breakthrough is that gallium nitride is now solution-processable. By shrinking the rigid semiconductor into nanoscale crystals, the material can be suspended in a colloidal liquid, effectively turning high-performance LED technology into a printable ink.[2][6]

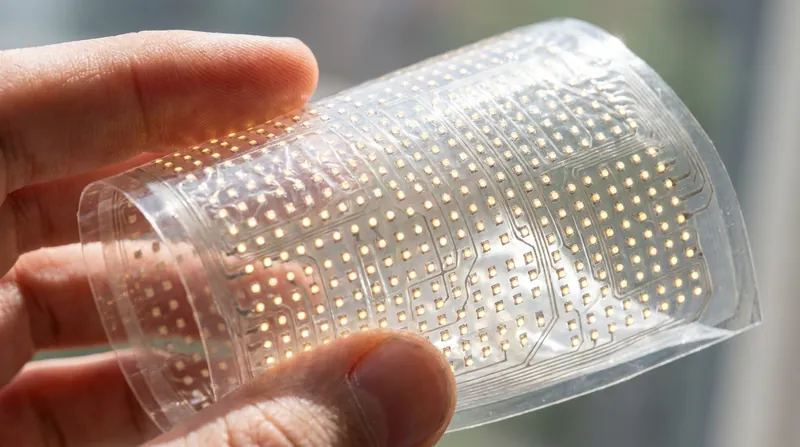

This unlocks the horizon for true flexible electronics. Rather than growing LEDs on stiff wafers inside vacuum chambers, manufacturers could theoretically inkjet-print GaN directly onto bendable plastics, weave it into smart fabrics, or blend it into stretchable polymers for wearable health monitors.[2][4]

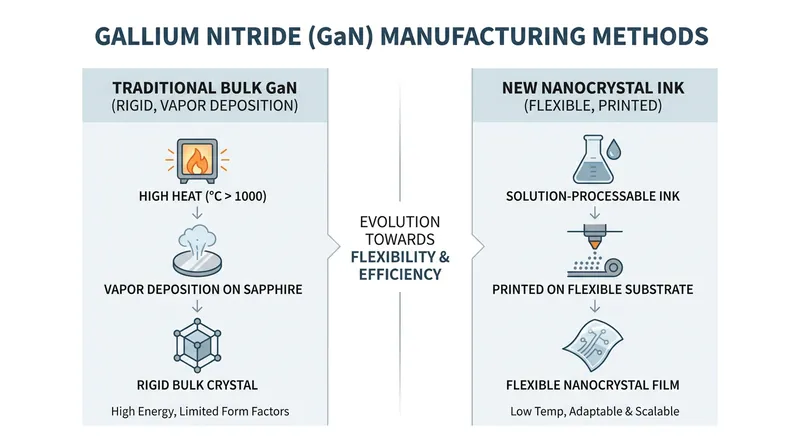

The economic implications are equally significant. Traditional GaN manufacturing requires high-temperature vapor deposition techniques, such as Metal-Organic Chemical Vapor Deposition (MOCVD), layered onto expensive sapphire or silicon carbide substrates. Solution processing could drastically lower the barrier to entry and the cost of manufacturing optoelectronics.[5][6]

However, transparent uncertainty remains regarding industrial scalability. While the fundamental chemistry is now proven in laboratory vials, scaling a molten-salt synthesis process that requires high-pressure ammonia handling into massive industrial vats introduces complex, unresolved chemical engineering hurdles.[6]

Furthermore, device integration presents its own challenges. The researchers have successfully synthesized the raw "ink," but printing highly efficient, defect-free LED displays that rival the intense brightness and longevity of traditional bulk GaN remains an unproven engineering task. Electrons must travel efficiently between the printed nanoparticles without losing energy to resistance.[3][6]

Despite these engineering challenges, the Nature publication represents a foundational paradigm shift in inorganic chemistry. By rewriting the rules of what materials can be miniaturized, the molten-salt method paves the way for a new generation of ubiquitous, flexible, and printable technologies.[1][6]
