800-Volt vs. 400-Volt EV Architectures: The Trade-Offs Shaping Charging Speeds and Vehicle Costs

The most pervasive myth in electric vehicle engineering is that an 800-volt architecture automatically charges twice as fast as a 400-volt system. The reality is far more systems-minded: voltage does not dictate speed on its own, but it dictates the thermal limits of the vehicle.

As automakers push for charging times that rival internal combustion refueling, the electrical architecture of the vehicle has become the primary battleground. The industry is currently split between the established 400-volt standard and the emerging 800-volt frontier.[1]

To understand the trade-off, one must look at the basic physics of electrical power, which is simply voltage multiplied by current. When a driver plugs into a 250-kilowatt direct-current (DC) fast charger, the vehicle must absorb a massive amount of energy in a very short window.

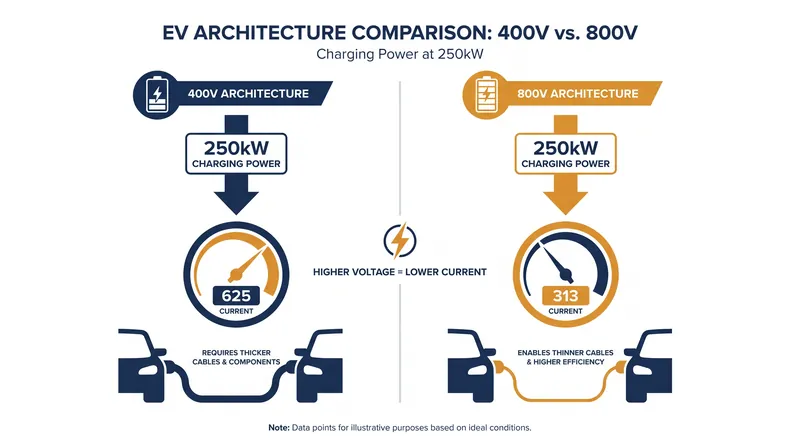

On a traditional 400-volt architecture, transferring 250 kilowatts of power requires pushing approximately 625 amps of current through the vehicle's wiring. That level of current generates immense electrical resistance, which manifests as heat.

Managing that heat requires thick, heavy copper cables and aggressive liquid cooling systems. If the thermal management system cannot keep up, the vehicle's battery management software will throttle the charging speed to prevent catastrophic cell damage, which is why charging rates often drop off a cliff after reaching 80 percent capacity.

By doubling the system voltage to 800 volts, engineers fundamentally alter the math. Achieving that same 250-kilowatt charging target now requires only about 313 amps of current.

Halving the current drastically reduces the resistive heat generated during the charging session. This allows the vehicle to sustain peak charging speeds for a longer duration, rather than hitting a thermal wall and throttling down.[1]

The downstream consequences of this thermal relief are significant. Because the system generates less heat, automakers can utilize thinner wiring harnesses, which reduces the overall weight of the vehicle and cuts down on the amount of expensive copper required.[1]

However, moving to an 800-volt system is not as simple as swapping out a battery pack. It requires a comprehensive overhaul of the vehicle's entire power electronics suite, from the onboard charger to the traction inverters.[2]

This is where the supply chain becomes the limiting factor. Traditional silicon-based insulated-gate bipolar transistors (IGBTs), which have powered 400-volt EVs for a decade, become inefficient and require complex thermal management at 800 volts.

To handle the higher electrical stress, 800-volt architectures rely on Silicon Carbide (SiC) semiconductors. SiC devices maintain low switching losses and operate reliably at higher voltages and temperatures, making them the preferred technology for next-generation inverters.

The transition to Silicon Carbide introduces a new cost penalty. While 400-volt components benefit from mature supply chains and massive economies of scale, SiC manufacturing is still scaling up, making 800-volt systems significantly more expensive to produce and service.[1][2]

There is also the reality of infrastructure compatibility. While an 800-volt vehicle is capable of ultra-fast charging—such as adding a 5% to 80% charge in just 22.5 minutes—it can only achieve those speeds if plugged into an 800-volt-capable DC fast charger.

If an 800-volt EV plugs into a standard 400-volt station, it must rely on an onboard DC-DC boost converter to step up the voltage before it reaches the battery. This conversion process introduces energy losses and limits the charging speed to the station's maximum output.[1]

Despite these hurdles, the efficiency gains are measurable. Academic modeling indicates that 800-volt architectures can achieve approximately 1.1 percent lower normalized energy consumption compared to equivalent lower-voltage systems, translating directly to improved driving range.[3]

For automakers, the decision between 400 volts and 800 volts is no longer a question of which technology is objectively better, but rather which architecture aligns with the specific use case, thermal requirements, and price point of the vehicle being designed.[2][4]
