The Polymerization of Triglycerides: How Heat and Oxygen Create a Durable, Non-Stick Surface on Cast Iron

You pull the heavy, black skillet from the oven, its surface gleaming with a hard, glass-like finish that repels water and releases a fried egg without a single scrape. That slick, impenetrable shield is not a layer of baked-on grease, nor is it the result of decades of inherited culinary magic.

It is a highly specific, naturally occurring plastic—a crosslinked biopolymer born from the violent collision of heat, oxygen, and liquid fat. When you season a cast iron pan, you are not merely greasing metal; you are executing a precise chemical synthesis right on your stovetop.[2]

The transformation from a sticky cooking oil to a durable, non-stick surface relies entirely on a process called radical polymerization. To understand how this works, you have to look at the molecular structure of the fats you pour into the pan.

Cooking oils are composed of triglycerides—exactly three fatty acid chains attached to a single glycerol backbone. In saturated fats, these chains are rigid and fully loaded with hydrogen atoms. But in polyunsaturated fats, the chains contain multiple double bonds, creating reactive sites that are eager to break apart and form new connections.[1][4]

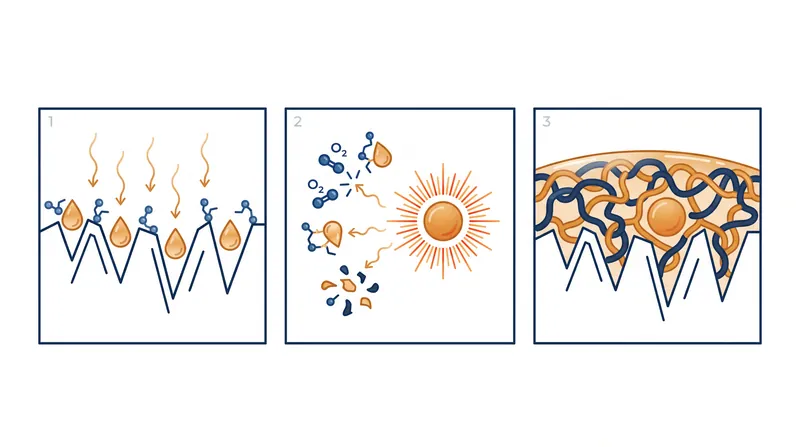

When you wipe a thin layer of polyunsaturated oil onto bare iron and subject it to intense heat, those double bonds begin to fracture. As the temperature climbs toward the oil's smoke point, the fat molecules undergo thermal oxidation, releasing highly reactive free radicals. These radicals act like chemical hooks, seeking out neighboring fatty acid chains and snapping them together. Instead of remaining a pool of independent liquid molecules, the oil weaves itself into a massive, interconnected three-dimensional net.[1][4]

This newly formed polymer network does not just float on top of the skillet. Cast iron, at a microscopic level, is a jagged landscape of peaks, valleys, and pores. As the oil polymerizes, it anchors itself deep into this porous topography, bonding directly with the iron atoms. The result is a hard, hydrophobic shell that seals the raw metal away from the air, rendering it completely impervious to rust and remarkably hostile to sticking food.[2]

However, not all fats are capable of building this resilient armor. The secret to a bulletproof seasoning lies in selecting what chemists and painters call a "drying oil." Drying oils are characterized by an exceptionally high concentration of polyunsaturated fatty acids, particularly alpha-linolenic acid. Chemists classify oils with an iodine value above 130 as true drying oils, because they possess so many double bonds. This offers a vast number of reactive sites for crosslinking, allowing them to cure into a tough, solid film when exposed to oxygen and heat.[4]

In 2010, software engineer and science writer Sheryl Canter published a widely cited analysis of this exact mechanism, identifying flaxseed oil as the optimal culinary choice. "The seasoning on cast iron is formed by fat polymerization," Canter wrote. "Fat polymerization is maximized with a drying oil, and flaxseed oil is the only drying oil that's edible."

With an alpha-linolenic acid content hovering around 57 percent, it polymerizes more aggressively and completely than almost any other edible fat. When heated past its relatively low smoke point of 225 degrees Fahrenheit, flaxseed oil rapidly transitions from a liquid into a dense, slick polymer that resists scratching and chemical degradation.

Conversely, attempting to season a pan with saturated fats or monounsaturated oils often leads to frustration. While traditional lore frequently recommends lard or bacon drippings, modern conventionally raised pork yields fat that is significantly lower in polyunsaturated fatty acids than the lard of a century ago. Oils with fewer double bonds, such as olive oil or modern lard, struggle to form a dense polymer network. They often leave behind a soft, easily marred coating that washes away with a stiff scrub brush.[2]

Even with the perfect drying oil, the physical application dictates the success of the chemical reaction. The most common mistake in cast iron maintenance is applying too much fat. If the oil layer is too thick, the surface polymerizes and seals off the oil beneath it from the oxygen required to complete the reaction. The result is a pan that feels perpetually tacky—a half-finished polymer that has stalled in the hydroperoxide stage of thermal oxidation.[1][2][4]

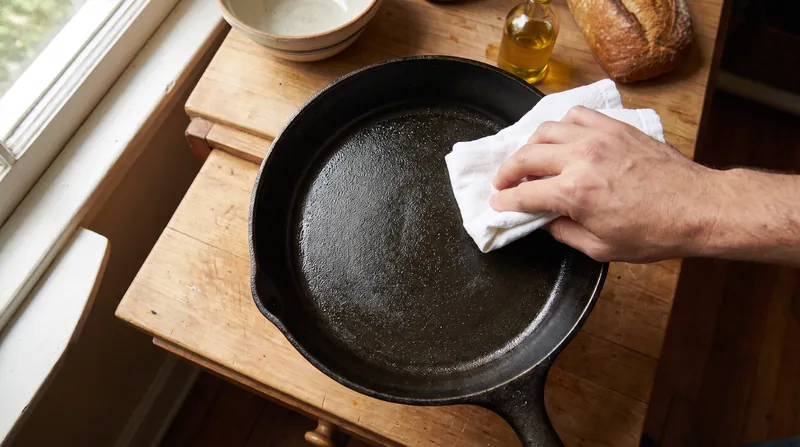

To achieve a flawless, glass-like finish, the oil must be applied in a layer so thin it is barely perceptible. After wiping the pan with a drying oil, you must take a clean cotton cloth and attempt to buff it entirely away, leaving only a microscopic film. This ensures that every molecule of fat is exposed to the ambient oxygen in the oven, allowing the crosslinking process to proceed uniformly across the entire surface.[1]

The application of heat is the final, non-negotiable catalyst. The pan must be baked at a temperature that exceeds the chosen oil's smoke point—typically around 450 to 500 degrees Fahrenheit for most seasoning blends—for at least 60 minutes. This extreme thermal stress is what forces the release of the free radicals and drives the polymerization to completion. Baking the pan at a lower temperature might dry the oil, but it will fail to trigger the robust crosslinking required for a truly durable shield.[1]

As the pan bakes, the polymerized oil undergoes a secondary process known as carbonization. The intense heat begins to break down the organic compounds in the polymer matrix, driving off hydrogen and oxygen and leaving behind a rich, black carbon residue. This carbon matrix integrates with the polymerized fat, darkening the pan and adding an extra layer of slick, non-stick protection.[2]

The beauty of this chemical process is that it is infinitely renewable. Every time you sear a 16-ounce steak or fry an egg in a well-seasoned skillet, the high heat of cooking initiates a miniature version of this polymerization cycle. The trace amounts of cooking fats break down, crosslink, and bond to the existing seasoning, continually reinforcing the pan's armor. A cast iron skillet does not degrade with use; it actively consumes the heat and fat of your cooking to heal and strengthen its own surface.[1][2]
