The Fosbury Flop's Physics Loophole: How High Jumpers Clear the Bar While Their Mass Passes Below It

In the straddle technique that dominated the mid-20th century, an athlete rolled face-down over the crossbar, forcing their entire body weight higher than the obstacle. The modern high jump differs in one critical respect: the athlete’s center of mass never actually clears the bar. By launching backward and arching the spine, a jumper exploits a geometric loophole.[1]

The stakes of this biomechanical trick are absolute. At the elite level, where Olympic medals are decided by a single centimeter, raw explosive power is no longer enough to secure a podium finish. The athlete must perfectly choreograph a mid-air contortion that drapes their anatomy over the bar while their mass passes harmlessly underneath.[4]

"I knew I had to change my body position to get over the bar," Dick Fosbury later explained regarding his revolutionary 1968 breakthrough. This spatial manipulation grants a massive mechanical advantage. A jumper can clear a 2.30-meter bar even if their center of gravity only reaches 2.10 meters.[1][2]

The technique fundamentally broke the sport's existing physics models when it debuted at the Mexico City Olympics. Before Fosbury, coaches believed that maximizing vertical height required keeping the center of mass as close to the torso as possible. The flop proved that moving it entirely outside the body was the true path to record-breaking heights.[2][4]

The Physics of the Center of Mass

Every object has a center of mass, which acts as the theoretical point where its weight is evenly distributed in all directions. For a human standing upright, this point rests roughly behind the navel. If that human jumps straight up, their center of mass follows a rigid parabolic arc dictated entirely by their takeoff velocity.[5]

Once the athlete leaves the ground, gravity takes over, and that parabolic trajectory cannot be altered by any mid-air movement. However, while the center of mass is locked into its path, the athlete's limbs are not. By changing their shape in flight, the jumper can move their physical body around that fixed gravitational point.[1]

When a high jumper arches their back, drops their head backward, and lets their heels hang toward the mat, they form a severe U-shape. Because the heaviest parts of the body are positioned far below the hips, the center of mass shifts downward. It moves out of the torso entirely, hovering in the empty air beneath the spine.[2][5]

This allows the hips to glide over a crossbar set at 2.40 meters, even as the center of mass peaks at just 2.20 meters. The athlete is essentially wrapping themselves around the bar. They clear a height they never actually possessed the raw vertical leap to reach.[1]

The J-Curve Approach

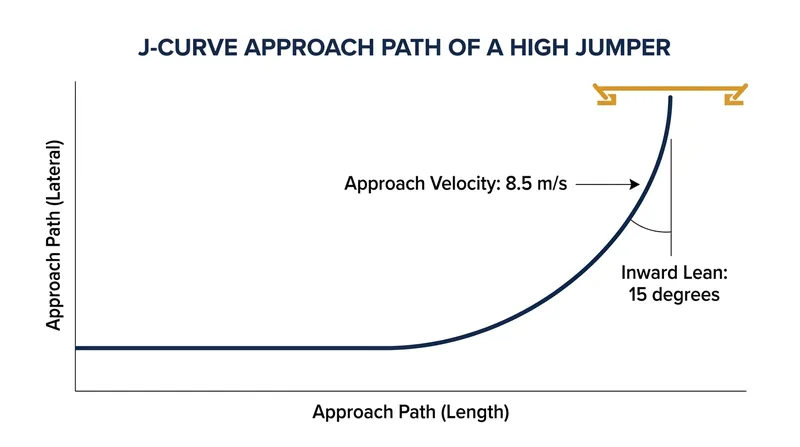

The setup for this mid-air contortion begins on the ground, utilizing a highly specific running path known as the J-curve. Elite jumpers approach the apron at speeds reaching 8.5 meters per second. They run in a straight line before aggressively leaning into a tight curve for the final four to five strides.[3]

This curved approach generates massive centripetal force, pulling the athlete away from the bar. To counter this, the jumper leans sharply inward, tilting their body up to 15 degrees away from the uprights. This lean is the critical mechanism that translates horizontal sprinting speed into vertical lift.[1]

On the penultimate step, the athlete lowers their hips, compressing their center of mass closer to the track. As the final plant foot strikes the ground, it acts as a rigid vaulting pole. The inward lean combined with the sudden braking force violently redirects the athlete's momentum upward.[5]

The ground reaction forces during this split-second takeoff are immense, often exceeding 3,000 Newtons, which equates to roughly four times the athlete's body weight. The plant foot remains on the ground for less than 0.17 seconds. This demands extraordinary tendon stiffness to transfer that energy without collapsing.[1]

Because the athlete entered the jump leaning away from the bar, the upward launch naturally induces a twisting motion. The jumper's back rotates toward the crossbar without requiring any conscious mid-air spin. This perfectly positions them for the backward flight over the obstacle.[2]

Executing the Arch

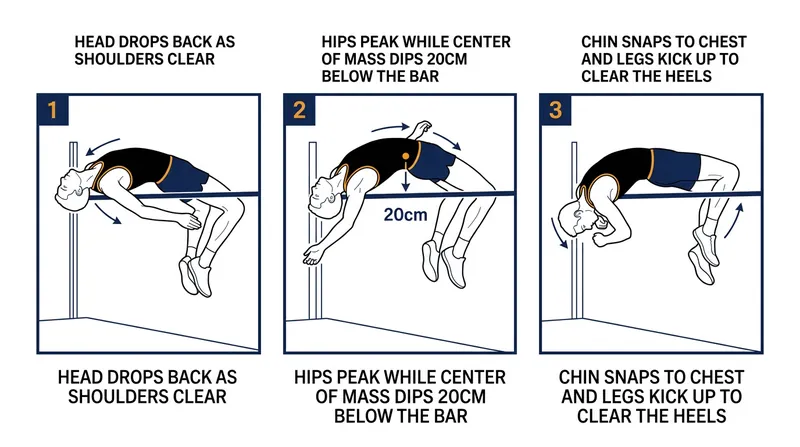

Once airborne, the jumper must time their arch with absolute precision. The head and shoulders are the first to cross the plane of the bar. At this exact moment, the athlete throws their head backward, initiating the hyperextension of the cervical and thoracic spine.[3]

The timing of the head drop dictates the entire clearance sequence. If the head drops too early, the hips rise prematurely and crash into the bar on the way up. If the drop is too late, the hips drag and clip the bar on the way down.[1]

As the hips reach their maximum height, the knees remain bent and splayed, keeping the heavy mass of the legs as low as possible. This is the moment of maximum mechanical advantage. The center of mass reaches its lowest point relative to the pelvis, often dipping a full 20 centimeters below the crossbar.[2][5]

The final phase of the jump requires a violent un-arching motion. Once the hips clear the bar, the athlete must immediately snap their chin to their chest and kick their legs upward. This sudden flexion reverses the U-shape, lifting the calves and heels out of the way just as the bar passes beneath them.[1]

This kick-out relies on a pure conservation of angular momentum. By bringing the head forward, the lower body is forced upward, ensuring the trailing heels do not clip the bar during the descent. The athlete then lands safely on their upper back in the landing pit.[5]

The Kinematic Evidence

Modern force plates and high-speed motion capture have quantified exactly how much of an advantage the Fosbury Flop provides. Javier Sotomayor’s 1993 world record jump of 2.45 meters remains the ultimate case study in center-of-mass manipulation.[6]

Biomechanical reconstructions of Sotomayor’s jump reveal that his center of mass peaked at approximately 2.28 meters. He cleared a bar set 17 centimeters higher than his actual center of gravity. This represents a feat of flexibility and timing that has not been replicated in over three decades.[1][6]

In contrast, analysis of elite straddle jumpers from the 1960s shows their center of mass had to rise at least 10 centimeters above the bar to ensure clearance. The transition to the flop effectively lowered the physiological barrier to entry by nearly 30 centimeters.[4]

This data underscores why the straddle technique went extinct at the elite level within a decade of Fosbury's Olympic victory. No amount of raw leg strength can overcome a 30-centimeter geometric deficit against an equally explosive athlete utilizing the flop.[2]

The Limits of the Human Spine

While the physics of the flop are settled, the biological limits of the athletes executing it remain a constant battleground. The extreme hyperextension required at the apex places severe stress on the lumbar spine.[1]

Elite jumpers frequently suffer from spondylolysis, a stress fracture in the vertebrae caused by the repetitive, violent arching motion. Coaches must constantly balance the need for maximum spinal flexibility with the risk of catastrophic lower back injuries.[5]

Furthermore, the explosive braking forces on the plant foot routinely cause patellar tendinopathy and Achilles issues. The jumper's body is essentially acting as a shock absorber for a high-speed car crash on every single attempt.[1]

The high jump remains a sport defined by a physics loophole, but constrained by human anatomy. The athletes who reach the podium are not necessarily those who can jump the highest. They are the ones who can most effectively separate their mass from their ambition.[1]
