The Core Mechanics of Solar Sails: How Radiation Pressure and Massless Photons Propel Spacecraft

In 1619, Johannes Kepler observed that comet tails always point away from the Sun, regardless of the comet's direction of travel. He hypothesized a 'solar breeze'—a mechanical force exerted by sunlight itself. Today, that 400-year-old observation forms the foundation of one of the most promising propulsion technologies in aerospace engineering: the solar sail.[1]

Unlike conventional rockets, which are fundamentally limited by the mass of the chemical propellant they must carry, solar sails require no onboard fuel. Instead, they harness radiation pressure—the momentum transferred by massless photons as they strike and reflect off a mirrored surface.[1][2]

To understand how a particle with no mass can exert a physical force, one must look to James Clerk Maxwell's theory of electromagnetism and Albert Einstein's formulation of wave-particle duality. While photons lack rest mass, they carry energy and momentum proportional to their frequency.[1]

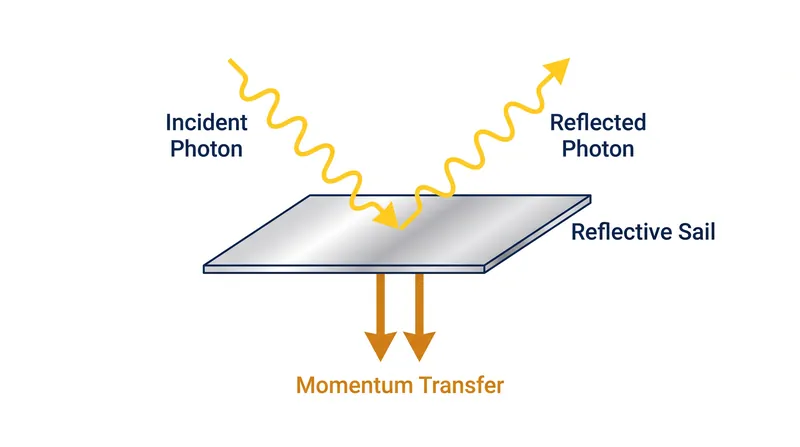

When a photon strikes a highly reflective surface, such as the aluminized polyimide of a solar sail, it bounces off. This reflection is a change in the photon's velocity vector, which requires a transfer of momentum to the sail, pushing it slightly in the opposite direction.[1][2]

The force generated by this interaction is extraordinarily small. At a distance of one astronomical unit (AU)—the distance from the Earth to the Sun—the solar irradiance is approximately 1,361 watts per square meter. This translates to a radiation pressure of roughly 9.08 micronewtons per square meter.[1]

For an 800-by-800-meter sail, the total force exerted by sunlight is about 5 Newtons. On Earth, that is roughly equivalent to the weight of a small bag of sugar. However, in the frictionless vacuum of space, this microscopic force is continuous and cumulative.[1][3]

A chemical rocket fires for a few minutes to achieve its maximum velocity and then coasts for the remainder of its journey. A solar sail, by contrast, accelerates every single second it remains exposed to sunlight.[2][3]

Over months and years, this continuous micro-acceleration accumulates into massive velocity changes. A spacecraft propelled by a solar sail can eventually reach speeds unattainable by chemical rockets, making it a prime candidate for high-energy missions to the outer solar system or neighboring stars.[3]

The primary engineering challenge lies in maximizing the sail's surface area while minimizing its mass. The lightness number—the ratio of the maximum vehicle acceleration to the Sun's local gravity—dictates the sail's overall efficiency and orbital capabilities.[1]

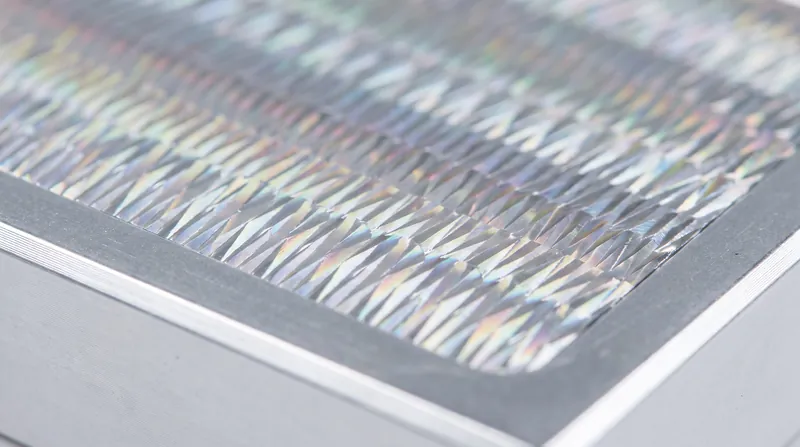

Recent advancements in optics have moved the field beyond flat, reflective mirrors. Diffractive solar sails, which use microscopic grating structures to bend light rather than reflect it, are currently under intense investigation by physicists and aerospace engineers.[4]

A diffractive sail can generate a significant transverse force even when facing the Sun directly. This allows for more complex orbital maneuvers and spiral trajectories without the need to constantly tilt the entire spacecraft, simplifying the attitude control systems.[4]

Despite these theoretical advantages, solar sailing remains in its infancy as a practical technology. Demonstrator missions have successfully proven the concept in Earth orbit, altering their trajectories using only the pressure of sunlight.[1][2]

Yet, scaling these delicate, ultra-thin membranes to the sizes required for deep-space payloads introduces significant material and deployment risks. The membranes must be unrolled flawlessly from a compact payload bay, as a single tear can compromise the thrust profile.[2][3]

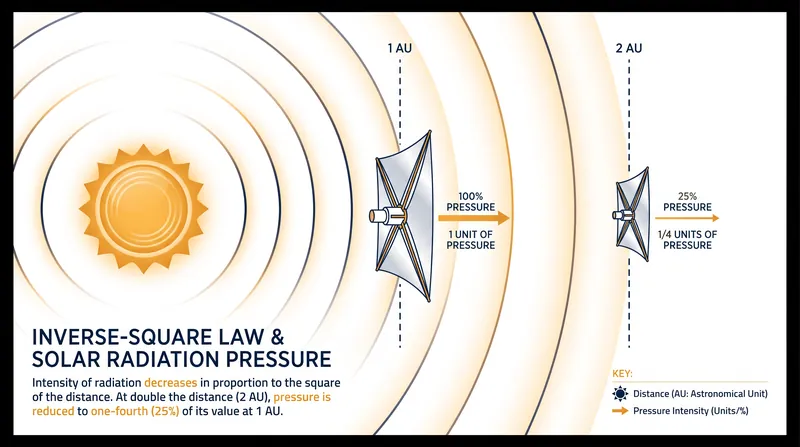

Furthermore, radiation pressure diminishes with the square of the distance from the Sun. As a solar sail travels outward into the solar system, its acceleration drops precipitously, requiring either massive initial speeds near the Sun or supplementary propulsion systems.[1][3]

To overcome this limitation for interstellar missions, researchers have proposed beam-powered propulsion. In this scenario, massive space-based lasers would be used to continuously illuminate the sail, providing a steady stream of photons long after the Sun's light has faded to a distant point.[1]

Ultimately, the mechanics of solar sailing represent a paradigm shift in astrodynamics. By trading the violent, short-lived thrust of chemical combustion for the gentle, inexhaustible push of starlight, engineers are redefining the limits of cosmic exploration.[3]
