The Core Chemistry of Batteries: Comparing Lithium-Ion, Solid-State, and Flow Battery Architectures

We want a battery that charges in minutes, lasts for decades, holds enough power to drive across a continent, and never catches fire. The problem is that the laws of chemistry force a compromise. Every battery architecture is a negotiated settlement between energy density, cycle life, and safety.

For the past three decades, the lithium-ion battery has been the undisputed champion of this compromise, powering everything from smartphones to electric vehicles. But as the demands of the renewable energy transition grow more extreme, the inherent limitations of lithium-ion chemistry are becoming apparent. In response, researchers are pushing two radically different architectures to the forefront: solid-state batteries for high-density mobility, and flow batteries for massive, stationary grid storage.[1]

To understand why these new architectures are necessary, one must first understand the mechanics of the incumbent. A conventional lithium-ion battery operates on a principle called intercalation. When the battery discharges, lithium ions travel from a graphite anode, through a liquid electrolyte, and embed themselves into a metal oxide cathode.

When the battery charges, the process reverses. The liquid electrolyte is the crucial medium that allows these ions to flow freely and rapidly, enabling the high power output that modern devices demand. This elegant chemical dance has proven incredibly reliable, scaling from tiny wireless earbuds to massive electric SUVs.[1]

However, that same liquid electrolyte is the source of lithium-ion's greatest vulnerabilities. The organic solvents used are highly flammable, posing a severe thermal runaway risk if the battery is punctured, crushed, or overheats. Furthermore, if a lithium-ion battery is charged too quickly, the lithium ions can pile up on the anode instead of smoothly intercalating, forming microscopic, needle-like structures called dendrites.

Over time, these dendrites can pierce the internal separator and cause a catastrophic short circuit. To prevent this, battery management systems must carefully throttle charging speeds and limit the battery's maximum capacity, artificially capping its performance.

This is where solid-state chemistry enters the picture. As the name suggests, a solid-state battery replaces the flammable liquid electrolyte with a solid material—typically a ceramic, polymer, or sulfide compound. This seemingly simple substitution fundamentally alters the battery's chemical limits. Because the solid electrolyte acts as an impenetrable physical barrier, it physically blocks the formation of dendrites. This allows engineers to replace the bulky graphite anode with pure lithium metal, a material that stores vastly more energy but is too unstable to use safely in liquid-based systems.

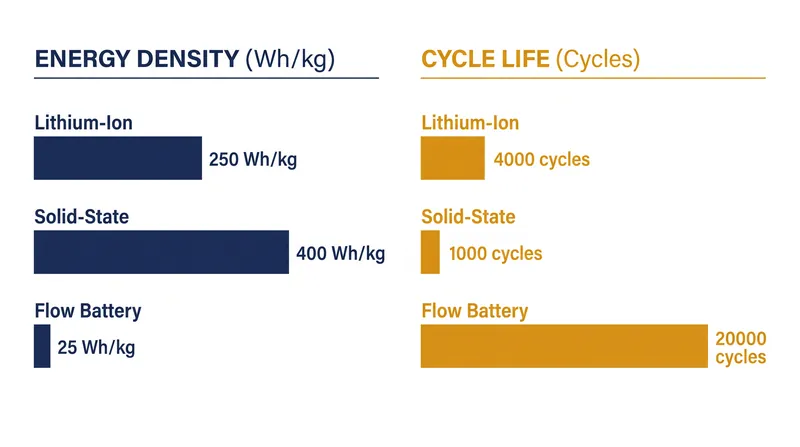

The resulting leap in performance is substantial. Current high-end lithium-ion batteries plateau at an energy density of roughly 250 to 300 watt-hours per kilogram (Wh/kg). By utilizing a pure lithium metal anode, solid-state prototypes are currently demonstrating energy densities well over 400 Wh/kg, with theoretical limits pushing even higher.

This means an electric vehicle could travel significantly further on a single charge, or achieve the same range with a battery pack that is substantially lighter and smaller. Coupled with the inherent safety of a non-flammable core, solid-state technology is widely viewed as the holy grail for the next generation of electric mobility.

Yet, solid-state chemistry faces its own formidable hurdles. The primary challenge is interfacial resistance. In a liquid battery, the electrolyte easily coats the electrodes, ensuring perfect contact for ion transfer. In a solid-state battery, pressing two solid materials together inevitably leaves microscopic gaps, which impede the flow of ions and reduce power output.

Furthermore, as the battery charges and discharges, the electrodes physically expand and contract. Maintaining continuous, flush contact between rigid solid layers over thousands of cycles remains a profound engineering challenge, which is why high-density solid-state prototypes currently struggle to match the cycle life of commercial lithium-ion cells.[4]

While solid-state researchers battle to increase energy density for cars and planes, a completely different chemical philosophy is being deployed for the electrical grid. When storing solar and wind energy for an entire city, the physical weight and size of the battery are largely irrelevant. What matters is cost, safety, and the ability to cycle thousands of times without degrading. For this stationary application, the vanadium redox flow battery offers an elegant, if bulky, solution that entirely reimagines how a battery should be built.

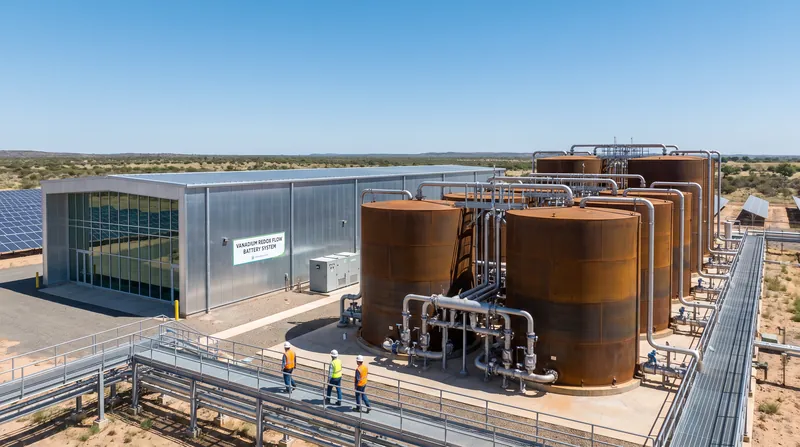

Unlike standard batteries where the energy-storing chemicals are packed tightly inside the cell itself, a flow battery physically decouples power generation from energy storage. The energy is stored in two massive external tanks filled with liquid electrolyte—typically a water-based solution containing vanadium salts in different oxidation states. To generate electricity, these liquids are pumped from their respective tanks into a central reaction chamber, where they flow past electrodes separated by a membrane. The ion exchange occurs across this membrane, generating a current, before the liquids are pumped back out.[2]

This decoupled architecture provides extraordinary advantages for utility-scale storage. If a facility needs more power output, engineers simply add more reaction chambers. If they need more total energy capacity, they just build larger storage tanks and fill them with more vanadium electrolyte.

Because the active materials are completely dissolved in the liquid and undergo no destructive physical phase changes during operation, the battery experiences virtually zero degradation. A vanadium flow battery can easily endure 15,000 to 20,000 charge and discharge cycles, offering a functional lifespan of more than two decades with minimal capacity loss.

Furthermore, the safety profile of a flow battery is unmatched in the energy storage industry. The water-based vanadium electrolytes are entirely non-flammable and operate at room temperature. Even in the event of a catastrophic membrane rupture where the positive and negative fluids mix directly, the result is merely a mild thermal reaction, not an explosion or fire. This inherent stability makes them ideal for critical infrastructure, densely populated areas, and large-scale deployments where a thermal runaway event would be devastating.[3]

The glaring trade-off for the flow battery is its abysmal energy density. A typical vanadium redox system stores only about 25 Wh/kg—roughly one-tenth the energy density of a standard lithium-ion cell. Because they require so much liquid to store a meaningful amount of power, they demand massive physical footprints, concrete foundations, and a complex mechanical balance-of-plant including pumps, pipes, and flow controllers. They are strictly industrial machines, entirely unsuited for anything that needs to move or fit inside a consumer device.

Ultimately, the evolution of battery chemistry proves that there is no universal solution to energy storage. The future will be defined by specialization. Lithium-ion will likely remain the pragmatic workhorse for everyday electronics and standard vehicles, balancing acceptable weight with proven longevity. Solid-state architectures will unlock new frontiers in long-range transport and aerospace, where maximizing energy per kilogram justifies a premium cost. Meanwhile, the massive, unglamorous flow batteries will quietly anchor the renewable grid, cycling endlessly for decades.[1][4]
