Stereo Bass Ejects Turntable Needles, Forcing Vinyl Mastering Lathes to Sum Low Frequencies to Mono

A diamond stylus tracing a microscopic trench on a spinning polyvinyl chloride disc is a mechanical miracle. It relies on precise physical contact to translate physical bumps into electrical voltage. But that fragile mechanical relationship breaks down instantly when a producer hard-pans a sub-bass synthesizer.[1]

Wide stereo bass forces the cutting lathe to carve extreme vertical hills and valleys into the record. When a turntable needle hits those microscopic cliffs at 33⅓ revolutions per minute, the tonearm's tracking force cannot hold it down. The stylus literally ejects from the groove, skating across the record and ruining the playback.

To prevent this catastrophic tracking failure, vinyl mastering engineers enforce a strict physical boundary. Using an elliptical equalizer, they sum all audio frequencies below roughly 150 hertz into a single monophonic channel. This forces the heaviest acoustic energy to move laterally, keeping the needle safely anchored in the vinyl.

The geometry of the stereo groove

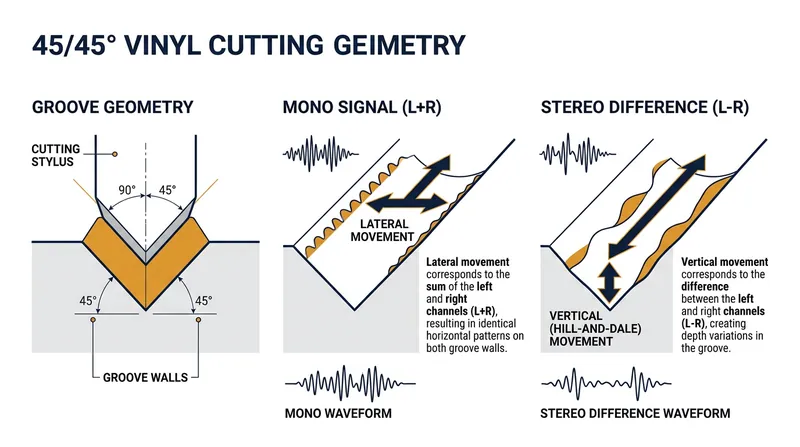

The modern stereophonic record relies on a geometric compromise invented by British engineer Alan Blumlein in 1931. To fit two independent audio channels into a single trench, the cutting stylus carves a V-shaped groove with walls angled at 45 degrees. The left channel modulates the inner wall, while the right channel modulates the outer wall.[2]

This 45/45-degree system dictates exactly how the cutter head moves. When an audio signal is identical in both the left and right channels—a pure mono signal—the two 45-degree vectors combine to push the cutting stylus purely side-to-side. This lateral movement is the safest and most stable path for a playback needle to follow.[2]

However, when the left and right channels contain different information, the physics change entirely. Out-of-phase stereo signals force the cutter head to move vertically, digging deeper into the lacquer and then lifting closer to the surface. In the recording industry, this up-and-down motion is known as "hill and dale" modulation.[2]

Why low frequencies demand space

Vertical modulation is perfectly safe for high frequencies like cymbals or hi-hats, which require very little physical space. Bass frequencies, however, carry massive acoustic energy and require massive physical excursions to reproduce. A 50-hertz bass guitar note forces the cutting stylus to carve a significantly wider and deeper path than a 5,000-hertz vocal.[3]

If a mastering engineer allows that massive bass energy to remain in wide stereo, the resulting vertical excursion becomes unmanageable. The Neumann SX-74 cutter head, the industry standard for vinyl mastering, would be driven violently up and down. At its lowest point, the heated sapphire stylus might slice entirely through the nitrocellulose lacquer and strike the aluminum baseplate.[5]

At its highest point, the cutter head could lift completely off the disc, leaving a broken groove. Even if the lathe successfully cuts the extreme vertical modulation, standard consumer turntables cannot play it. The vertical inertia of the tonearm simply cannot track the steep microscopic hills, causing the needle to launch into the air.

The 150-hertz mono compromise

To solve this physical limitation, mastering engineers deploy a dedicated elliptical filter before the audio ever reaches the cutting lathe. This filter targets the low-end spectrum, typically setting a crossover point between 100 and 150 hertz. Everything above that frequency remains in full stereo, while everything below it is summed to mono.

By forcing the kick drum and sub-bass into the center of the mix, the engineer ensures that the most energetic waveforms translate into purely lateral groove movement. The cutting stylus swings wide from side to side, but its depth remains constant. The playback needle can easily track these lateral sweeps without losing contact with the vinyl.

This mono summing does not ruin the listener's perception of a wide stereo mix. Human hearing is inherently omnidirectional at very low frequencies, meaning the brain struggles to locate the directional source of a 60-hertz rumble anyway. The stereo width is preserved in the midrange harmonics, tricking the ear into perceiving a massive, wide bassline.

The mechanical limits of the lathe

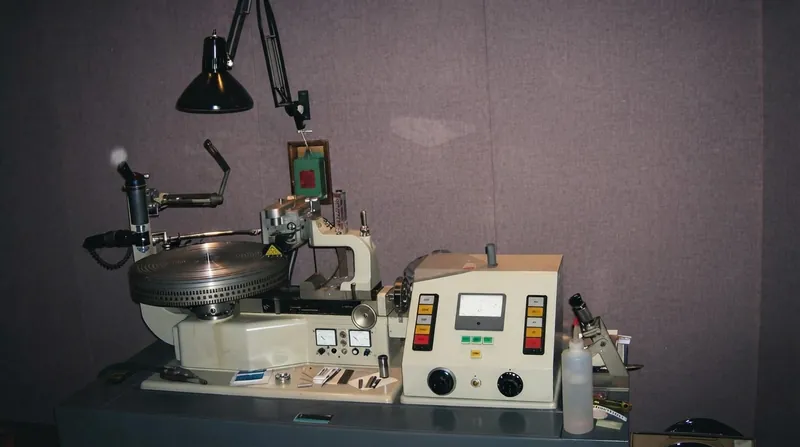

The physical constraints of vinyl mastering are managed by extraordinary analog computers. The legendary Neumann VMS-70 lathe, introduced in 1970, uses a pitch-and-depth control system that "listens" to the audio signal before it reaches the cutter head. It dynamically spaces the grooves further apart during loud, bass-heavy passages to prevent the walls from colliding.[5]

"The pitch box of a Neumann VMS-70 lathe uses illuminated buttons and knobs to control the cutting parameters," notes a technical retrospective by PS Audio. "The lathe bed remained pretty much the same throughout the entire half-century span, but introduced many new features in the control systems and audio electronics."[5]

Even with these advanced groove-spacing computers, the lathe cannot defeat the physics of vertical excursion. The engineer must still prepare the audio file specifically for the medium, targeting a quieter overall loudness of around -12 to -14 LUFS. A heavily limited, brick-walled digital master simply leaves no physical headroom for the cutter head to move.

The RIAA equalization curve

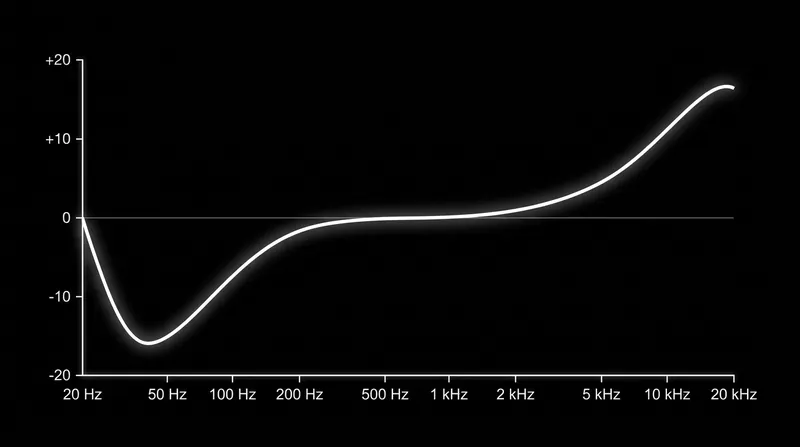

Mono summing is not the only drastic alteration made to the audio before it hits the vinyl. The industry also relies on the RIAA equalization curve, a global standard established in 1954. This specification drastically reduces all bass frequencies and heavily boosts all high frequencies during the cutting process.[4]

By cutting the bass amplitude, the RIAA curve shrinks the overall width of the groove, allowing the lathe to fit up to 22 minutes of music onto a single side of a 12-inch disc. When the record is played back, the turntable's phono preamplifier applies the exact inverse curve, restoring the massive low end and cutting the high-frequency surface noise.[4]

Yet even with the RIAA curve shrinking the bass footprint, the stereo phase relationship remains critical. If the low frequencies are out of phase, the vertical hills and dales will still eject the stylus. Summing the sub-150-hertz audio to mono remains the absolute physical prerequisite for a functional, trackable phonograph record.[1]
