Plaque Macrocalcification Under Statins Drives Up Agatston Calcium Scores Even as Arterial Rupture Risk Falls

For a patient tracking their cardiovascular health, a rising coronary artery calcium score is universally understood as a worsening of disease, signaling that atherosclerotic plaques are growing and a heart attack is drawing closer. Yet cardiologists prescribing high-intensity statins view that exact same radiographic progression as evidence that the medication is working perfectly.[1][2]

They interpret the surging calcium as a sign that vulnerable lesions are finally stabilizing, capping the dangerous lipid pools that cause sudden arterial blockages. This contradiction forms the core of the coronary calcium paradox, pitting the standard metric of heart disease against the biological reality of how it heals.[2]

The Agatston score, the standard metric for quantifying arterial calcium on a computed tomography scan, cannot distinguish between dangerous new plaque formation and the protective calcification of existing lipid pools. When statins clear out the necrotic debris inside an artery wall, they leave behind dense macrocalcifications.[2][3]

These dense deposits drive the patient's score higher even as their actual risk of a plaque rupture plummets. Understanding why this happens requires looking past the raw number on the radiology report and examining the microscopic architecture of the artery wall itself.[1][2]

The Mechanics of the Agatston Score

Since the 1940s, calcium found in the coronary arteries has served as a surrogate marker of coronary artery disease. Today, the Agatston score is the most widely utilized method for quantifying this burden, endorsed by all recent international guidelines for major cardiovascular risk assessment.[3]

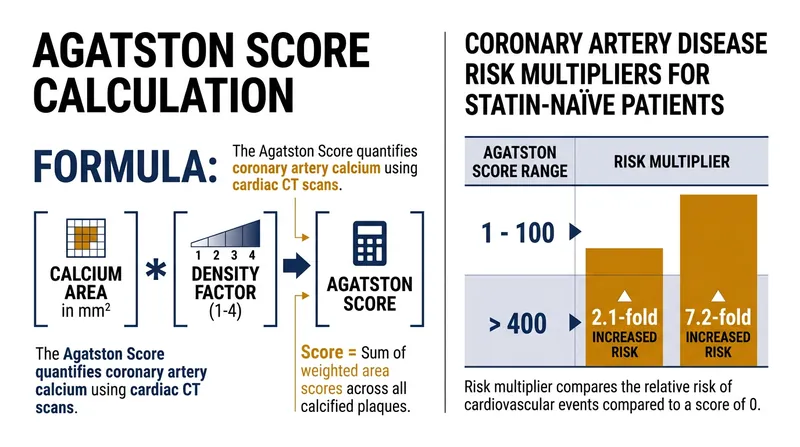

The score is calculated using noncontrast computed tomography, typically with a low radiation dose of around 1 millisievert and a section thickness of 2.5 millimeters. The software identifies any lesion with an attenuation of at least 130 Hounsfield units and an area of 1 square millimeter or more.[4]

It then multiplies the area of the calcified plaque by a density factor to generate the final number. In statin-naïve patients, this raw score is an exceptionally powerful predictor of future atherosclerotic events and mortality.[3][4]

A 2018 analysis in the Cleveland Clinic Journal of Medicine noted that an Agatston score of 1 to 100 carries a 2.1-fold relative risk of cardiac events compared to a score of zero. A score greater than 400 elevates that relative risk to 7.2.

For untreated individuals, calcium deposition within atherosclerotic plaques progresses by an average of 15 to 25 percent per year. In this context, a rising score genuinely reflects a worsening disease state, indicating that new plaques are forming and existing ones are expanding.[4]

The Anatomy of a Vulnerable Plaque

To understand why statins invert this relationship, one must examine what makes a plaque dangerous in the first place. Most heart attacks are not caused by a slow, gradual narrowing of the artery that eventually pinches off blood flow.[1][2]

Instead, they are triggered by the sudden rupture of a vulnerable plaque—a lesion characterized by a large, soft lipid core covered by a thin, fragile fibrous cap. When that cap tears, the highly thrombogenic necrotic debris inside the core spills into the bloodstream.[2][3]

This spillage triggers an immediate clotting cascade, forming a thrombus that can block the artery entirely within minutes. The primary goal of lipid-lowering therapy is not necessarily to shrink the physical size of the plaque, but to stabilize that fibrous cap and neutralize the soft lipid core.[2]

Histopathologic and intravascular ultrasound imaging studies have shown that intensive lipid lowering transforms these unstable, lipid-rich plaques into more stable, calcified lesions. Statins promote the resolution of lipid pools and the suppression of local inflammation within the artery wall.[2][3]

Statin-Induced Macrocalcification

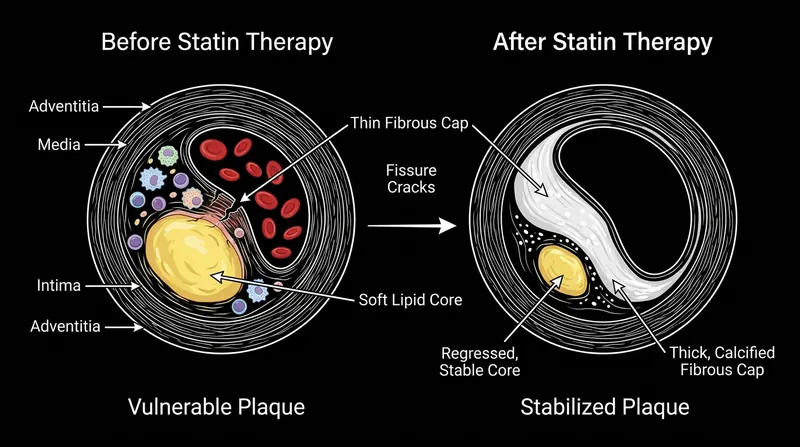

As the statin clears the soft lipid core, the body heals the resulting void by depositing dense calcium over the necrotic debris. This process, known as macrocalcification, effectively turns a fragile, rupture-prone blister into a hardened, stable scar.[2][3]

This densification significantly reduces the mechanical stress on the fibrous cap, lowering the risk of debonding and subsequent plaque rupture. However, because the Agatston method heavily weights the density of the calcium, this healing process causes the patient's overall score to spike.[2][3]

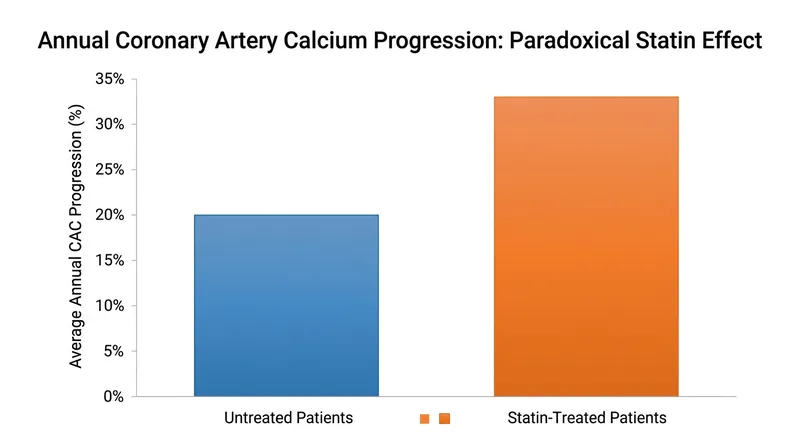

Serial imaging from large cohorts shows that patients on statins exhibit greater increases in coronary artery calcium over time than their untreated counterparts. This occurs even as their total plaque volume decreases and their clinical outcomes dramatically improve.[2]

A January 2026 review by researchers in the Journal of the American College of Cardiology described this phenomenon explicitly.[2]

"Rather than representing treatment failure, rising CAC under statin or PCSK9 inhibitor therapy likely reflects a process of plaque stabilization and healing, a biological success disguised as radiographic progression," the authors wrote.[2]

In the absence of statin therapy, an increase in the calcium score indicates progression in both previously noncalcified and already calcified plaques. In contrast, the statin-related increase in the score indicates calcification progression almost exclusively in previously calcified plaques, densifying existing lesions rather than spawning new ones.[3]

The Radiographic Illusion of Progression

This dynamic creates a profound communication challenge in clinical practice. A patient who starts a high-intensity statin regimen may return for a follow-up CT scan a year later only to find their Agatston score has jumped from 150 to 220.[1][2]

To the patient, this 46 percent increase looks like a catastrophic failure of the medication and a mandate to panic. To the cardiologist, it is evidence that the statin is actively hardening the exact lesions that previously threatened the patient's life.[1][2]

The American College of Cardiology recently reaffirmed that while the Agatston score continues to predict cardiovascular events among statin users, its prognostic strength is significantly attenuated compared with statin-naïve individuals. The raw number loses its linear relationship with mortality once the medication alters the plaque biology.[2]

For this reason, experts emphasize that short-term increases in calcium following the initiation of statins should not prompt alarm or an escalation of therapy. This holds true provided that low-density lipoprotein cholesterol targets are achieved and the patient remains asymptomatic.[2]

The Role of PCSK9 Inhibitors

The phenomenon is not limited to traditional statins. Newer lipid-lowering therapies, such as PCSK9 inhibitors, appear to amplify these exact same calcification effects across the coronary vascular bed. They drive profound structural stabilization without necessarily decreasing the total coronary artery calcium burden.[2]

These injectable medications further thicken the fibrous caps and reduce the lipid arcs within the artery wall. Temporal dynamics also play a critical role in how these scans are interpreted over the lifespan of the treatment.[2]

The lipid and inflammatory components of a plaque regress rapidly after therapy begins, whereas the calcification process progresses much more slowly. This hardening often lags by months or even years, meaning the score will continue to rise long after the lipid core is neutralized.[2]

Thus, early increases in calcium after therapy initiation likely represent a transient phase in the remodeling trajectory. The artery is actively repairing the damage, and the calcium deposition is the visible scar tissue left behind by that repair.[2]

Advanced imaging techniques, such as fluoride-18 micro-positron emission tomography, are now being used in research settings to detect active mineralization. These tools help quantify how the surface area of the calcium changes as the plaque stabilizes, offering a more nuanced view than a standard CT scan.[3]

Reevaluating Calcium Progression in Practice

When available, tracking the total calcium volume in cubic millimeters—rather than the density-weighted Agatston score—provides a slightly clearer picture. Volume measurements are less affected by statin-induced plaque densification and better reflect the total disease burden.[2][3]

Yet even volume metrics cannot fully capture the structural stabilization occurring at the microscopic level. The central insight for both physicians and patients is that coronary calcium is not a direct measure of atheroma volume, but a reflection of plaque composition and chronic remodeling.[2]

In untreated disease, calcification signifies cumulative injury, unchecked inflammation, and expanding necrosis within the artery wall. In treated disease, it reflects the end stage of plaque maturation, where the body successfully walls off a threat with a hardened cap.[2]

Recognizing this dual nature is the only way to reconcile the paradox. The medication that saves the patient's life will almost certainly make their scan look worse, and understanding why is the key to preventing unnecessary anxiety.[1][2]

The goal of cardiovascular medicine is to prevent the clinical event, not to perfect the radiographic image. A hardened, heavily calcified artery that remains open is infinitely preferable to a pristine-looking artery hiding a soft, invisible, and lethal lipid core.[1][2]
