Negative Hydrostatic Pressure and Hydrogen Cohesion: How Trees Pull Water Past the Ten-Meter Barometric Limit

In the summer of 2006, researchers dropped a tape measure from the canopy of a coast redwood in California, recording a height of 115.92 meters. That precise measurement, belonging to a tree named Hyperion, presents a severe problem for classical physics. To keep its highest needles alive, the tree must lift hundreds of liters of water against gravity every day.[1]

It performs this massive hydraulic feat without a heart, without a pump, and without expending any metabolic energy on the lifting process itself. If human engineers want to move water to the top of a 35-story building, they install heavy mechanical pumps at the base to push the fluid upward. Trees do not push water from the roots.[2]

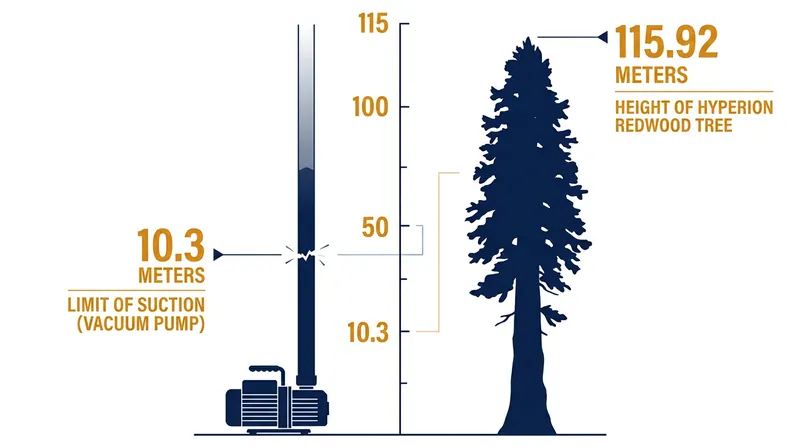

The physical paradox begins with the barometric limit. In 1643, Evangelista Torricelli demonstrated that a perfect vacuum can only draw a column of water up to a height of 10.3 meters at sea level. Atmospheric pressure simply cannot support a taller column of liquid water against the downward pull of gravity.[3]

Any mechanical suction pump operating above ground level will fail at this exact 10.3-meter mark. The water column will spontaneously vaporize, creating a vacuum void at the top of the pipe. Yet Hyperion, along with thousands of other tall trees globally, routinely pulls liquid water more than ten times higher than this absolute physical boundary.[1][3]

The mechanism that allows plants to bypass the barometric limit relies on a state of matter that rarely exists outside of biological systems. The water inside a tall tree is not being pushed, nor is it merely being sucked upward by a vacuum. It is being physically stretched like a rubber band.[2][5]

The physics of hydrogen bonds

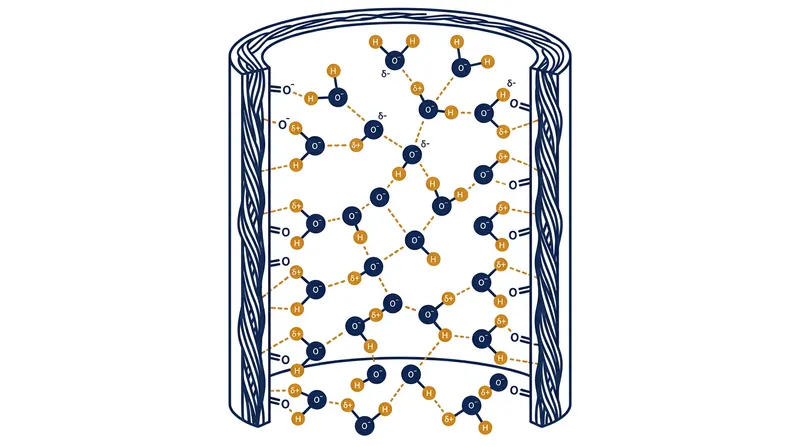

The foundation of this mechanism, known as the cohesion-tension theory, rests on the molecular structure of water itself. A water molecule features a slight negative charge near its oxygen atom and a slight positive charge near its hydrogen atoms. This polarity causes individual water molecules to attract one another, forming hydrogen bonds.[2][3]

This mutual attraction, called cohesion, gives water an extraordinary tensile strength when confined in narrow spaces. Inside the tree, water travels through the xylem—a network of microscopic, dead, hollowed-out cells that form continuous capillary tubes from the roots to the leaves. The water molecules also adhere tightly to the cellulose walls of these tubes.[2][5]

The actual engine driving the upward movement sits at the very top of the system, in the microscopic pores of the leaves called stomata. As the sun heats the leaf, water evaporates from the moist cell walls into the air spaces inside the leaf, and then diffuses out into the atmosphere. This is transpiration.[6]

As a water molecule evaporates, it retreats into the microscopic pores of the plant cell wall, creating a curved surface known as a meniscus. Surface tension strongly resists this curvature. The water attempts to flatten out, and in doing so, it pulls on the water molecules directly beneath it.[2][3]

Because the water molecules are bound together by hydrogen bonds, that microscopic pull at the leaf surface is transmitted molecule by molecule, all the way down the trunk to the roots. The entire water column moves upward as a single, continuous, unbroken string.[2]

To lift water 100 meters, the tension generated at the leaf surface must be immense. Plant physiologists measure this tension in megapascals (MPa). Lifting water to the top of a redwood requires a tension of at least -1.0 MPa, just to overcome gravity, plus additional tension to overcome the friction of the xylem pipes.[1][6]

Operating in negative pressure

This creates a state of negative hydrostatic pressure. In standard physics, pressure pushes outward, and a perfect vacuum represents zero pressure. But in the xylem of a tall tree, the pressure drops below zero. The fluid is under active tension, pulling inward on the walls of the microscopic pipes.[3][5]

At -2.0 MPa, the water inside a tree is stretched so tightly that it exists in a metastable state. Thermodynamically, water at this tension and at ambient temperature should instantly boil, flashing into vapor. It remains liquid only because the microscopic diameter of the xylem prevents the initial formation of a vapor bubble.[2][5]

The evidence for this extreme tension was historically difficult to gather. Early attempts to measure xylem pressure by piercing the trunk often introduced air, instantly breaking the tension and yielding false readings. Critics of the cohesion-tension theory argued that the proposed negative pressures were a mathematical artifact, not a physical reality.[2]

The debate was largely settled by the invention of the Scholander pressure chamber in the 1960s. Researchers place a severed leaf inside a sealed steel chamber, leaving the cut stem protruding. They then pump compressed gas into the chamber until water is forced back out of the stem, exactly matching the tension the leaf was under.[6]

Modern non-invasive techniques, including nuclear magnetic resonance imaging, have confirmed these readings in living, intact trees. Scans show that the water in the xylem is indeed under severe tension, and that the diameter of the tree trunk actually shrinks slightly during the day as the negative pressure pulls the wood inward.[2][3]

This extreme physical state comes with a constant, existential risk. If the tension becomes too great—during a severe drought, or if the soil freezes—the metastable water column can snap. A microscopic air bubble expands instantly, filling the xylem conduit with vapor in a process called cavitation.[4][6]

The acoustic signature of failure

When a water column snaps under negative pressure, it releases a tiny shockwave. "When the tension exceeds the hydrogen bond strength, the column fractures with an audible snap," wrote Dr. Melvin Tyree in his 1983 paper on acoustic emissions. "The tree is effectively screaming as its vascular system fails."[4]

Once a xylem conduit cavitates, it is filled with an embolism—an air blockage—and can no longer transport water. If too many conduits fail, the tree loses its ability to supply the canopy, leading to branch dieback and eventually death. The tree is constantly balancing the need to capture carbon dioxide against the risk of hydraulic failure.[2][6]

To prevent an embolism from spreading, trees have evolved specialized microscopic valves called pit membranes. These porous structures connect adjacent xylem tubes. When one tube cavitates, the pressure difference pulls the pit membrane tight against the pore, sealing off the air bubble and protecting the rest of the water column.[2][4]

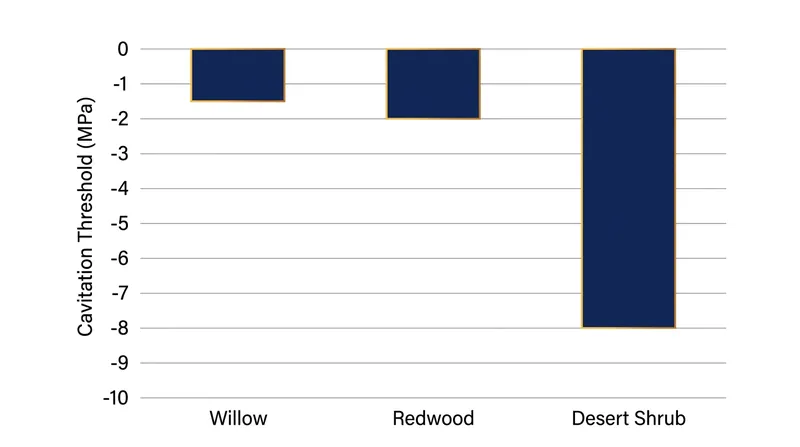

The strength of these pit membranes dictates a species' drought tolerance. Trees adapted to arid environments build highly restrictive pit membranes that can withstand extreme tension—sometimes down to -8.0 MPa—without allowing an air bubble to pull through. However, these restrictive membranes also slow down the overall flow of water.[6]

This creates a fundamental evolutionary trade-off between hydraulic safety and growth efficiency. Fast-growing trees, like willows or poplars, build wide xylem pipes with porous pit membranes. They can move massive volumes of water quickly, but their water columns will snap at relatively mild tensions of -1.5 MPa.[2][3]

Conversely, slow-growing desert shrubs invest heavily in dense, narrow xylem with highly reinforced pit membranes. They survive severe desiccation, but their maximum photosynthetic rate is permanently capped by their restrictive plumbing. Every plant species occupies a specific niche on this safety-efficiency spectrum.[6]

Testing the limits of tension

The cohesion-tension mechanism also explains why trees cannot grow infinitely tall. As a tree grows higher, gravity and friction demand increasingly negative pressure at the top to keep the water moving. Eventually, the required tension approaches the physical limit of the water molecule's hydrogen bonds.[1][5]

Biomechanical models suggest that at a height of roughly 122 to 130 meters, the tension required to lift water would exceed the cavitation threshold of even the most robust pit membranes. At that height, the water column would spontaneously collapse under its own weight, regardless of how much water is in the soil.[1][6]

This theoretical maximum aligns perfectly with the tallest known living trees. Hyperion, at 115.92 meters, is operating very close to this absolute physical boundary. Researchers measuring the uppermost branches of tall redwoods find that the needles are perpetually water-stressed, growing smaller and thicker than those lower down.[1]

The evidence for this height limit is visible in the tree's cellular structure. The xylem conduits at the top of a giant redwood are extremely narrow, maximizing safety against cavitation but severely restricting water flow. This restricted flow limits leaf expansion and ultimately halts vertical growth.[1][2]

While the cohesion-tension theory is universally accepted, the exact dynamics of how trees recover from cavitation remain an active area of research. Some studies suggest that certain species can actively refill embolized xylem tubes overnight, pushing water back into the vapor-filled conduits.[2][6]

This refilling process is highly controversial because it requires generating positive pressure to dissolve the air bubble, which seems to contradict the continuous negative pressure of the surrounding tissue. The evidence for active refilling relies heavily on X-ray microtomography, which has yielded conflicting results across different plant families.[3][6]

The metabolic cost of safety

The uncertainty surrounding embolism repair highlights the limits of current imaging technology. Capturing the fluid dynamics of a microscopic tube inside a living, opaque trunk without altering the pressure state is a profound technical challenge. Most evidence for refilling remains circumstantial.[2][3]

What is certain is that the architecture of the xylem represents a massive carbon investment. Trees dedicate a significant portion of their metabolic output to building and reinforcing these dead microscopic pipes. The lignin that makes wood hard evolved primarily to prevent the xylem from collapsing inward under negative pressure.[2]

As global temperatures rise, the vapor pressure deficit in the atmosphere increases, pulling harder on the water inside the leaves. This forces trees to operate at higher tensions for longer periods, pushing them closer to their cavitation thresholds. The physics of hydrogen bonds sets a hard limit on how much atmospheric demand a forest can survive.[3][6]

The survival of the world's tallest organisms depends entirely on the tensile strength of a liquid. By harnessing the molecular attraction of water, trees have engineered a passive transport system that outperforms any mechanical pump, operating silently on the brink of physical failure.[1][2]
