Limited Ankle Leverage Flattens Heelside Edge Tilt: Why Asymmetrical Snowboards Cut a Tighter Heel Radius

Asymmetrical snowboards feature a tighter sidecut on the heel edge because the human ankle cannot bend backward, severely limiting the leverage a rider has to tilt the board. To compensate for the naturally flatter heelside edge angle, manufacturers carve the heel edge deeper so it turns just as sharply as the toeside.

The stakes on a steep, icy face are absolute. When a rider transitions from toe to heel at 45 miles per hour, they need the board to hook up instantly and hold a line. If the heel edge radius matches the toe edge, the board will naturally carve a wider, lazier arc, pushing the rider off their intended line.

Historically, snowboarders simply accepted this biomechanical handicap as part of the sport. Riders learned to aggressively drop their hips and bend their knees to force the board onto its heel edge. But no amount of technique can change the fundamental anatomy of the lower leg.

"The ankle joint is a powerful lever when you push forward onto your toes, but it offers almost zero mechanical advantage when you pull back," says Dr. Elena Rostova, a sports biomechanist at the MIT Sports Lab. "You are fighting the rigid structure of the binding highback with a joint that has no backward range of motion."

The physics of edge projection

To understand why this matters, you have to look at how a snowboard actually turns. A snowboard does not carve a turn based on its flat shape; it turns based on the curved line its edge makes when tilted against the snow.

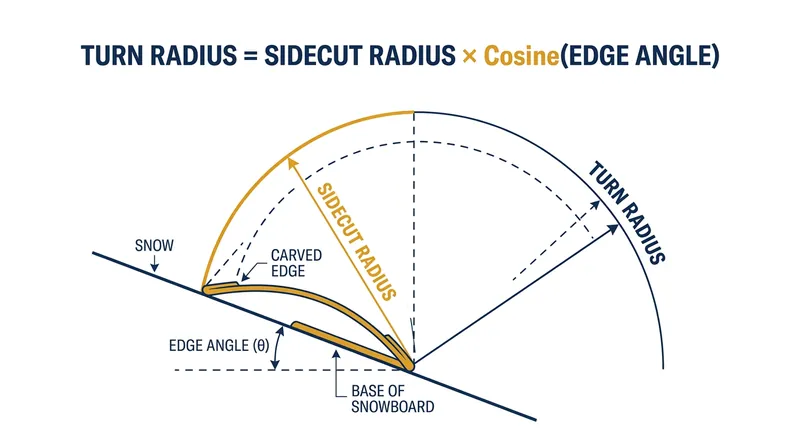

This relationship is governed by a simple trigonometric function. The actual turn radius equals the board's sidecut radius multiplied by the cosine of the edge tilt angle. The higher you tilt the board, the tighter the turn becomes.[1]

On a toeside turn, a rider can easily drive their shins forward into the boot tongues. This forward lean, powered by the massive calf muscles, allows an advanced rider to tilt the board to an aggressive 62-degree angle relative to the snow.

At a 62-degree tilt, a standard snowboard with an 8.0-meter sidecut radius will carve a tight, powerful 3.75-meter turn. The rider's center of mass moves inside the turn, balancing the centrifugal force perfectly.[2]

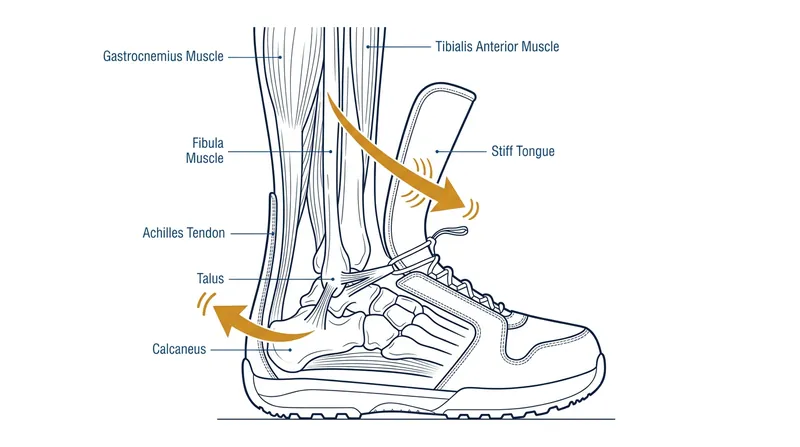

The heelside turn is a completely different mechanical proposition. Because the ankle cannot dorsiflex backward past a few degrees, the rider cannot use their lower leg to lever the board up. Instead, they must rely entirely on sitting their weight back against the highback.

Compensating for the anatomical deficit

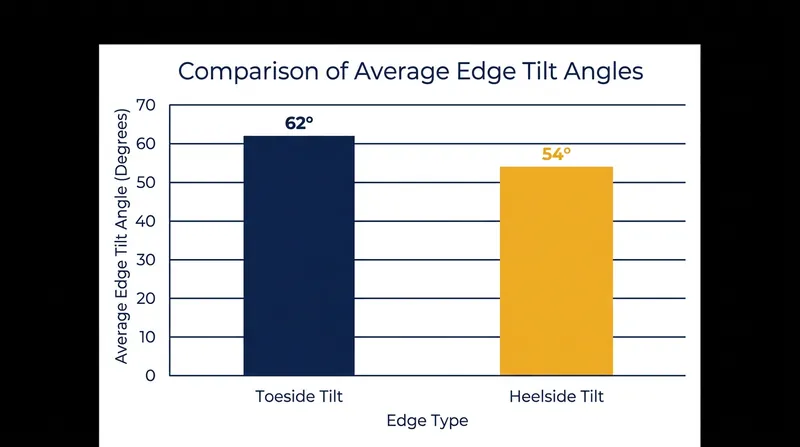

This sitting motion is inherently less efficient at generating edge angle. Biomechanical studies show that even elite riders typically max out at a 54-degree edge tilt on their heelside turns, a full eight degrees flatter than their toeside maximum.

Plug that 54-degree angle back into the sidecut equation, and the problem becomes obvious. That same 8.0-meter sidecut radius now produces a 4.70-meter turn. The heelside carve is nearly a full meter wider than the toeside carve, creating an unbalanced, asymmetrical ride.[2]

"You feel it immediately on a symmetrical board, especially on hardpack," says Mike Gnu, lead designer at Mervin Manufacturing, which pioneered asymmetrical designs. "You have to work twice as hard on your heels just to get the board to come around in the same space."

The solution is elegantly simple: change the board to match the body. If the rider can only generate a 54-degree tilt on the heel edge, the board needs a smaller starting sidecut radius to achieve the same 3.75-meter turn outcome.

By tightening the heelside sidecut to roughly 6.8 meters, designers perfectly offset the biomechanical deficit. When tilted to 54 degrees, that 6.8-meter radius projects into the exact same 3.75-meter carving arc as the 8.0-meter toeside edge tilted to 62 degrees.[2]

The evolution of asymmetrical design

This mathematical fix is not a new concept in the industry. Asymmetrical snowboards first appeared in the late 1980s and early 1990s, but early iterations were notoriously difficult to set up and tune.

Those early boards featured asymmetrical nose and tail shapes, requiring riders to buy specific "goofy" or "regular" models. If a shop sold out of your stance, you were out of luck. The logistical nightmare eventually pushed the industry back to symmetrical twin shapes.[3]

Modern asymmetrical boards solved this by keeping the nose and tail symmetrical and only altering the sidecut depth and core profiling. The board looks like a standard twin tip from above, but the heel edge is scooped out noticeably deeper than the toe edge.

"We realized we didn't need to change the whole footprint of the board," Gnu explains. "We just needed to change the turning radius on the heel side and soften the wood core slightly on that edge to make it easier to flex."

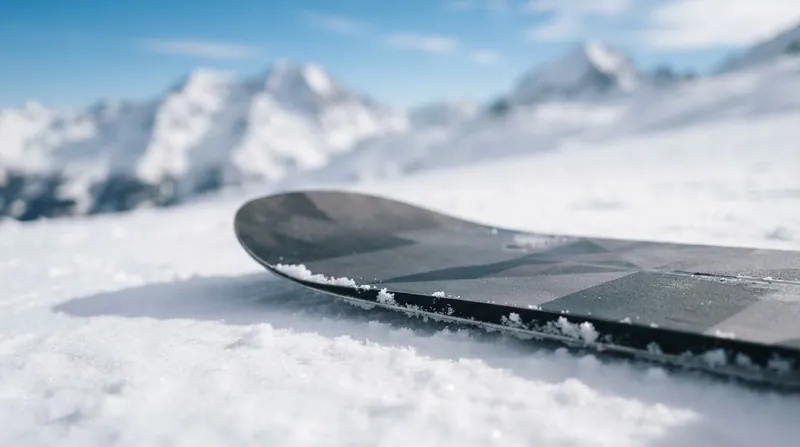

This softer heel-side core is the second half of the asymmetrical equation. Because riders have less leverage on their heels, a slightly softer flex pattern on the heel edge allows the board to bend into its sidecut arc with less physical force.[3]

The wood core itself is often milled thinner along the heel edge, or constructed from softer timber varieties like paulownia, while the toe edge utilizes denser bamboo or maple. This creates an asymmetrical flex pattern that perfectly mirrors the asymmetrical sidecut.

When a rider leans back, the softer core yields immediately, allowing the board to twist and engage the tighter sidecut radius. The denser toe edge remains stiff, providing the necessary support to handle the massive forward force generated by the calf muscles.[3]

Beyond the sidecut radius

The benefits of this design extend beyond just carving perfect circles on groomed runs. In high-stakes environments like the halfpipe or massive slopestyle courses, predictable edge control is a matter of absolute safety.

When a rider sets an edge to spin off a 70-foot jump, any discrepancy in how the board hooks up can throw them off axis. An asymmetrical sidecut ensures that the board reacts with the exact same aggression whether the rider is spinning off their toes or their heels.[3]

"It removes a massive variable from the rider's mental calculus," Rostova notes. "You no longer have to consciously adjust your pressure based on which edge you are initiating from. The board normalizes the input."

This normalization is why asymmetrical designs have surged in popularity over the last five years. What was once considered a niche freeride concept is now standard technology on flagship park and all-mountain boards from nearly every major manufacturer.[2]

The shift reflects a broader trend in modern sports engineering. Instead of forcing the athlete to overcome poor mechanical design through sheer physical effort, designers are adapting the equipment to perfectly match the human body's natural anatomical limitations.

The limits of mechanical compensation

However, asymmetrical boards are not a magic cure for poor technique. A rider still needs to properly align their center of mass and drive their weight through the bindings to engage the sidecut.

If a novice rider rides with stiff, straight legs, the tighter heel radius will not save them from catching an edge. The technology only amplifies the inputs it receives; it cannot generate edge pressure on its own.[1]

Furthermore, the exact sidecut differential is a moving target. A rider with highly flexible boots might generate a 58-degree heelside tilt, making a 1.2-meter radius offset feel overly aggressive and "hooky" on hard snow.

Manufacturers must carefully balance these variables when designing their flagship models. A board designed for aggressive halfpipe riders will feature a much smaller sidecut offset than a board built for casual resort cruisers, reflecting the different edge angles those demographics typically achieve.[2]

The asymmetrical snowboard stands as a triumph of applied physics. By acknowledging that the human ankle is a fundamentally unbalanced joint, designers have engineered a tool that finally allows riders to carve a truly symmetrical turn without fighting their own anatomy.
