Inhaler Spacers Decelerate 30-Meter-Per-Second Aerosols to Shift Asthma Medication Into the Lungs

In September 2026, the Asthma and Allergy Foundation of America released its annual Asthma Capitals report, highlighting a persistent crisis in respiratory care. Despite widespread access to rescue inhalers, emergency department visits for acute bronchospasms remain stubbornly high across major urban centers, revealing a critical gap in how medications are actually delivered.[3]

A primary driver of these treatment failures is aerodynamic physics rather than medication efficacy. When a patient actuates a standard pressurized metered-dose inhaler, the device expels a liquid plume of medication and chemical propellant at extreme velocities, frequently exceeding 30 meters per second right at the nozzle.[1]

At that extreme speed—roughly 67 miles per hour—the aerosol travels far too fast to navigate the sharp anatomical curve of the human airway. Instead of smoothly following the inhaled breath down the trachea, the heavy liquid droplets fly straight ahead, driven entirely by their own forward momentum.[1]

The Mechanics of Inertial Impaction

Consequently, when an inhaler is used without an accessory device, approximately 80 percent of the medication impacts the posterior wall of the oropharynx. The patient swallows the vast majority of the prescribed dose, leaving only a tiny fraction of the active ingredient to reach the bronchial target.[1]

This phenomenon, known as inertial impaction, occurs because the initial droplets are both incredibly fast and relatively large. The hydrofluoroalkane propellant requires time and physical space to evaporate and shrink the medication particles down to a highly respirable size that can float on the breath.[1]

Without that crucial space, the large, heavy particles carry too much momentum to change direction. They crash violently into the back of the throat and the tongue, where they provide zero respiratory benefit and instead absorb directly into the gastrointestinal tract and the systemic bloodstream.[1]

For inhaled corticosteroids, this oral deposition is the primary cause of localized side effects, including dysphonia and oral candidiasis. The medication suppresses local immune function in the mouth, allowing yeast to overgrow, rather than reducing the dangerous inflammation deep inside the lung tissue.[4]

For rescue bronchodilators like albuterol, swallowed medication enters the systemic circulation, triggering side effects such as tachycardia, muscle tremors, and severe jitteriness. The patient experiences the drug's adverse cardiovascular effects while receiving minimal relief for their dangerously constricted airways.[4]

Aerodynamic studies presented at the European Respiratory Society congress in September 2024 demonstrated the persistence of this velocity problem. Even at 10 centimeters from the nozzle, unmitigated aerosol plumes maintain speeds of 5 meters per second, virtually guaranteeing throat impaction for anyone inhaling directly from the plastic boot.[2]

How Valved Holding Chambers Intervene

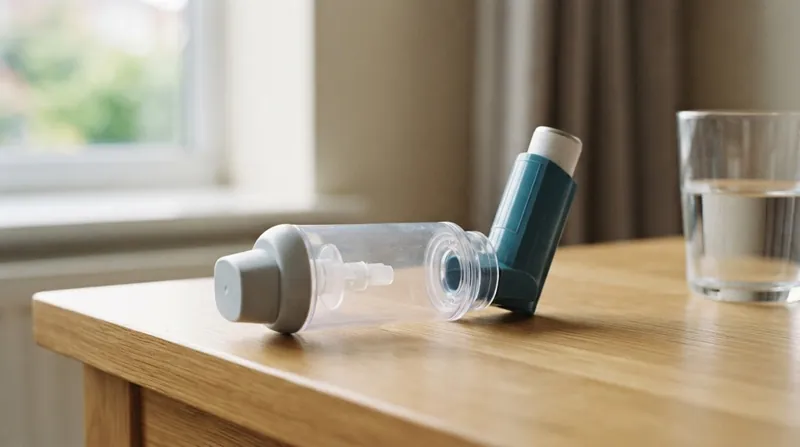

A valved holding chamber, commonly referred to as a spacer, fundamentally alters this aerodynamic equation. By adding a physical extension tube between the inhaler nozzle and the patient's mouth, the device provides a critical deceleration zone that tames the violent physics of the medication plume.[4]

When the inhaler is actuated into the chamber, the 30-meter-per-second plume hits the ambient air inside the enclosed tube. Friction rapidly slows the aerosol, stripping away its forward momentum before the mist ever reaches the patient's lips, transforming a jet spray into a gentle cloud.[1]

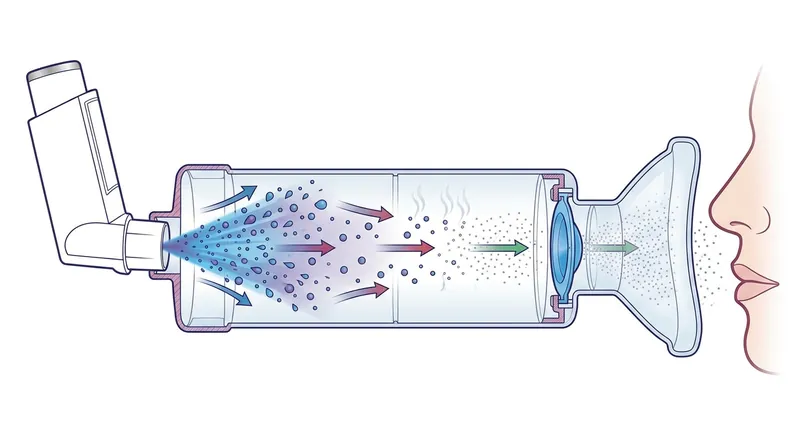

Simultaneously, this brief suspension time allows the liquid hydrofluoroalkane propellant to evaporate completely. As the propellant flashes off, the heavy droplets shrink dramatically, leaving behind a fine, dry mist of microscopic medication particles suspended safely in the center of the chamber.[2]

Because these particles are now both slow-moving and microscopic, they lose their problematic inertial mass. When the patient finally inhales, the medication easily follows the gentle airstream around the 90-degree curve of the throat, bypassing the vocal cords and traveling deep into the lower respiratory tract.[1]

Clinical measurements confirm the remarkable efficiency of this physical intervention. Using a holding chamber reduces oropharyngeal deposition from 80 percent down to nearly zero, effectively eliminating the primary source of inhaler-induced side effects and ensuring the medication goes exactly where it is needed.[1]

Doubling the Delivered Dose

By preventing the medication from crashing into the throat, the spacer drastically increases the volume of drug available for the lungs. Cascade impactor studies reveal a stark contrast in actual pulmonary delivery when the aerodynamics of the inhaler are properly corrected by an accessory device.[1]

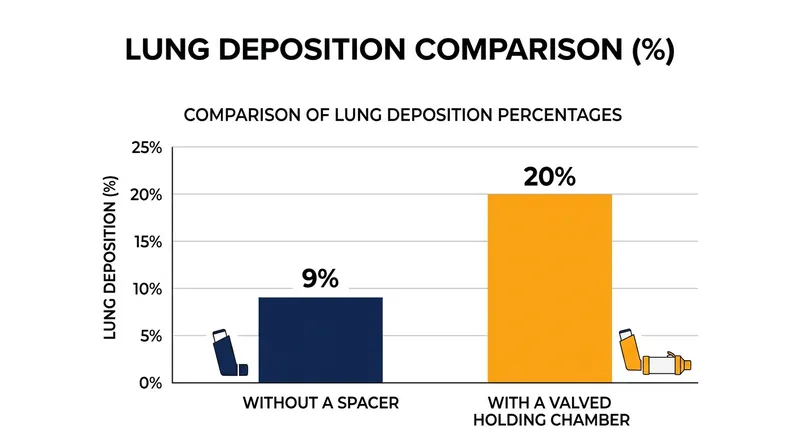

When a standard 180-microgram dose of albuterol is administered via a bare inhaler, only about 9 percent of the medication successfully reaches the lung tissue. The rest is permanently lost to the mouth, the throat, and the interior walls of the plastic actuator itself.[1]

When that exact same dose is fired into a valved holding chamber, pulmonary deposition jumps to a full 20 percent. The simple addition of a plastic deceleration tube more than doubles the active medication reaching the constricted bronchioles, providing a vastly superior clinical response.[1]

This doubled efficiency explains why modern emergency departments rely on spacers rather than nebulizers for acute asthma exacerbations. A spacer delivers a higher concentration of respirable medication in a fraction of the time required for a traditional wet nebulizer treatment, rapidly reversing dangerous airway obstructions.[1]

Despite this proven mechanical advantage, the Asthma and Allergy Foundation of America notes that spacers are rarely prescribed automatically alongside inhalers. Patients must often request and purchase them separately out of pocket, creating a persistent financial and educational barrier to optimal respiratory care.[3]

The Role of the One-Way Valve

While basic open-tube spacers provide the necessary distance for deceleration, modern valved holding chambers incorporate a crucial one-way inhalation valve. This mechanical gate sits directly at the mouthpiece, keeping the aerosol securely trapped inside the chamber until the patient is completely ready to breathe.[4]

The valve only opens when the patient actively inhales, drawing the suspended mist smoothly into their lungs. If the patient accidentally exhales into the device, the valve snaps shut instantly, preventing their breath from blowing the valuable medication out the back of the chamber.[4]

This mechanism completely decouples the firing of the inhaler from the patient's inhalation. Patients no longer need to perfectly time their breath with the exact millisecond they press the canister, a notorious coordination failure that ruins most bare-inhaler doses even for experienced adults.[4]

For pediatric patients and older adults, this decoupling is entirely transformative. They can actuate the inhaler into the chamber and then take three or four normal, tidal breaths to empty the suspended medication at their own comfortable pace, ensuring a full dose is delivered.[4]

Overcoming Static Charge

However, the physical design of the chamber introduces a new variable in the form of electrostatic charge. Standard plastic spacers carry a static charge that acts like a powerful magnet, pulling the microscopic medication particles out of the air and onto the chamber walls.[4]

If a highly charged plastic spacer is used straight out of the box, this static attraction can trap up to half of the medication before the patient ever inhales. This invisible phenomenon severely blunts the intended clinical benefit of the device, leaving the patient undertreated.[4]

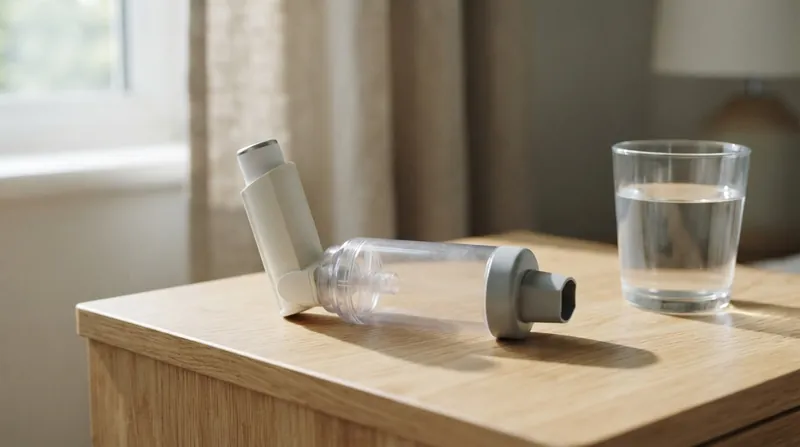

To neutralize this effect, respiratory therapists advise washing new plastic spacers in warm water with household dish detergent and letting them air dry. The microscopic film of detergent left behind completely eliminates the static charge, allowing the aerosol to remain fully suspended in the chamber.[4]

Alternatively, modern manufacturing has introduced advanced anti-static polymer chambers and metal spacers that inherently repel the medication. These premium devices ensure maximum drug delivery immediately out of the packaging, without requiring the detergent-wash priming step to achieve their optimal aerodynamic performance.[4]

Clinical Guidelines and Standard of Care

The overwhelming aerodynamic evidence has fundamentally shifted global respiratory guidelines. The Global Initiative for Asthma now explicitly recommends valved holding chambers for all patients utilizing metered-dose corticosteroids, regardless of their age, lung capacity, or baseline hand-breath coordination skills.[4]

During acute exacerbations, the guidelines are even more stringent. Emergency protocols dictate that a metered-dose inhaler paired with a valved holding chamber is the absolute first-line treatment, matching or exceeding the clinical efficacy of traditional wet nebulizers for rapidly reversing severe asthma attacks.[1]

This equivalence is entirely dependent on the spacer's ability to filter out the coarse particle mass. Without the chamber to catch the heavy, fast-moving droplets, the inhaler simply cannot deliver the deep-lung penetration required to open up a severely constricted human airway.[2]

By mastering these aerodynamic principles—decelerating the plume, evaporating the propellant, and managing static charge—patients can transform a highly inefficient 30-meter-per-second spray into a precise, targeted respiratory treatment. The physics of the spacer ensure the life-saving medication finally reaches its intended destination.[4]
