How Photon Shot Noise and Pixel Binning Erase the Advantage of 200-Megapixel Smartphone Sensors
Smartphone manufacturers increasingly market 200-megapixel sensors as a leap in optical resolution, but the physics of light collection dictate otherwise. Microscopic pixels suffer from severe photon shot noise, forcing devices to rely on computational binning rather than true optical capture.
By Lila Morgan
- Optical Physics Researchers
- Emphasize that the diffraction limit and photon shot noise represent hard physical ceilings that software cannot fully overcome.
- Imaging Technology Standards
- Focus on the established definitions and architectures of digital sensors and pixel binning processes.
- Consumer Technology Analysts
- Evaluate smartphone marketing claims against the physical reality of sensor constraints and computational processing.
Why it matters
Understanding the physics of camera sensors protects consumers from overpaying for misleading megapixel counts, revealing why computational software—not raw resolution—is the true driver of modern mobile photography.

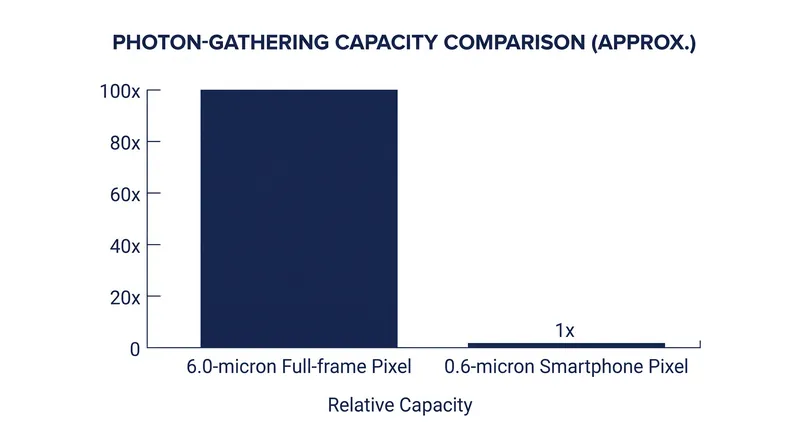

Smartphone manufacturers routinely market their flagship devices with staggering resolution figures, claiming that 200-megapixel sensors rival the detail of professional DSLR cameras. Companies like Samsung and Xiaomi have built entire advertising campaigns around these triple-digit megapixel counts, suggesting to consumers that more pixels inherently equal sharper, more professional photographs. The physical evidence dictates otherwise. A single pixel on a standard 24-megapixel full-frame camera captures over 100 times more light than a pixel on a 200-megapixel smartphone sensor, meaning the mobile device's resolution advantage is entirely erased by signal noise before the image is even processed. The marketing framing relies on a fundamental misunderstanding of optical physics, substituting a digital metric for an analog reality.[1][3][6]
The fundamental constraint governing all camera systems is the entrance pupil diameter, which dictates the absolute physical limit of resolution and noise. As Professor J.C. Dainty notes in a 2024 paper in the Asian Journal of Physics, "The pupil diameter D uniquely determines the fundamental limit to performance of any imaging system, including all telescopes and the smartphone camera." When light enters a lens, it does not strike the sensor as a mathematically perfect point; instead, it diffracts into a microscopic blur known as an Airy disk. If the physical pixels on the sensor are smaller than this diffraction blur, adding more pixels captures no additional optical detail. Modern smartphone lenses, constrained by the thickness of the device chassis, typically feature entrance pupils smaller than three millimeters, capping their true resolving power far below what a 200-megapixel sensor implies.[3][6]

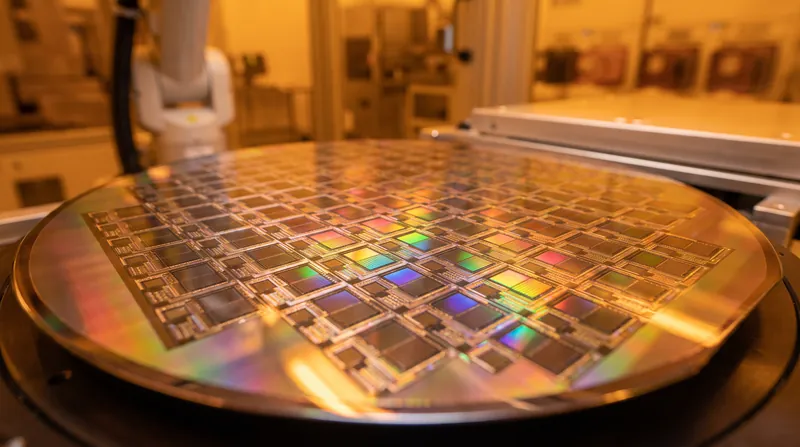

At these microscopic dimensions, the physics of light collection become the primary bottleneck for image quality. A standard 200-megapixel smartphone sensor, such as the 1/1.33-inch format used in several flagship devices, measures roughly 70 square millimeters in total surface area. To fit 200 million individual photosites onto a silicon chip that small, each pixel must be shrunk to approximately 0.6 microns across. By comparison, a 24-megapixel full-frame sensor—the standard for professional photography—measures 864 square millimeters, allowing for pixels that are roughly 6.0 microns wide. That massive disparity in surface area means the smartphone pixel is operating at a severe physical disadvantage before the shutter is even pressed.[1][6]
That size difference dictates the signal-to-noise ratio of the resulting image, a metric far more important than resolution. Photons do not arrive at a camera sensor in a perfectly uniform, predictable stream; they arrive randomly, much like raindrops falling onto a grid of buckets. This quantum randomness creates a baseline level of interference known as photon shot noise. Because shot noise follows a Poisson distribution, the signal-to-noise ratio scales with the square root of the total photons collected. A larger bucket collects more raindrops, smoothing out the statistical variance and producing a cleaner, more accurate measurement of the light.[4][5][6]
When a photosite is shrunk to 0.6 microns, its "bucket" is so small that it collects very few photons during a standard exposure fraction. The resulting electrical signal is incredibly weak, meaning the inherent photon shot noise makes up a massive percentage of the final data read by the camera. In low-light conditions, these microscopic pixels are effectively starved of light, producing a signal that is almost entirely noise. If a smartphone actually attempted to output a true 200-megapixel image in a dimly lit room, the result would be a grainy, unusable mosaic of color interference.[1][4][5][6]
When a photosite is shrunk to 0.6 microns, its "bucket" is so small that it collects very few photons during a standard exposure fraction.
To compensate for this physical deficit, smartphone manufacturers rely on a computational technique called pixel binning. Rather than reading each of the 200 million pixels individually, the image signal processor groups adjacent pixels together—often in a 4x4 grid—and averages their electrical output into a single "super pixel." This process effectively transforms a 200-megapixel sensor into a 12.5-megapixel sensor at the exact moment of capture. The camera is not generating a 200-megapixel file; it is downsampling the hardware on the fly to rescue the image from the noise penalty of its own microscopic pixels.[2][6]
Binning increases the signal-to-noise ratio by aggregating the light data, allowing the smartphone to produce a usable, bright image in darker environments where a standard exposure would fail. However, it fundamentally contradicts the marketing claim of a 200-megapixel photograph. The camera is not capturing 200 million distinct points of optical detail; it is capturing 12.5 million points of detail using a highly segmented sensor. The resolution figure printed on the back of the device is a theoretical maximum that the camera actively avoids using in almost all real-world shooting scenarios, defaulting instead to the binned output to ensure the image is actually viewable.[2][6]
The marketing language surrounding these sensors frequently obscures this reality, presenting a physical limitation as a technological breakthrough. Terms like "nona-binning" or "tetra-binning" are presented to consumers as advanced features that enhance resolution, when in fact they are necessary compromises designed to mitigate the severe physical limitations of the hardware. Without binning, the sensor would fail to produce a clean image in anything other than direct, blinding sunlight. The industry has successfully rebranded a computational rescue operation as a premium hardware feature, convincing buyers that they are utilizing 200 megapixels when they are actually utilizing a heavily processed 12.5-megapixel output.[2][5][6]
This physical reality explains why professional photographers continue to rely on large-sensor cameras with vastly lower megapixel counts, despite the marketing hype surrounding mobile devices. A 24-megapixel full-frame camera does not need to bin its pixels because each photosite is large enough to collect a massive volume of photons, yielding a clean, high-fidelity signal even in challenging light. The professional camera captures actual optical detail through a large glass element, whereas the smartphone camera infers detail through aggressive software processing. The physical glass and silicon of the full-frame system do the work that the smartphone must simulate with algorithms.[1][4][6]
The true innovation in mobile photography over the last decade has not been the miniaturization of pixels, but the staggering advancement of the silicon processors that interpret them. Modern smartphones capture dozens of frames the moment the camera application is opened, aligning and merging them instantly to average out the shot noise and expand the dynamic range. This multi-frame computational pipeline—not the raw optical resolution of the sensor—is what allows a device with a three-millimeter lens to produce a photograph that looks acceptable on a high-resolution display.[3][5][6]
The 200-megapixel figure serves primarily as a marketing heuristic, a number large enough to convince consumers that a tangible physical upgrade has occurred between device generations. It is significantly easier to sell a larger number on a specification sheet than it is to explain the nuances of computational photography, photon shot noise, and the Rayleigh criterion to a mass-market audience. As long as consumers equate megapixels with image quality, manufacturers will continue to subdivide their tiny sensors into increasingly microscopic, light-starved grids, prioritizing the marketing claim over the actual physics of light collection.[1][2][3][4][6]
The laws of optical physics remain undefeated by consumer electronics, regardless of how sophisticated the accompanying software becomes. Until the physical dimensions of smartphones increase to accommodate vastly larger lenses and sensors, mobile photography will remain an exercise in computational rescue rather than pure optical capture. The megapixel count is simply the starting point for the software's work, not a measure of the camera's true resolving power. The next time a smartphone boasts a triple-digit resolution, it is worth remembering that the software is doing the heavy lifting, actively cleaning up the noise created by the hardware's physical limitations.[1][3][6]
