How Meta Encodes Decision Tree Leaf Indices to Automate Feature Crosses in Ad Ranking

An automated ad auction system evaluates millions of candidate promotions every time a user refreshes their social feed. It must calculate the exact probability that a specific person will click a specific link, and it has less than ten milliseconds to return a decision.[6]

To hit that strict latency target, engineering teams at Meta and other major platforms rely heavily on linear classifiers. These models multiply inputs by weights and sum the results, making them exceptionally fast to execute and easy to update in real time.[1][6]

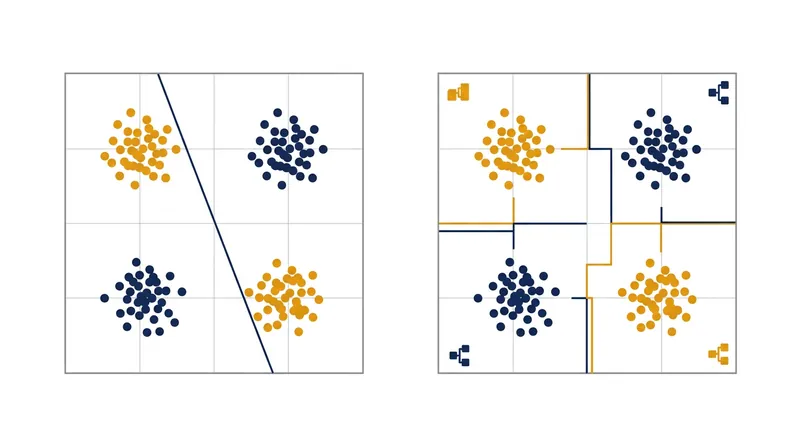

But linear models possess a severe mathematical limitation when operating alone. They evaluate every variable in isolation, meaning they cannot recognize when two distinct facts combine to create a completely new context.[3]

"A linear model cannot learn that the combination of 'user is a teenager' and 'ad is for retirement planning' is a terrible match unless you explicitly tell it," explains the scikit-learn documentation on feature transformations. Engineers call these combinations feature crosses.[3]

In a system tracking thousands of user attributes and ad characteristics, manually programming every possible feature cross is mathematically impossible. The sheer volume of combinations would overwhelm both human engineers and the memory limits of the prediction servers.[1][8]

Escaping the dimensionality trap

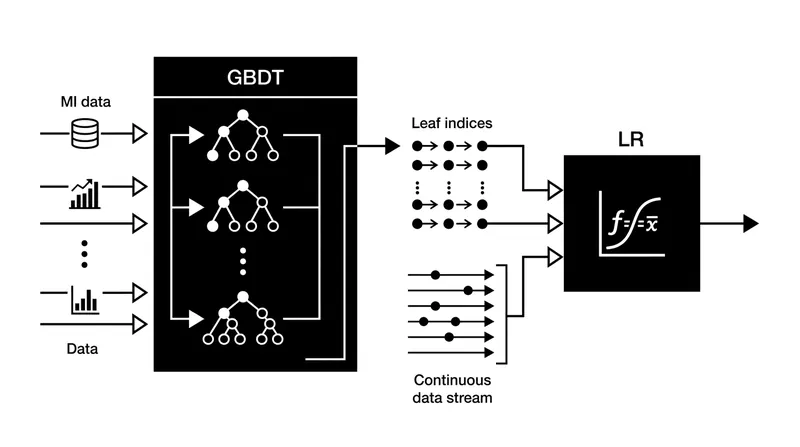

To solve this bottleneck, Meta engineers developed a hybrid architecture that forces one algorithm to write the inputs for another. They deployed Gradient Boosted Decision Trees to automatically discover the nonlinear relationships that the linear models could not see.[1][2]

A decision tree operates by asking a sequence of yes-or-no questions about the data, splitting users into increasingly specific subgroups. Each branch represents a combination of traits, such as age, location, and past click history.[3]

The final destination at the bottom of the tree is called a leaf node. Every user who lands in the same leaf node shares a highly specific, multi-variable profile that the algorithm identified as statistically significant.[1]

Instead of using the tree to make the final click prediction, the system simply records which leaf the user landed in. That leaf index is then treated as a brand new, standalone categorical feature.[1][3]

"We treat each individual tree as a categorical feature that takes as value the index of the leaf an instance ends up falling in," wrote Xinran He and colleagues in their 2014 paper detailing Facebook's ad prediction infrastructure.[1][2]

Encoding the leaf indices

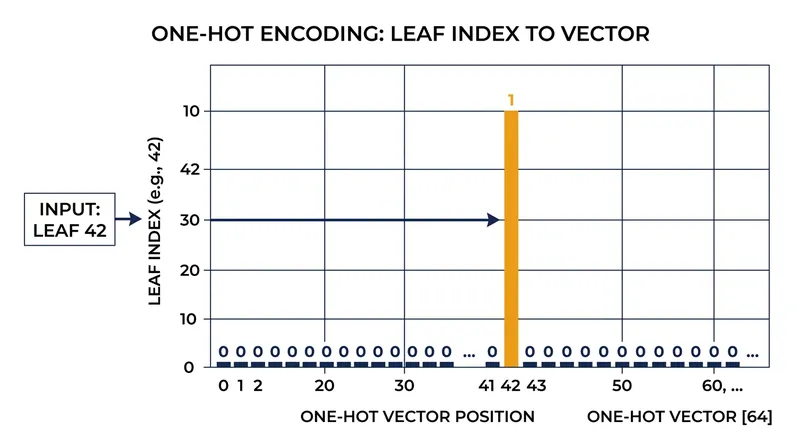

The system converts these leaf indices into a sparse binary format, a process known as one-hot encoding. If a tree has one hundred leaves, the system creates an array of one hundred zeros, and flips a single zero to a one at the exact index of the user's leaf.[1][8]

This transformation turns a complex, nonlinear journey through a decision tree into a simple, flat vector. The linear classifier can now process this vector instantly, assigning a single weight to that specific combination of traits.[3][8]

By chaining hundreds of trees together, the architecture generates a massive array of these sparse inputs. The linear model no longer has to guess how features interact; the trees have already mapped the interactions and handed over the coordinates.[1][3]

This division of labor perfectly matches the computational constraints of a streaming ad auction. Finding complex feature crosses requires scanning the entire historical dataset, a slow process known as batch training.[6][8]

Updating the final click probabilities requires processing a continuous stream of live feedback as users interact with the platform. Linear models handle this streaming data effortlessly, adjusting their weights with every new click or scroll.[1][6]

Decoupling discovery from calibration

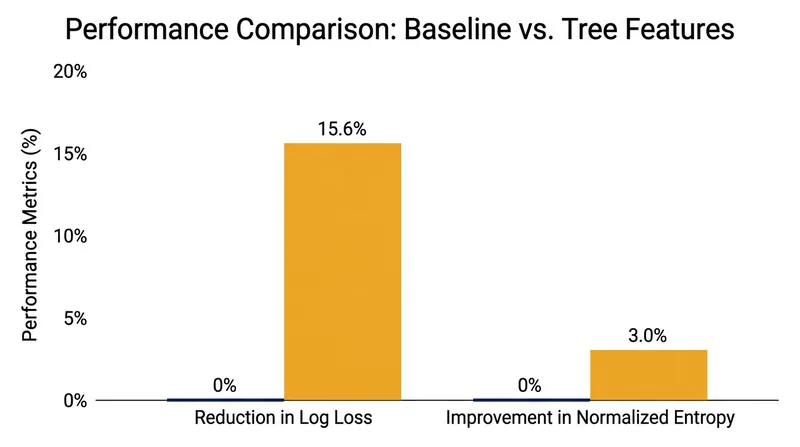

Meta's implementation demonstrated that separating feature discovery from probability calibration yielded massive performance gains. Their research reported that adding tree-based feature transformations reduced the prediction error, measured as log loss, by 15.6 percent.[1][2]

"The results show that the tree feature transformations are highly effective," the Meta researchers noted. "It improves the Normalized Entropy by more than 3% compared to the linear model alone, which is considered a very significant improvement in our application."[1]

The technique quickly spread beyond social media feeds, becoming a foundational pattern in large-scale recommendation systems. LinkedIn adopted a similar approach to power its Recruiter search engine, using tree ensembles to generate features for its ranking algorithms.[4][8]

"We use tree-based models to automatically learn feature transformations and interactions," LinkedIn engineers detailed in a 2019 technical blog post. They noted that this approach allowed their linear models to capture complex user-job fits without manual engineering.[4]

Google engineers encountered the exact same fundamental bottleneck when building the Play Store's recommendation engine. In 2016, they published the Wide & Deep learning framework, which formalized the need to combine memorization of specific feature crosses with the generalization of neural networks.[7]

The evolution of sparse inputs

While Google's architecture replaced the decision trees with deep neural networks to learn the feature crosses, the underlying principle remained identical. A complex, offline system discovers the interactions, and a fast, online system serves the final predictions.[7][8]

As datasets grew into the petabytes, the industry began exploring Factorization Machines to handle the massive, sparse arrays generated by these tree transformations. Introduced by Steffen Rendle in 2010, Factorization Machines can estimate interactions even for feature combinations they have rarely seen.[5][8]

"Factorization machines combine the advantages of Support Vector Machines with factorization models," Rendle wrote in his paper. This mathematical bridge allowed systems to maintain accuracy even when the one-hot encoded vectors contained millions of zeros.[5]

Today, the marketing language surrounding ad platforms frequently emphasizes artificial intelligence and deep learning. But beneath the commercial framing, the core ranking engines still rely heavily on this pragmatic, hybrid architecture.[8]

Solving the staleness problem

The capability that actually ships to production is rarely a monolithic, omniscient neural network. It is a carefully engineered pipeline where slow, complex algorithms do the heavy lifting offline, feeding simplified cheat sheets to the fast, linear algorithms facing the live traffic.[8]

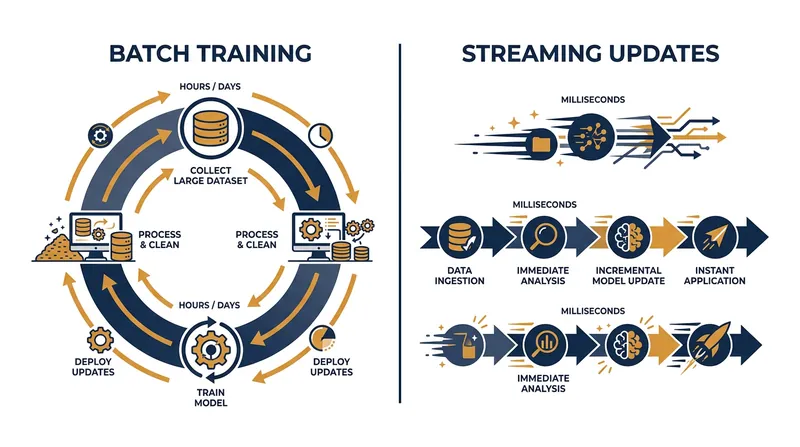

This architecture also solves a critical infrastructure problem: model staleness. User behavior changes rapidly during major events or viral trends, requiring the ranking system to adapt its predictions within minutes.[6][8]

Retraining a massive ensemble of decision trees takes hours or even days, making it far too slow to catch breaking trends. But the linear classifier at the end of the pipeline can update its weights continuously, learning from the live stream of clicks and ignores.[1][8]

By holding the tree structures fixed and only updating the linear weights, the system achieves the best of both paradigms. It maintains a deep, structural understanding of user behavior while remaining agile enough to adjust to immediate shifts in engagement.[1][8]

The next time an ad auction executes, the deciding factor will not be a sudden flash of algorithmic insight. It will be a pre-calculated leaf index, sitting in a sparse array, waiting for a linear model to multiply it by a calibrated weight.[8]
