How Line Array Sound Systems Work: The Acoustic Engineering Behind Modern Stadium Concerts

The person sitting 120 meters away in the upper deck of a stadium now hears the exact same snare drum snap and vocal clarity as the person standing in the front row. This parity is a relatively recent triumph of acoustic engineering. For decades, live sound reinforcement relied on a brute-force approach: stacking massive walls of traditional loudspeakers on the stage. When the Beatles played Shea Stadium in 1965, they were famously drowned out by the screaming crowd. The solution in the ensuing years was simply to add more amplifiers and more boxes, which created a deafening, distorted wash of sound for the front rows that quickly degraded into a muddy echo at the back of the venue.[4][6]

The breakthrough that solved the stadium sound puzzle is the line array—the tall, curved columns of black speaker cabinets suspended in mid-air on either side of modern stages. Rather than acting as individual point sources of sound, these vertically stacked modules are precisely engineered to couple together acoustically. When fed the same signal in phase, they act as a single, continuous sound source. This fundamentally changes how the sound wave travels through the air, shifting it from a rapidly expanding sphere into a tightly controlled cylinder.[1][5]

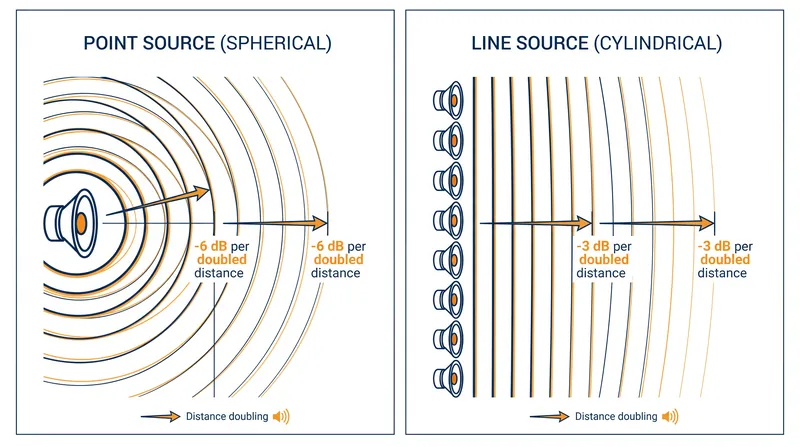

The physics behind this shift dictate the volume drop-off over distance. A traditional point-source speaker radiates sound spherically, meaning it obeys the inverse square law: every time the distance from the speaker doubles, the sound pressure level (SPL) drops by 6 decibels (dB). A line array, by projecting a cylindrical wave, only loses 3 dB of sound pressure per doubling of distance. As audio retailer AVMaxx notes, "Unlike traditional point-source speakers that emit sound in a spherical pattern, line arrays project sound in a cylindrical wave, ensuring that audio reaches farther without losing intensity."[5][6]

While acoustical pioneer Harry Olson first published the theory behind line arrays in his 1957 text *Acoustical Engineering*, it took decades for materials and processing power to catch up to the math. The modern concert line array was born in 1992, when French particle physicist Dr. Christian Heil and his company, L-Acoustics, introduced the V-DOSC system. Heil's critical innovation was Wavefront Sculpture Technology (WST), which solved the hardest physical constraint of arraying speakers: high frequencies.[2][4]

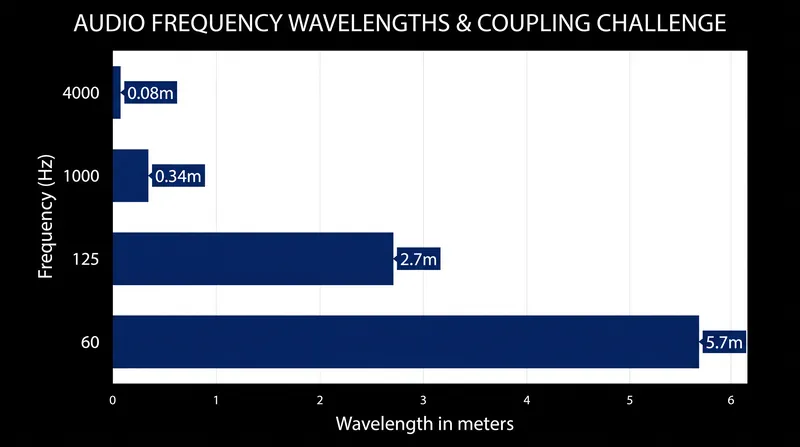

For speakers to couple into a single line source, their acoustic centers must be separated by less than half the wavelength of the frequency they are reproducing. Low frequencies have long wavelengths—a 125 Hz tone is roughly 2.7 meters long—making them easy to couple using standard 15-inch drivers. But high frequencies, like 4,000 Hz, have wavelengths of just 8.5 centimeters. Heil's patented DOSC waveguide forced the high-frequency energy to exit the cabinet as a flat, rectangular ribbon rather than a cone, allowing the high frequencies of adjacent boxes to couple perfectly without destructive interference.[1][2][6]

The signature "J" shape of a flown line array is the physical manifestation of its coverage strategy. The top cabinets in the array are rigged at a zero-degree angle, firing straight ahead to throw sound to the furthest seats in the stadium. As the array descends, the angle between each box gradually increases. As the audio engineering magazine Sound on Sound explains, "In a large auditorium, the line array is hoisted high over the audience, so that the lower section of the J-shape points down at the front rows, while the upper cabinets point roughly horizontally at the rear of the audience."[3]

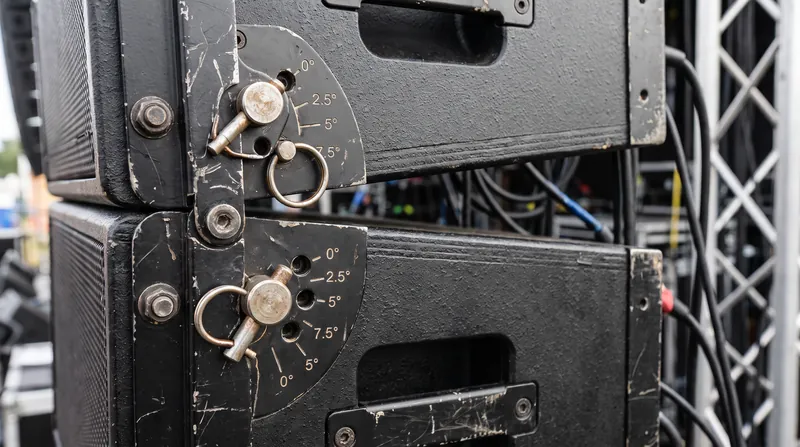

This mechanical curving is paired with heavy digital signal processing (DSP). Before a single speaker is hung, system engineers use 3D acoustic modeling software to map the exact dimensions of the stadium. The software calculates the precise splay angle for each cabinet and applies microsecond delays and equalization to individual boxes. This ensures that the sound waves arriving at a listener in the front row and a listener in the bleachers are perfectly time-aligned, preventing the smearing and comb-filtering that plagued early arena rock shows.[1][6]

Low frequencies present a separate challenge, as bass naturally radiates omnidirectionally. To prevent low-end energy from washing backward onto the stage and muddying the band's monitors, engineers deploy cardioid subwoofer arrays. By placing a row of subwoofers facing the audience and a secondary row facing backward, and applying a specific electronic delay to the rear-facing units, the sound waves cancel each other out behind the array. This steers the bass impact entirely forward into the crowd.[1][6]

The adoption of the line array has completely rewritten the economics and logistics of touring. Because the system focuses acoustic energy exclusively on the audience rather than wasting it on the ceiling or the sky, it requires significantly less amplifier power and fewer total speaker cabinets to achieve concert-level volumes. The result is a lighter, more efficient rig that fits into fewer trucks, takes less time to fly, and delivers a high-fidelity, studio-grade listening experience to 80,000-capacity venues.[2][6]
