How LambdaRank Bypasses Discontinuous Ranking Metrics by Scaling Pairwise Gradients

To train a machine learning model to rank a list of items, the system must first be able to sort them. That is the binding constraint of modern learning-to-rank architectures: before a model can learn from its mistakes, it must perform a full forward pass to generate a ranked list.

This requirement exists because the penalty for a bad prediction in a search engine depends entirely on where an item ultimately lands. A highly relevant document buried in the tenth position is a failure, but that failure can only be measured after the entire list has been sorted.[1]

This sorting bottleneck creates a fundamental mathematical paradox for machine learning. Standard optimization algorithms, like gradient descent, require smooth, continuous cost functions to calculate the trajectory toward the minimum error. They need a mathematical slope to slide down.

But sorting is inherently discontinuous. An item is either in position three or position four; there is no position three and a half. Because the rank positions are discrete integers, the resulting mathematical function resembles a staircase, which has no usable derivative.

The Discontinuous Metric Problem

The industry standard for evaluating the quality of search results is Normalized Discounted Cumulative Gain, or NDCG. This metric is designed to mirror human behavior, heavily rewarding models for placing highly relevant items at the absolute top of the page.[2]

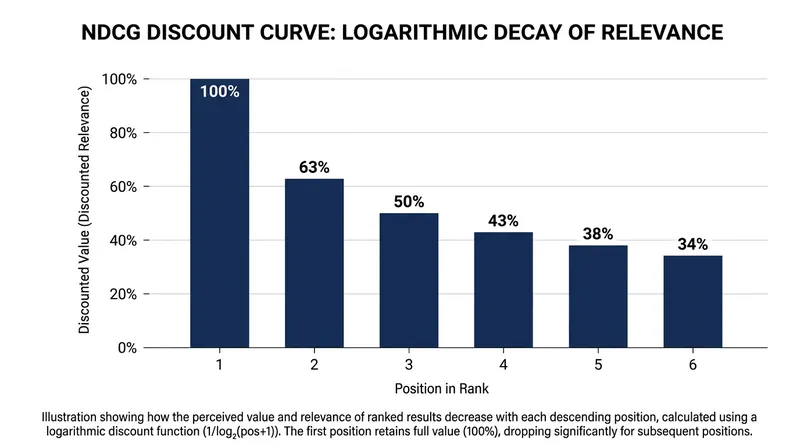

NDCG applies a logarithmic discount to items as they fall further down the ranking. A relevant document in the second position is worth significantly less than the same document in the first position, and its value approaches zero as it drops below the tenth spot.

Because NDCG relies entirely on those discrete integer ranks to calculate its discount, it suffers from the exact same mathematical limitation as the sorting function itself. It has no derivative, meaning a neural network cannot compute a gradient to optimize it directly.

For years, this forced engineers to optimize for proxy metrics. They trained models to predict raw relevance scores—treating the task as a standard regression problem—hoping that the sorted output would naturally align with the discontinuous NDCG metric.

This approach, known as pointwise ranking, failed to capture the relative trade-offs between documents. The model was trying to guess an absolute score for a single document in isolation, completely blind to the fact that its only real job was to beat the document next to it.[5]

The RankNet Baseline

In 2005, researchers introduced RankNet, an algorithm that reframed the entire problem from predicting absolute scores to predicting pairwise preferences. Instead of looking at a single document, RankNet looked at two documents simultaneously.[1]

RankNet asked a mathematically simpler question: between document A and document B, which one should be ranked higher? By breaking the list down into pairs, the algorithm bypassed the need to evaluate the entire sorted list at once.[5]

The breakthrough of RankNet was its use of a smooth logistic loss function on the difference between the two documents' scores. This restored the continuous gradients required for neural network training, allowing the model to learn via standard backpropagation.[1]

However, RankNet suffered from a critical blind spot: it treated all sorting errors equally. Swapping the first and second results incurred the exact same mathematical penalty as swapping the 99th and 100th results, because the pairwise loss function had no concept of list position.

This flat penalty structure directly contradicted the core philosophy of NDCG. A search engine user cares deeply about the difference between position one and position two, but they rarely click past the first page to notice a mistake at position 99.

The LambdaRank Breakthrough

In 2006, a team led by Chris Burges at Microsoft Research published a paper that introduced LambdaRank, proposing a deceptively simple mathematical heuristic to bridge the gap between pairwise learning and listwise metrics.

Instead of trying to smooth out the discontinuous NDCG function to make it differentiable, the researchers decided to modify the RankNet gradients directly. They shifted the optimization target from the cost function itself to the physical gradient updates.[1]

The team took the smooth pairwise logistic gradient from RankNet and simply multiplied it by the exact change in NDCG that would occur if those two specific documents swapped places in the sorted list.

This multiplier acts as a dynamic force vector, which the researchers dubbed a lambda. It physically pushes relevant documents up the list and irrelevant documents down, with the force scaled by the severity of the mistake.

The magnitude of the push is directly proportional to how much the swap improves the overall list metric. A swap at the top of the list generates a massive gradient update, while a swap at the bottom generates a mathematical whisper.[1]

Burges' team proved empirically that this heuristic bypassed the discontinuous sort entirely. By scaling the gradients, the model successfully found the local optimum for NDCG, achieving up to 87 percent of ideal ranking performance in early tests without ever differentiating the metric itself.

From Neural Nets to Trees

While LambdaRank was originally instantiated using neural networks, the gradient scaling technique proved to be entirely agnostic to the underlying model architecture. The NDCG multiplier was a mathematical property of the pairs, not the network.[1]

In 2010, the algorithm evolved into LambdaMART, which stripped out the neural network entirely and replaced it with Multiple Additive Regression Trees, a form of gradient boosting.

Gradient boosted decision trees are exceptionally efficient at handling the dense, tabular data typical of search engine features. They are faster to train, easier to interpret, and significantly less prone to overfitting than their neural network predecessors.

An ensemble of LambdaMART rankers famously won Track 1 of the 2010 Yahoo! Learning to Rank Challenge. The system evaluated queries against datasets containing 50 documents per query, utilizing five distinct levels of relevance ranging from zero to four.

The transition to decision trees demonstrated that the NDCG multiplier was the true algorithmic breakthrough. The neural architecture it was initially paired with was merely a vehicle for delivering the pairwise gradient updates.[1]

Modern Implementations and Limitations

Today, this exact mathematical operation is hardcoded into the world's most widely used gradient boosting libraries. While tech companies frequently market their search ranking as AI-driven semantic understanding, the mechanical reality is often much simpler.

Beneath the marketing hype, the core ranking engine in many production systems is not a sentient neural network reading text. It is frequently just this exact gradient multiplier running on dense tabular data to minimize pairwise sorting errors.[4]

In XGBoost, the default ranking objective is rank:ndcg, which implements the LambdaMART algorithm under the hood. The library requires an additional array specifying the query group for each input sample to construct the necessary pairs.[2]

Similarly, LightGBM features a native lambdarank objective. The framework applies the NDCG multiplier to integer-encoded labels, allowing engineers to set custom gain weights for different relevance tiers directly within the configuration parameters.[3]

Despite its ubiquity, the pairwise approach scales poorly with massive document lists. Because the algorithm must evaluate every pair of differentially labeled items within a query, the computational cost grows quadratically as the list expands.

To mitigate this quadratic explosion, modern implementations often truncate the metric calculation. By optimizing for a cutoff like NDCG@10, the algorithm ignores the mathematical noise of comparing documents buried deep in the results, focusing its compute entirely on the top of the page.[2]
