How Atmospheric Reentry Plasma Blocks Radio Frequencies During Spacecraft Descent

Communications engineers demand continuous telemetry during atmospheric reentry, arguing that losing contact with a spacecraft at its most vulnerable moment is an unacceptable risk. Aerodynamicists counter that the blunt-body shapes required to survive hypersonic heating inherently generate the very plasma that severs those radio links.[2][4]

This is not a failure of equipment, but a fundamental clash of physical requirements. A blunt heat shield creates a detached bow shock, compressing the atmosphere so violently that it strips electrons from air molecules.[3]

The resulting envelope of ionized gas acts as a perfect electromagnetic shield. It absorbs and reflects radio waves, creating a period of absolute silence known as the reentry blackout.[1]

"You cannot optimize for both maximum aerodynamic drag and maximum electromagnetic transparency," notes a 2024 IEEE Transactions on Plasma Science review. The physics of hypersonic deceleration mandate the creation of a plasma sheath.[2]

For spacecraft returning from low Earth orbit, this silence typically lasts between four and ten minutes. The exact duration depends on the vehicle's velocity, its aerodynamic profile, and the specific frequencies used for communication.[4]

The Mechanics of Hypersonic Compression

When a capsule hits the upper atmosphere at 7.8 kilometers per second, it does not simply rub against the air. It moves faster than the air can get out of the way, creating a massive pressure wave.[3]

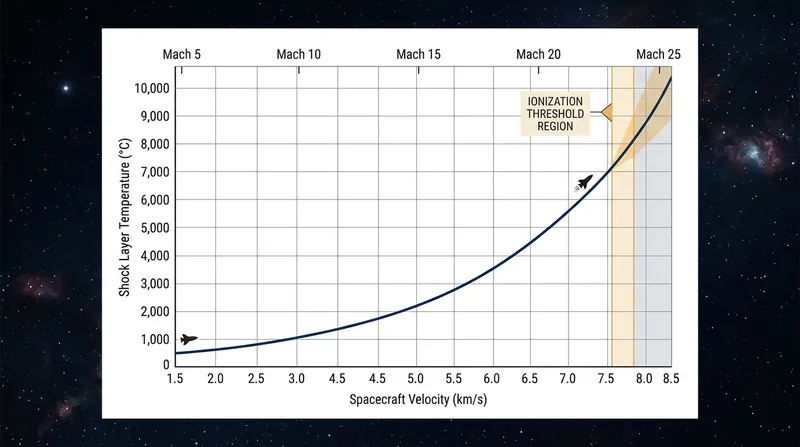

This shock wave violently compresses the nitrogen and oxygen molecules in front of the vehicle. The mechanical energy of this compression converts instantly into thermal energy, raising temperatures beyond 2,500 degrees Celsius.[3][4]

At these extreme temperatures, the chemical bonds holding diatomic oxygen and nitrogen together begin to break apart. This dissociation absorbs some heat, but the remaining thermal energy is high enough to strip electrons entirely from their parent atoms.[3]

This process, known as thermal ionization, transforms the neutral gas into a plasma. The spacecraft becomes encased in a glowing sheath of free electrons and positively charged ions, extending outward from the heat shield.[1][3]

The density of these free electrons dictates the electromagnetic properties of the sheath. As the vehicle descends into thicker atmosphere, the compression increases, and the electron density spikes dramatically.[2]

Carrier Waves and Electron Density

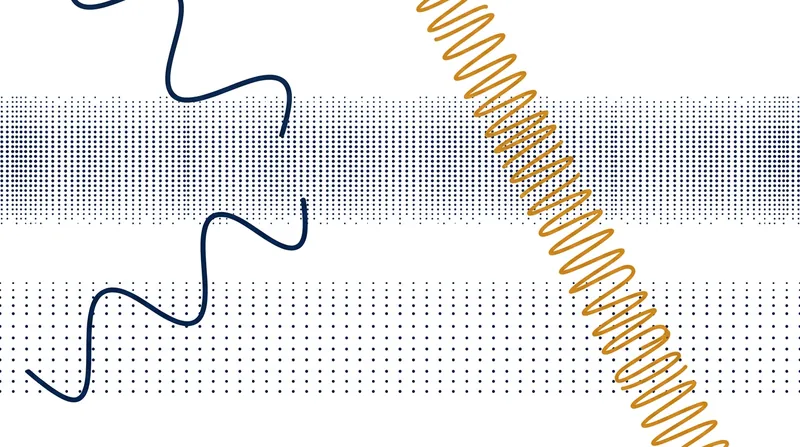

Every plasma has a characteristic natural frequency, determined entirely by the number of free electrons per cubic centimeter. If a radio wave's frequency is lower than this plasma frequency, the electrons can move fast enough to cancel out the electromagnetic field.[1]

When the carrier wave is canceled, the signal is entirely reflected or absorbed by the sheath. The radio transmission never reaches the spacecraft's antennas, and telemetry from the vehicle cannot escape into space.

"The plasma sheath acts as a high-pass filter," explains a 1998 NASA Technical Memorandum on reentry communications. "Only frequencies exceeding the peak plasma frequency can penetrate the shock layer without severe attenuation."[1]

During a standard low Earth orbit reentry, the electron density in the shock layer routinely exceeds 10^13 electrons per cubic centimeter. This concentration generates a plasma frequency of roughly 10 to 15 gigahertz.[2][3]

Standard S-band communications operate at 2.2 gigahertz, well below this threshold. Consequently, the S-band signal is completely blocked the moment the plasma density reaches the critical level, initiating the blackout.

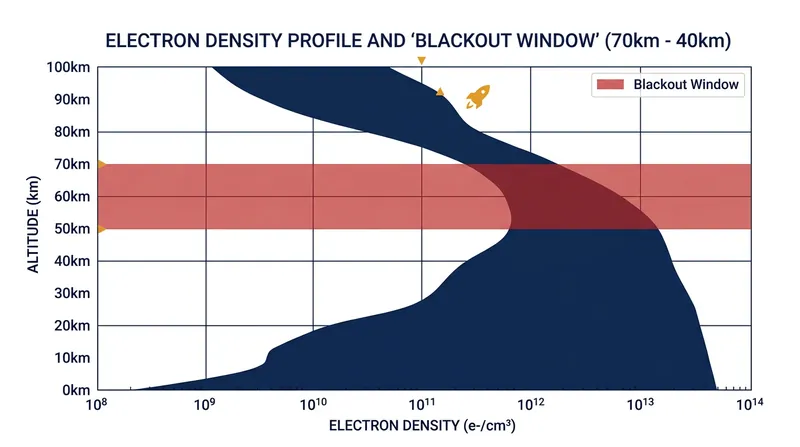

The Critical Altitude Window

The blackout does not begin the moment the spacecraft touches the atmosphere. At 100 kilometers above the surface, the air is too thin to generate a sufficiently dense plasma, allowing signals to pass freely.[4]

As the vehicle descends to approximately 70 kilometers, the atmospheric density increases enough to push the plasma frequency above the S-band carrier frequency. This marks the beginning of the radio blackout for most standard telemetry systems.[1][2]

The silence persists through the period of maximum dynamic pressure and peak heating. The vehicle must shed the majority of its orbital velocity during this phase, relying entirely on automated onboard guidance.[3][4]

Around 40 kilometers in altitude, the vehicle has slowed significantly, dropping below Mach 15. The shock wave weakens, temperatures fall, and the plasma begins to recombine into neutral gas.[3]

Once the electron density drops below the critical threshold, the plasma frequency falls below 2.2 gigahertz. The S-band link is suddenly restored, ending the blackout and allowing mission control to confirm the vehicle's survival.[1]

Bypassing the Plasma Shield

Aerospace companies frequently market new telemetry systems as blackout-proof, but the physical limits of the plasma sheath remain absolute. True mitigation requires either changing the frequency or altering the plasma itself.[2][5]

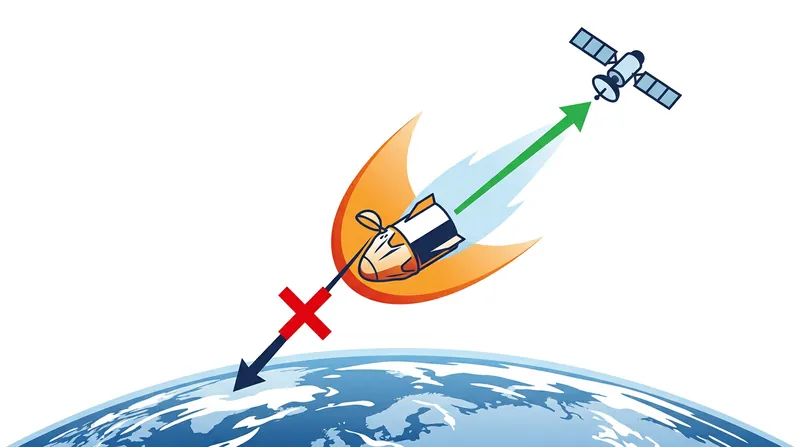

Shifting to higher frequencies is the most straightforward approach. The Space Shuttle utilized the Ku-band at 15 gigahertz, communicating upward through a thinner section of the plasma wake to the Tracking and Data Relay Satellite System.[1]

This approach successfully maintained contact during much of the Shuttle's descent, but it required a massive, steerable dish antenna. Modern capsules, with their constrained internal volumes, struggle to accommodate the hardware necessary for high-bandwidth Ku-band links.[4]

Another proposed solution involves injecting electrophilic liquids, such as water or fluorocarbons, directly into the flow field. These fluids absorb free electrons, temporarily lowering the plasma frequency around the antennas.[2]

"Fluid injection works in wind tunnels, but the mass penalty for carrying hundreds of kilograms of coolant is prohibitive for orbital missions," notes the 2024 IEEE review. The physics work, but the engineering trade-offs rarely justify the cost.[2]

Magnetic Windows and Optical Links

The most exotic mitigation strategy involves applying a strong magnetic field around the spacecraft's antennas. A static magnetic field forces the free electrons to spiral along the field lines, creating a window that allows specific radio waves to pass.[1][2]

While theoretically sound, generating a magnetic field strong enough to alter the plasma sheath requires heavy superconducting electromagnets. No operational spacecraft has ever flown a magnetic window system due to these severe weight constraints.[2][4]

Optical communications using lasers offer a more plausible future solution. Operating at hundreds of terahertz, laser links easily exceed the plasma frequency, passing through the shock layer without electromagnetic attenuation.

However, optical links face their own challenges during reentry. The extreme heat and physical ablation of the heat shield can obscure the optical windows, scattering the laser light before it reaches the receiver.[3]

Until these material challenges are solved, the radio blackout remains an unavoidable phase of spaceflight. Mission controllers must continue to rely on automated systems and the physics of blunt-body aerodynamics to bring crews home safely.[4][5]
