How KV Caching Solves the LLM Latency Bottleneck

Hardware vendors and benchmark leaderboards frequently claim that raw GPU compute speed—measured in teraFLOPS—is the primary bottleneck for generating text faster. But profiling data from production inference servers contradicts this assumption. For modern large language models, memory bandwidth dominates generation time, not raw math. The true speed limit is the time spent fetching previously computed keys and values from a mechanism called the KV cache, which prevents the model from recalculating the entire conversation history for every single word it writes.[1][4][5]

As language models scale to support context windows of 128,000 tokens or more, the memory required to store this conversation history grows linearly, often exceeding the size of the model itself. When generating each token, modern architectures perform relatively lightweight matrix-vector multiplications, but these require repeatedly loading massive amounts of data from memory. This dynamic transforms the fundamental challenge of artificial intelligence deployment from a compute problem into a memory capacity problem.[1][3][4][5]

To understand why this cache exists, one must look at how the attention mechanism operates. When an AI model generates a sentence, it predicts one token at a time in an autoregressive loop. For each new token, it must calculate an attention score against every previous token to understand the context and maintain coherence.[1][4]

Without a caching mechanism, generating a 1,000-word response would require the model to recompute the mathematical relationships for the first word 1,000 times, the second word 999 times, and so on. This redundant computation scales quadratically, which would make real-time chatbots and agentic workflows impossibly slow and prohibitively expensive.[1]

The KV cache solves this by acting as a dedicated memory bank. Once a token's Key and Value vectors are computed in a layer, they are stored in GPU memory instead of being discarded. When the model needs to generate the next token, it simply retrieves these pre-computed vectors, appending only the newest token's calculations to the cache.[1][2]

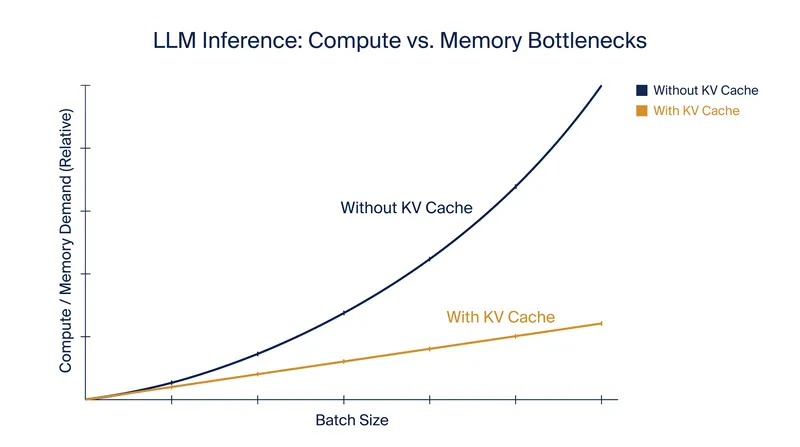

This optimization successfully transforms text generation from a quadratic computational problem into a linear one. However, it trades a compute bottleneck for a memory capacity bottleneck. The sheer volume of data generated by the KV cache is staggering, particularly for enterprise-scale deployments.[1][2][4]

For a 70-billion parameter model like Llama 3.3, each token in the context window requires approximately 0.32 megabytes of KV cache storage at 16-bit precision. A single session with 128,000 tokens of context consumes roughly 40 gigabytes of KV cache storage.[1]

In a production environment with 100 concurrent users, each submitting a 32,000-token document, the KV cache alone consumes roughly one terabyte of VRAM. This far exceeds the 80-gigabyte capacity of a single high-end H100 GPU, requiring massive server clusters simply to hold the conversation history, even if the compute processors sit idle.[2][5]

The inefficiency of early implementations compounded this issue. As GMI Cloud engineers noted in August 2026, "The KV cache is the largest variable cost in LLM inference that most teams do not explicitly manage." Traditional inference systems wasted between 60% and 80% of allocated KV cache memory through fragmentation and over-allocation. Because memory was reserved in contiguous blocks, varying request lengths left massive gaps of unusable VRAM, artificially limiting context lengths and throughput.[1][6]

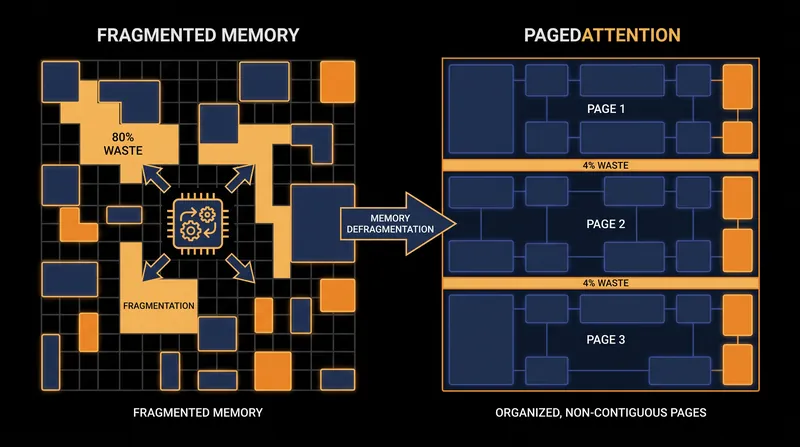

To mitigate this, engineers have developed techniques like PagedAttention, which partitions the cache into non-contiguous blocks, slashing memory waste to under 4%. Another crucial optimization is prefix caching, which stores the KV cache for shared system prompts or retrieved documents once and reuses it across multiple users, reducing effective input costs by up to 90% for shared context.[1][5][6]

Despite these software optimizations, the physical limits of hardware remain. A 70-billion parameter model quantized to 4-bit precision requires roughly 35 gigabytes of VRAM for its static weights. At an allocation rate of 0.32 megabytes per token, the KV cache overtakes the model weights as the primary memory consumer at exactly 112,000 tokens. Past this threshold, the model's memory footprint is entirely dominated by its own short-term memory.[1][3][7]

By 2026, as models push toward million-token context windows, the industry is shifting from pure compute optimization to sophisticated memory management. The next generation of inference hardware will likely be defined not by how many matrix multiplications it can perform per second, but by how efficiently it can route, compress, and retrieve the massive tables of keys and values that allow an artificial intelligence to maintain a coherent train of thought.[4][5]
