Why Ethernet Ports Survive Physical Abuse That Destroys USB-C

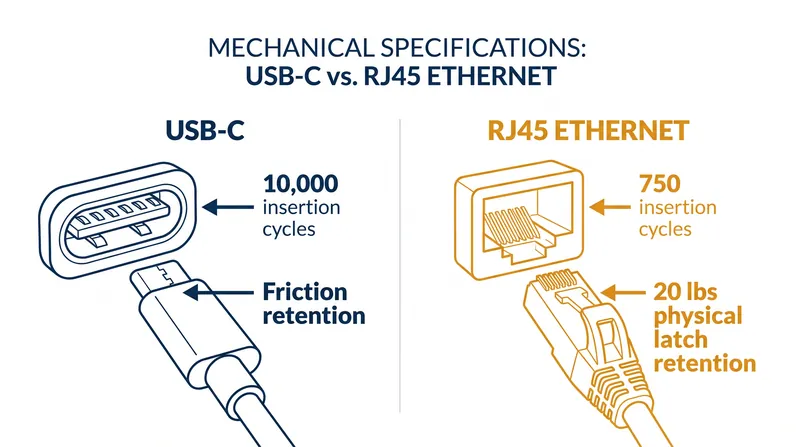

The tech industry's prevailing claim—championed by device manufacturers and standards bodies alike—is that USB-C is the ultimate, indestructible universal port, boasting a specification rating of 10,000 insertion cycles. But the evidence from repair desks and hardware engineers directly contradicts this when it comes to real-world abuse. While USB-C outlasts the classic RJ45 Ethernet port on paper (which is rated for a mere 750 to 2,000 cycles), Ethernet ports routinely survive yanks, trips, and sideways torque that permanently destroy USB-C connections.[1][2][7]

The discrepancy lies in how the two standards handle mechanical stress. The USB Type-C Cable and Connector Specification mandates that receptacles withstand 10,000 perfectly straight insertions and extractions. However, as peripheral manufacturer Satechi warns users, "pulling from the laptop can put sideways force on the connectors and damage them." The 10,000-cycle rating assumes a laboratory environment, not a living room where a charging cable might be tripped over or pulled at a sharp angle.[2][6]

USB-C relies entirely on internal friction springs and a fragile central tongue containing 24 microscopic pins within an 8.4mm by 2.6mm opening. When a USB-C cable is yanked sideways, the torque transfers directly to that central tongue and the solder joints connecting the port to the motherboard. Because the port is shallow, the metal connector acts as a lever against the internal circuitry.[2][7]

Dell's engineering support documentation notes that this sideways force leads to cracked port housings and broken internal solder joints, citing "intermittent functionality when a USB-C cable moves as a potential sign of cable or connection damage." A damaged USB-C connection often requires a complete, expensive motherboard replacement because the port is surface-mounted directly to the main board.[5][7]

Ethernet (RJ45) ports, by contrast, are designed to isolate the electrical contacts from physical strain. "It prevents all the force of yanking the cable from being concentrated at the very edge of the port," notes How-To Geek's Monica J. White, "all because the plug is braced by the walls of the jack on multiple sides." The RJ45 jack is a deep, rigid plastic housing that swallows the entire connector head.[1]

When an Ethernet cable is pulled sideways, the thick plastic walls of the plug press against the thick plastic walls of the receptacle. The eight electrical pins sit recessed deep inside, completely shielded from the mechanical load. The torque is transferred to the device's outer chassis rather than its delicate internal printed circuit board.[1][3][4]

Furthermore, Ethernet relies on a physical locking mechanism rather than friction. The plastic retention latch on an RJ45 plug clicks into the receptacle, providing a mechanical hold that requires deliberate action to release. Industrial component specifications rate standard RJ45 jacks to withstand 20 pounds (9.07 kilograms) of direct retention force before failing.[3][7]

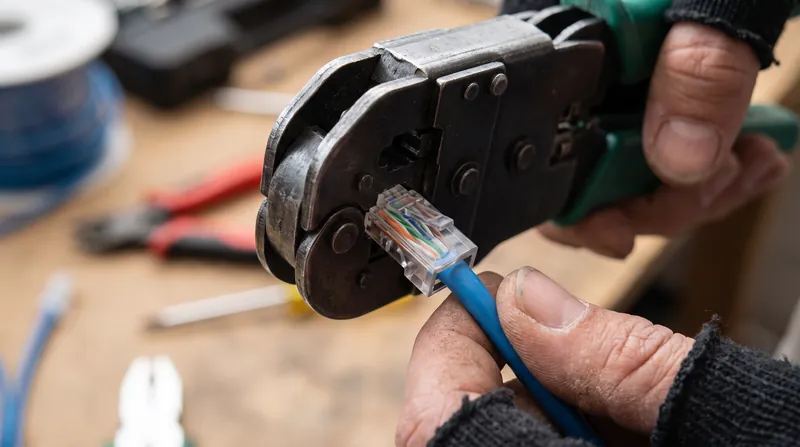

Network installers rely heavily on this mechanical isolation. When terminating cables, technicians perform a 4.5-kilogram pull test to verify conductor retention. If an Ethernet cable is tripped over with extreme force, the plastic latch will typically snap off the cheap, easily replaceable cable long before the rigid, PCB-mounted port on the router or motherboard suffers any damage.[4][7]

USB-C's design prioritizes slimness, reversibility, and convenience over this kind of brute-force survivability. While a broken RJ45 latch requires a 50-cent cable replacement or a quick re-crimping tool, a torque-damaged USB-C port is a catastrophic failure. Understanding this structural difference allows users to treat their USB-C cables with the straight-pull care they require, while relying on Ethernet for rugged, set-and-forget networking.[1][7]
