Decoding Hydrostatic Head and MVTR: How Two Ratings Dictate Waterproof Gear Performance

A consumer standing in an outdoor gear shop looking at a $400 rain shell makes a definitive choice based on two printed metrics: the Hydrostatic Head (HH) and the Moisture Vapor Transmission Rate (MVTR). They can either optimize for blocking external precipitation or venting internal sweat, and they must lock in that specific fabric compromise before their next alpine departure.[6]

These two figures dictate exactly how a membrane will perform under physical stress. The first number, measured in millimeters, defines the fabric's absolute resistance to water penetration. The second, measured in grams per square meter over 24 hours, quantifies how efficiently it expels moisture vapor.[3]

The baseline for waterproof testing is governed by the International Organization for Standardization through ISO 811, a protocol established in 1981. The test clamps a fabric sample under a vertical column of water, steadily increasing the water pressure until the material fails.[1]

According to testing equipment manufacturer Testex, the standard requires technicians to observe the fabric and record the exact pressure at which three separate drops of water penetrate the material. If the fabric withstands a 10-meter column of water before those three drops appear, it earns a 10,000mm rating.[5]

In practical application, a 10,000mm rating serves as the entry point for genuine waterproof garments. Trek and Mountain notes that while 10,000mm handles moderate rain, a heavy backpack's shoulder straps can press water through the membrane by exceeding that localized pressure. For sustained downpours or heavy pack loads, manufacturers push toward 20,000mm or higher.[3]

Blocking water is only half the engineering challenge; the fabric must also prevent the wearer from overheating. This is where the Moisture Vapor Transmission Rate enters the equation, heavily reliant on the ASTM E96 testing standard outlined by the American National Standards Institute.[2]

The ASTM E96 protocol utilizes a desiccant or water method to measure vapor transfer. A fabric sample is sealed over a test dish containing water and placed in a controlled environmental chamber. Technicians weigh the assembly periodically over 24 hours to calculate the exact mass of moisture that successfully passed through the membrane.[2]

A rating of 10,000 g/m²/24h means the fabric allows 10,000 grams of vapor to escape a one-square-meter area in a day. British outdoor brand Rab emphasizes that breathability is critical because high-output activities generate significant sweat, which will condense on the inside of a completely sealed jacket and leave the wearer soaked regardless of the external weather.[4]

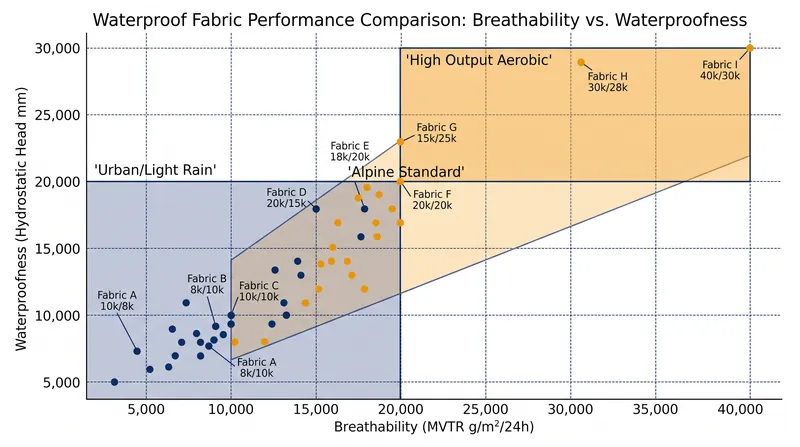

The tension between these two metrics defines modern fabric engineering. To increase the Hydrostatic Head, manufacturers must tighten the membrane's pore structure or thicken the polyurethane coating. However, doing so directly restricts the pathways available for moisture vapor to escape, lowering the MVTR.[6]

Premium alpine garments often target a 20k/20k specification—20,000mm of water resistance paired with 20,000 g/m²/24h of breathability. Achieving this requires expanded polytetrafluoroethylene (ePTFE) membranes or advanced electrospun polyurethanes that maintain microscopic pores large enough for vapor molecules but too small for liquid water droplets.[3]

The laboratory numbers carry inherent limitations when translated to a mountainside. The ISO 811 test applies static pressure in a climate-controlled room, which does not replicate the dynamic force of 50-mph wind-driven rain striking a jacket at an angle.[5]

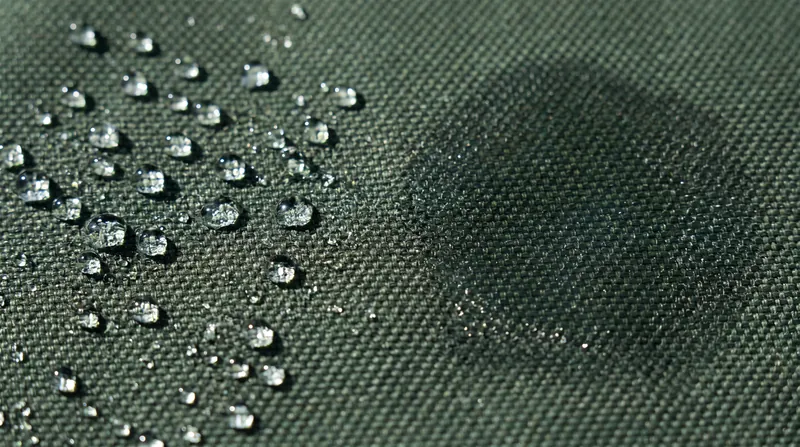

Similarly, the ASTM E96 breathability test assumes a clean membrane. While none of the technical standards or manufacturer guides cited in this review provide direct commentary from individual spokespeople, Rab's technical documentation points out that dirt, body oils, and smoke severely degrade a jacket's performance by masking the Durable Water Repellent (DWR) treatment on the face fabric. When the face fabric wets out, the moisture vapor can no longer escape, effectively dropping the MVTR to zero.[4]

For the buyer, matching the numbers to the anticipated output level prevents overspending on unnecessary specifications. A 10k/10k jacket provides sufficient protection for urban commuting or static camp activities where sweat production remains low.[6]

Conversely, a trail runner or ski mountaineer requires an MVTR of 30,000 g/m²/24h or higher to manage aerobic sweat, often accepting a lower 10,000mm waterproof rating to secure that breathability. The decision rests entirely on whether the primary threat is the storm outside or the condensation inside.[3]
